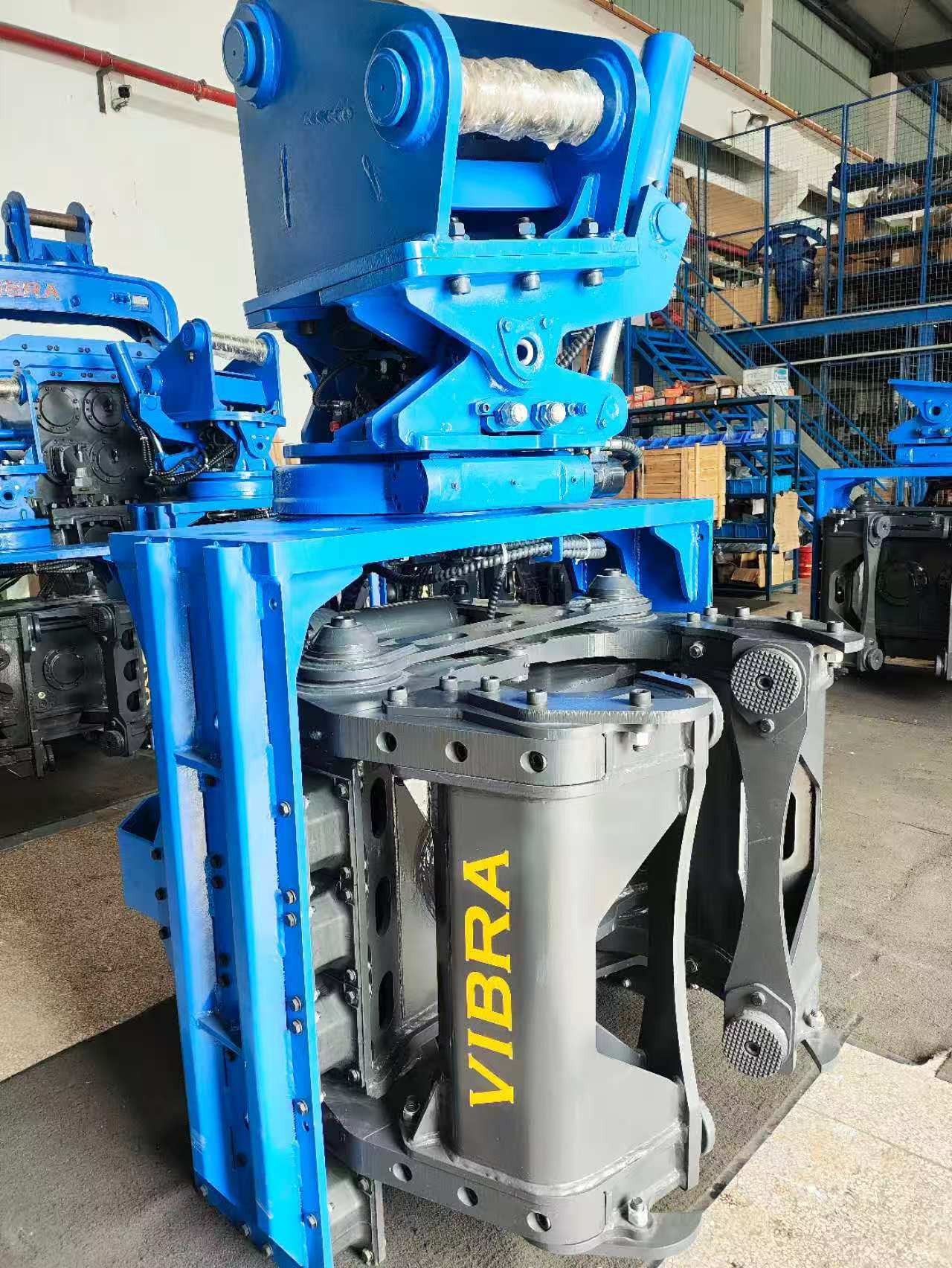

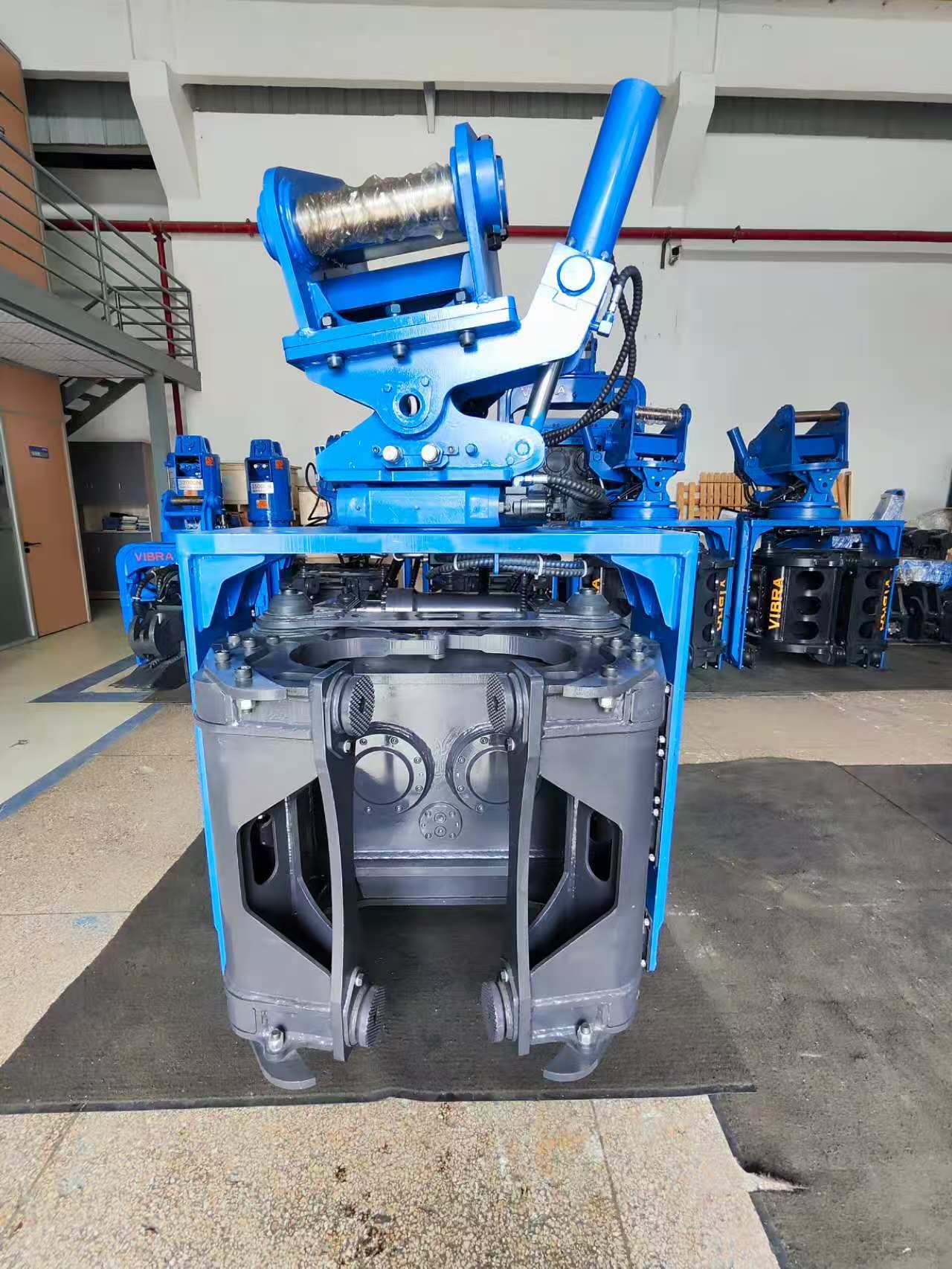

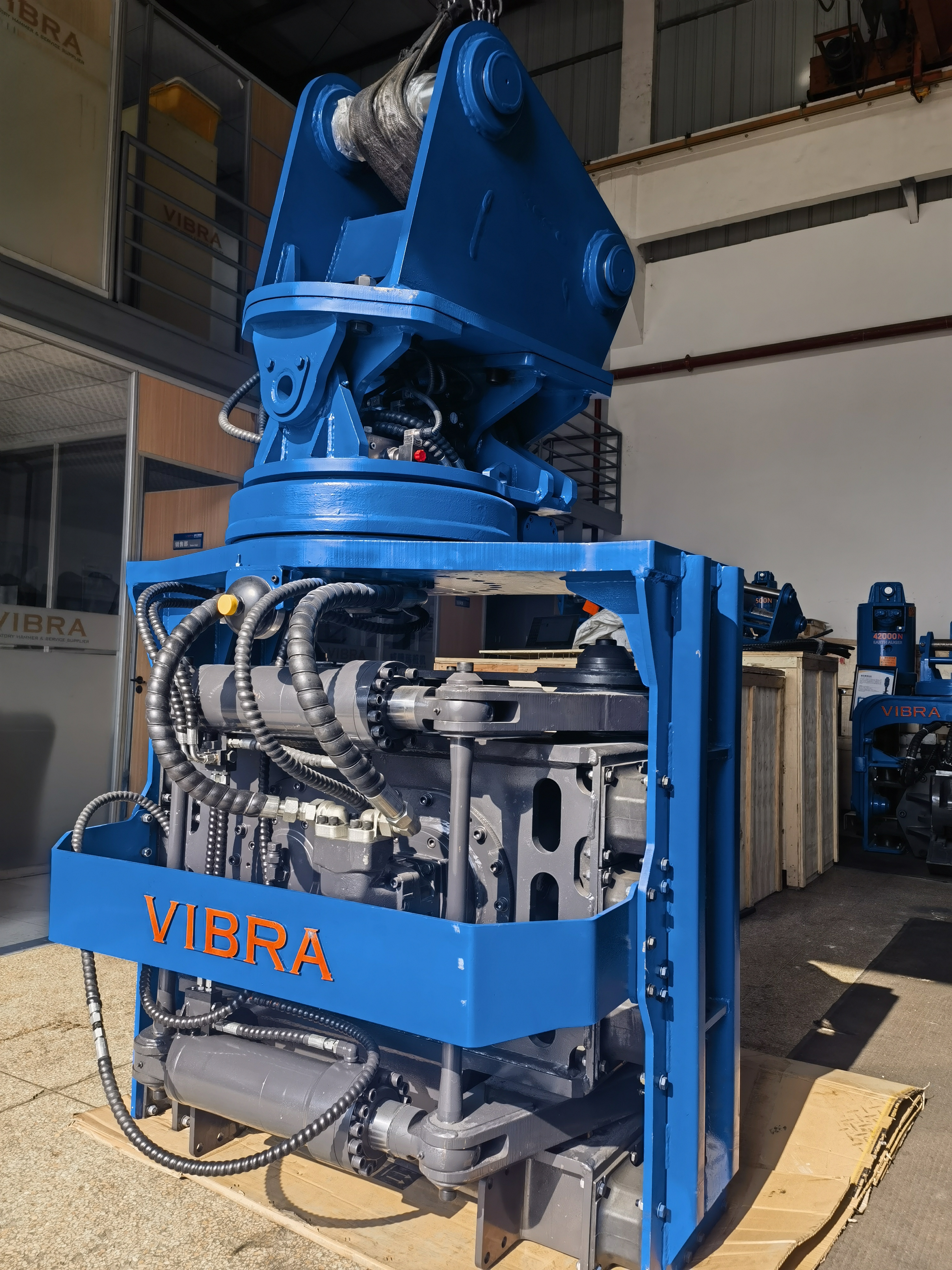

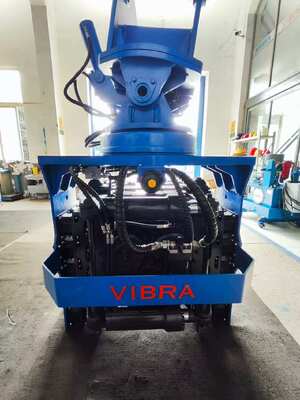

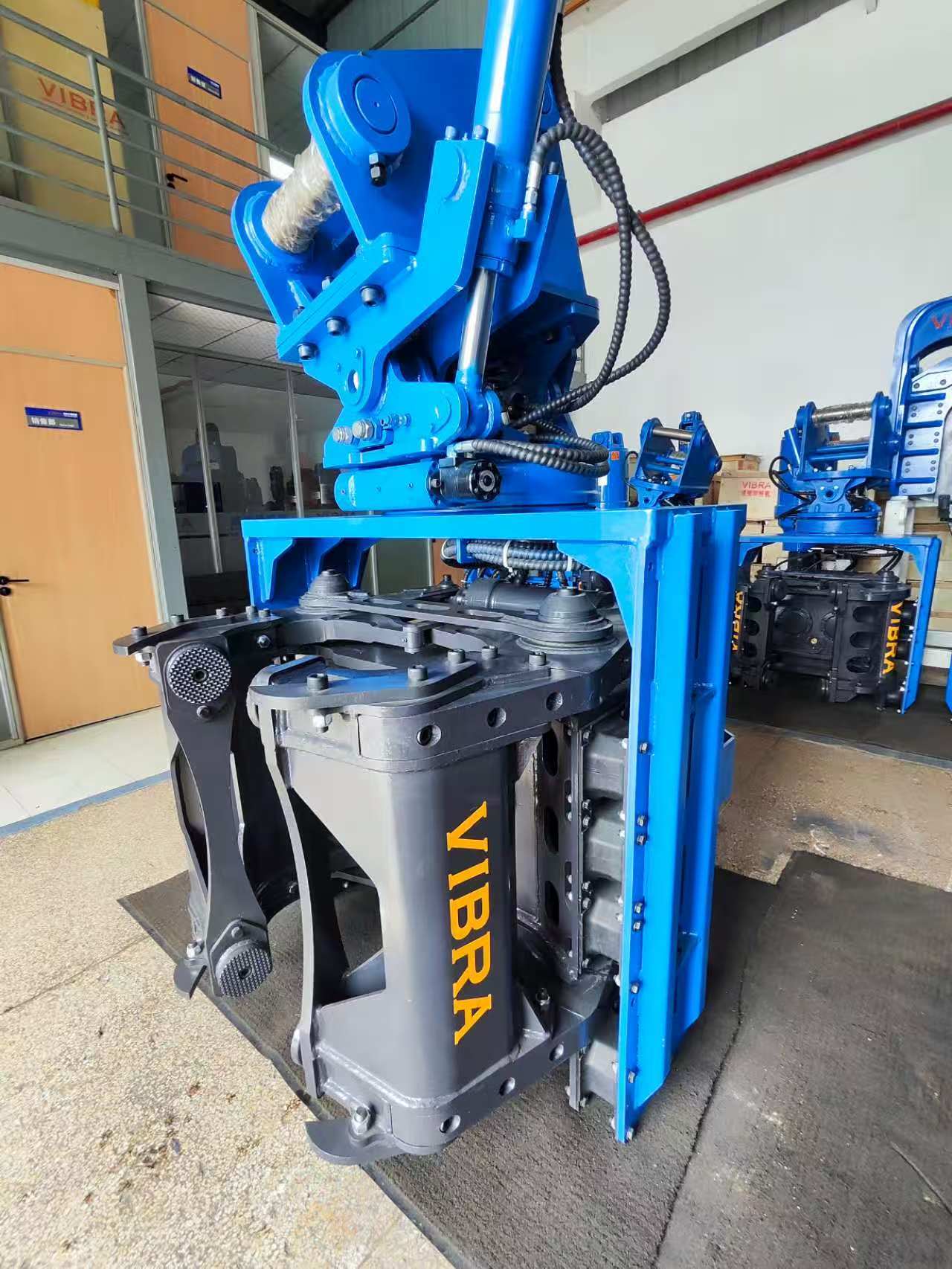

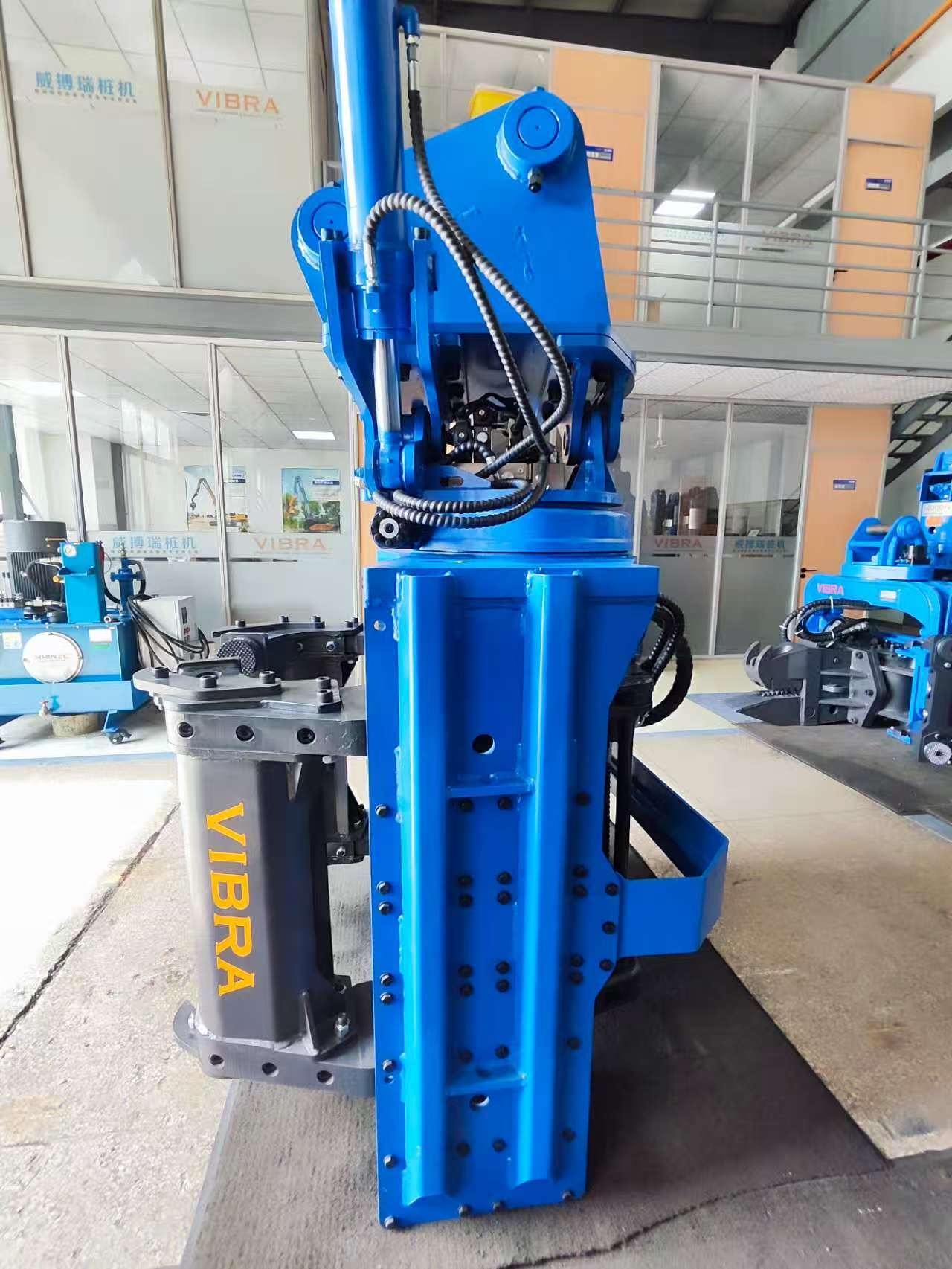

Heavy-Duty SV400 Hydraulic Side Grip Pile Driver for Infrastructure

The SV400 Side Grip Pile Driver represents the pinnacle of heavy-duty hydraulic vibratory hammer technology, engineered for large-scale foundation projects that demand exceptional power, reliability, and versatility. Designed for seamless integration with 32-40 ton standard excavators, this advanced piling system transforms your existing heavy machinery into a formidable foundation installation rig. The SV400 excels in challenging environments with low overhead clearance and restricted job sites, such as major bridge constructions, large industrial facilities, and urban infrastructure development. Equipped with a sophisticated dual-clamp system offering 360-degree continuous rotation and bidirectional side tilt, it provides complete mastery over pile handling, positioning, driving, and extraction without requiring auxiliary cranes or support equipment.

The SV400 features an advanced high-capacity dual-clamp mechanism, combining a powerful side clamp and a robust bottom clamp to secure even the heaviest piles with absolute certainty. This design is essential for maintaining precision and operational safety in low-headroom conditions where conventional piling leaders cannot function. The machine incorporates a heavy-duty multi-function fixture system with a rapidly replaceable standard clamp seat interface, enabling quick adaptation to various pile profiles including large steel sheet piles, heavy H-shaped steel beams, and substantial circular pipe piles. Its direct excavator-mount configuration ensures straightforward modification, significantly reducing mobilization time and capital investment compared to dedicated large piling rigs. The reinforced heavy-gauge steel frame and high-displacement hydraulic motor ensure exceptional durability under continuous heavy-duty operation in the most demanding conditions.

• Superior Low Clearance Heavy Lifting: Engineered to deliver maximum power in spaces with restricted vertical height, making it the definitive choice for major indoor industrial projects, tunnel construction, and bridge rehabilitation where overhead space is at a premium.
• Complete Operational Precision: The combination of 360° continuous rotation and ±30° side tilt allows for micrometer-precise pile alignment from any angle, dramatically reducing excavator repositioning and maximizing overall site productivity.
• Exceptional High-Capacity Clamping Power: With a formidable side clamp force of 465 kN and a bottom clamp force of 520 kN, the SV400 securely grips the heaviest and most oversized piles, ensuring optimal vibration transmission and preventing any slippage during both high-force driving and extraction operations.
• Ultimate Pile Versatility: Handles an extensive range of pile types including extra-wide steel sheet piles, heavy H-beams, and large-diameter pipe piles, maximizing equipment ROI across diverse large-scale projects.
• High-Frequency Heavy-Duty Performance: Delivers a powerful centrifugal force of 656 kN with an extended variable frequency range up to 5000 rpm, allowing superior adaptation to varied soil conditions from soft alluvial deposits to dense, compacted glacial tills and rocky soils.
• Seamless Heavy Excavator Integration: Designed for rapid attachment to 32-40 ton excavators, utilizing the host machine's enhanced hydraulic system for simplified operation, reduced maintenance, and maximum reliability.

The SV400 is strategically positioned for major contractors in Southeast Asia, India, and Russia who require uncompromising power combined with operational flexibility. In Southeast Asia, it is the preferred solution for large-scale port development, deep foundation works for high-rise buildings, and major river crossing infrastructure. For the Indian market, where mega-infrastructure projects are rapidly transforming the landscape, the SV400 excels in major bridge foundations, metro rail viaducts, and large industrial complex construction. In Russia, where extreme geological conditions including permafrost and dense glacial deposits are common, the high centrifugal force and extended frequency range of the SV400 make it exceptionally adaptable to the most challenging ground conditions, while its low-clearance capability proves invaluable for major industrial facility maintenance and expansion projects in urban environments.
