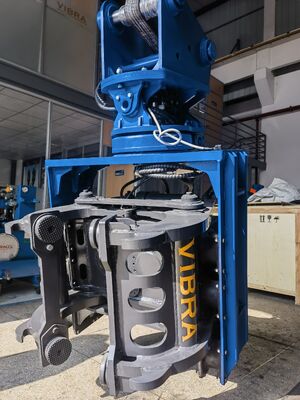

SV200 Hydraulic Side Grip Pile Driver for Excavators 20-25 Ton

The SV200 Side Grip Pile Driver represents the pinnacle of efficiency for foundation construction in restricted environments. As a specialized form of hydraulic vibratory hammer, this model is engineered to transform a standard 20-25 ton excavator into a high-performance piling rig. Designed specifically to overcome the challenges of low clearance and confined spaces common in infrastructure projects, the SV200 integrates bidirectional side tilt and 360-degree continuous rotation to deliver unparalleled versatility. Whether you are driving steel sheet piles, H-beams, or pipe piles, this unit offers a seamless, one-machine solution for clamping, positioning, driving, and extraction.

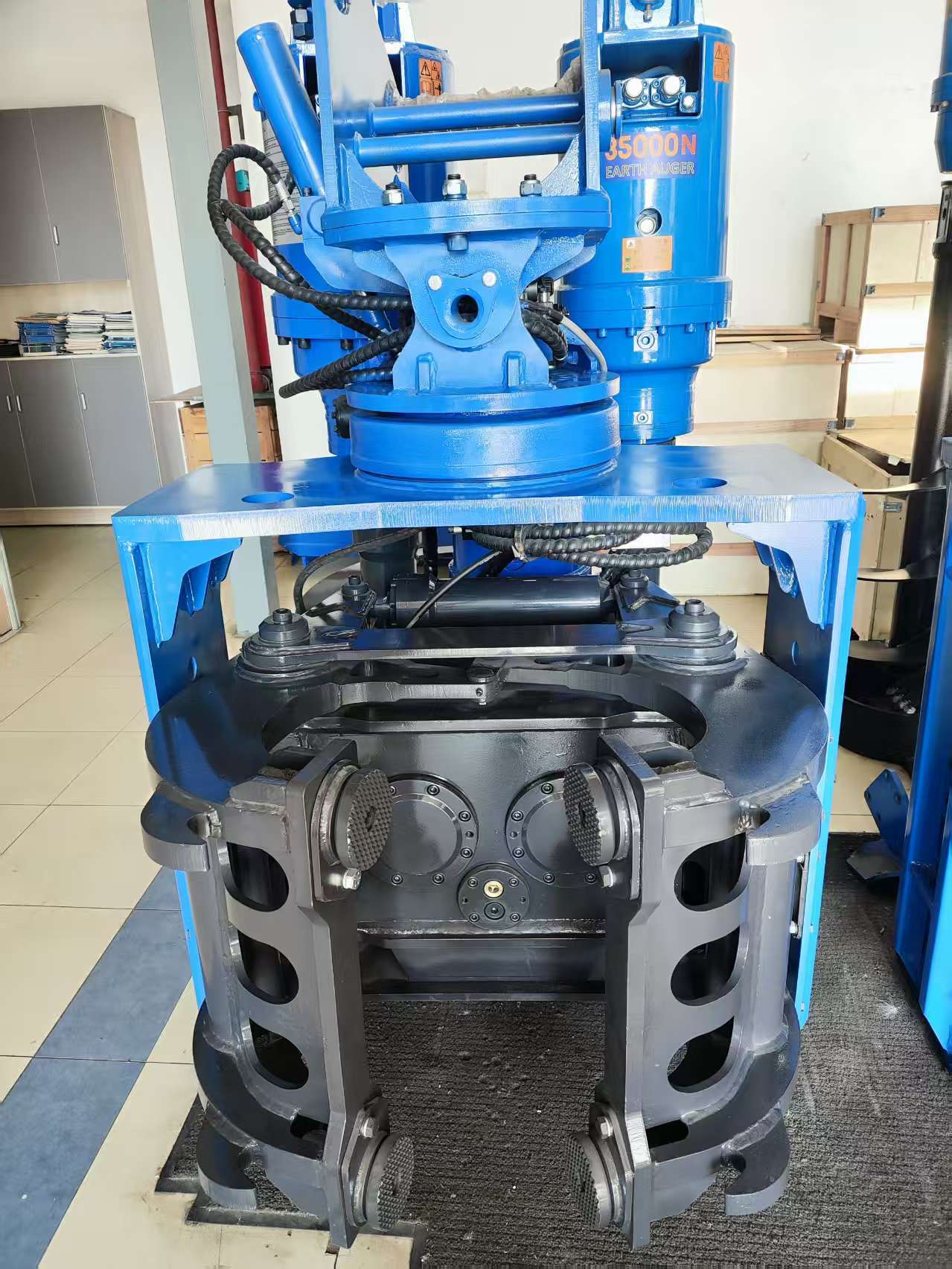

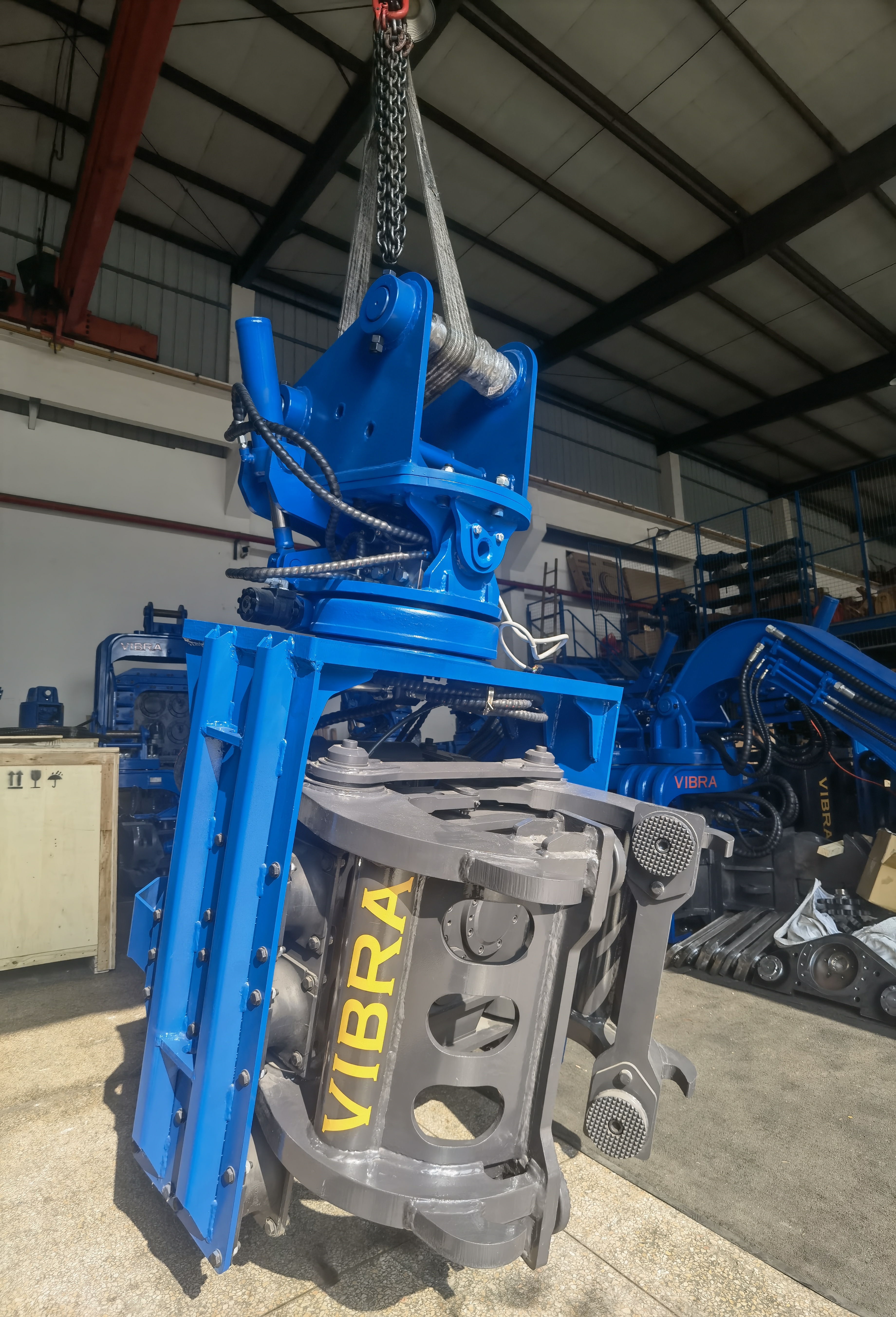

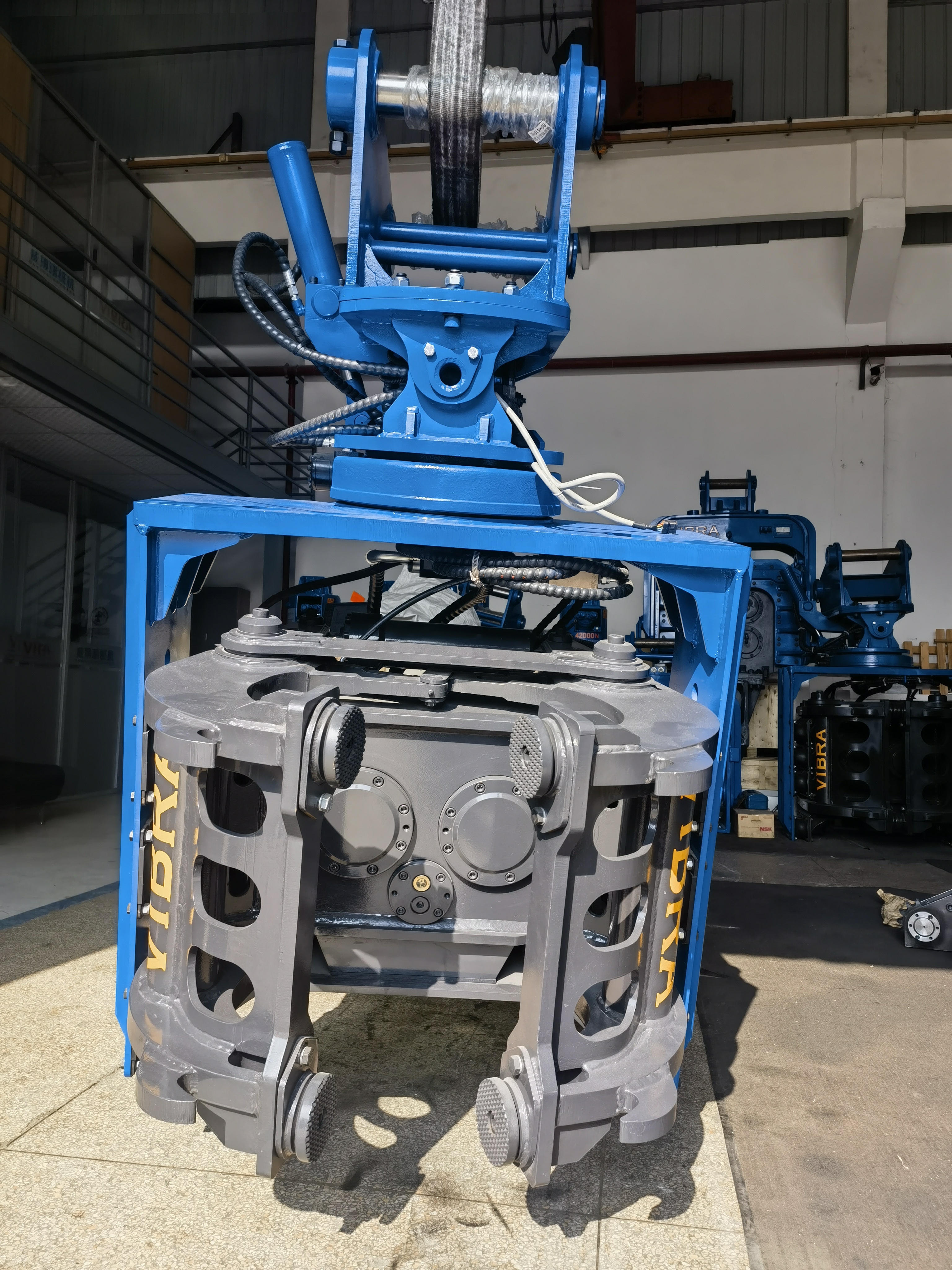

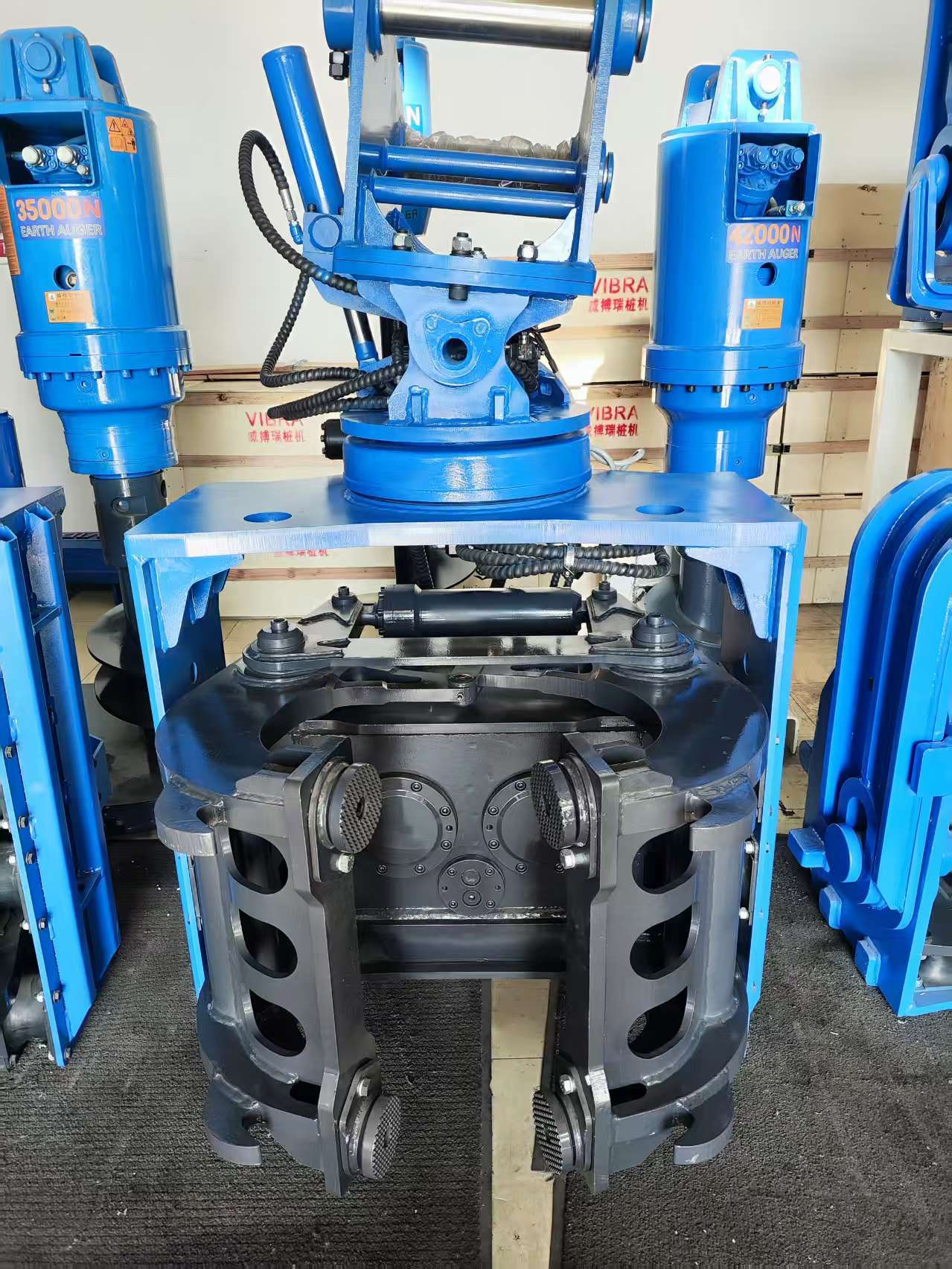

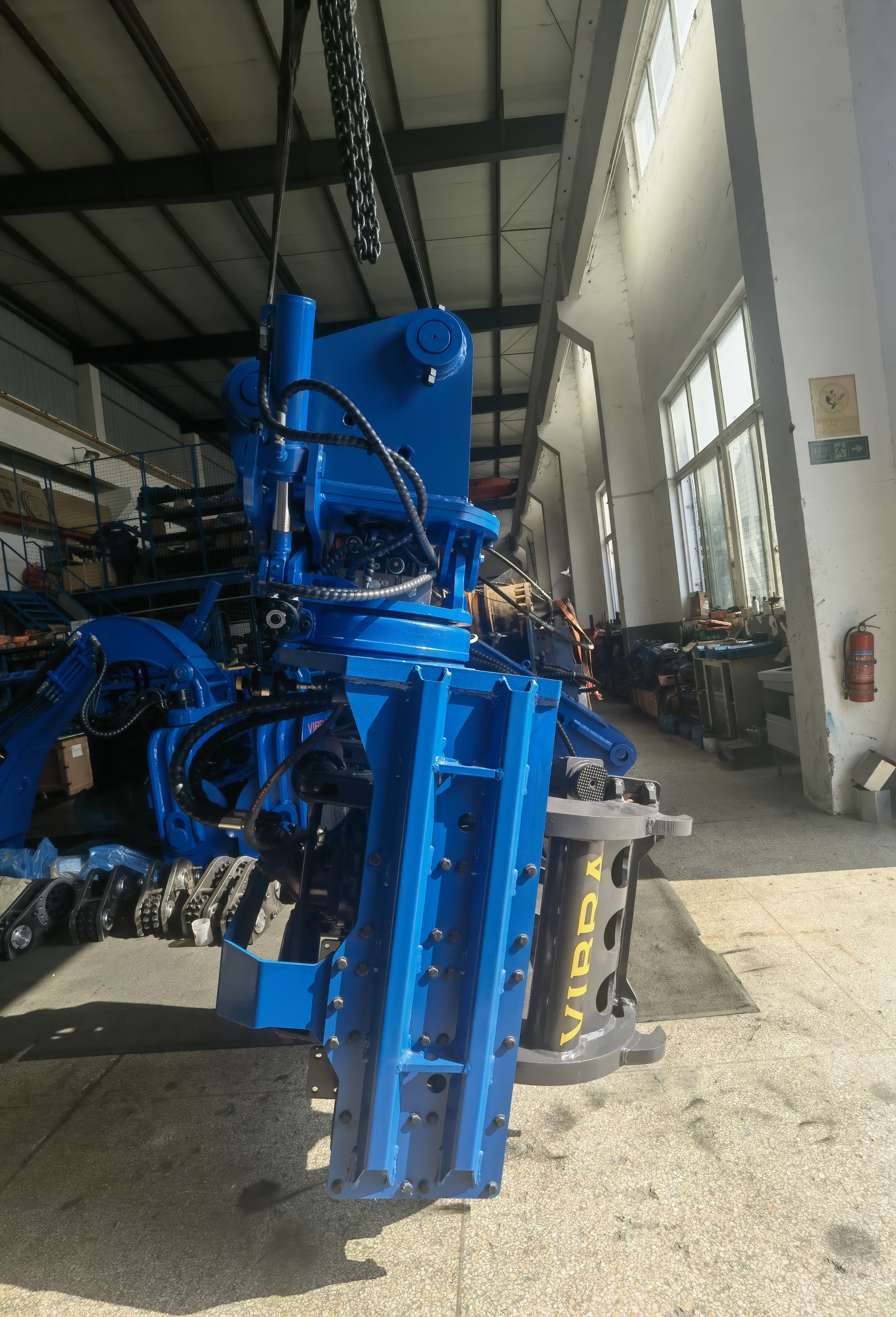

The defining characteristic of the SV200 is its dual-clamp system. It utilizes both a Side Clamp and a Bottom Clamp to secure piles firmly, allowing for precise manipulation even when overhead space is limited. This design eliminates the need for auxiliary cranes or leaders, drastically reducing equipment logistics on site. The robust fixture system features a replaceable standard clamp seat interface, allowing operators to switch between different pile types quickly. Furthermore, its direct mounting compatibility with standard excavators (20-25 ton class) ensures that modification and installation are minimal, reducing downtime and capital expenditure.

• Low Clearance Operation: Perfect for indoor factory renovations, bridge underpasses, and tunnel construction where traditional rigs cannot operate.
• 360° Continuous Rotation: Provides absolute freedom to position piles at any angle without moving the excavator base, enhancing safety and speed.
• High Clamping Force: With a side clamp force of 335 kN and a bottom clamp force of 385 kN, the SV200 ensures a firm grip on heavy materials, preventing slippage during high-frequency vibration.
• Versatility: Handles Steel Sheet Piles, H-Shaped Steel, and Circular Pipe Piles with equal efficiency, making it a multi-purpose investment for contractors.
• Excavator Integration: Utilizes the host machine's existing hydraulic system, simplifying maintenance and operation.

• Unit Weight (Incl. Connector & Clamp): 2280 kg
• Eccentric Moment: 4.6 kgm
• Centrifugal Force: 310 kN
• Frequency Range: 2300-3000 rpm
• Side Clamp Force: 335 kN
• Bottom Clamp Force: 385 kN
• System Operating Pressure: 32 Mpa
• System Operating Flow: 170-230 L/min
• Rotation / Tilt Angle: 360° / ±30°
• Dimensions (LxWxH): 1220 x 1260 x 2150 mm
• Applicable Excavator: 20-25 Ton

This model is ideally suited for the rapidly growing infrastructure sectors of Southeast Asia, India, and Russia. In东南亚 (Southeast Asia), the compact size is perfect for urban infrastructure and riverine projects. In India, it excels in railway and bridge construction where space is often restricted. For the Russian market, the robust hydraulic system and powerful vibration are well-suited for varied geological conditions, including frozen ground and dense soils.
