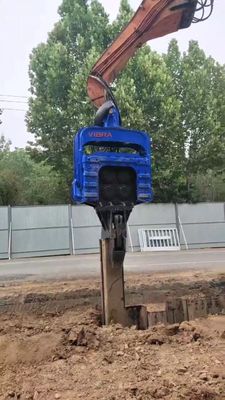

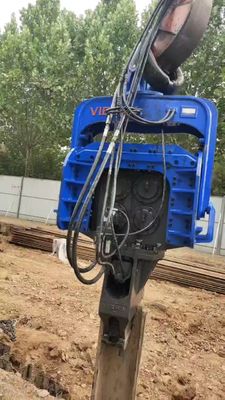

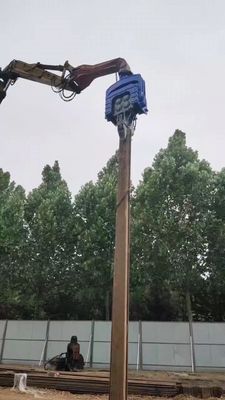

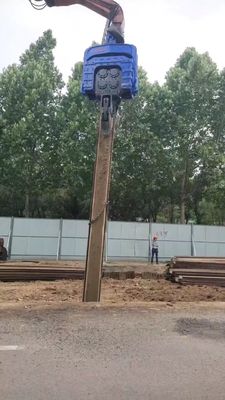

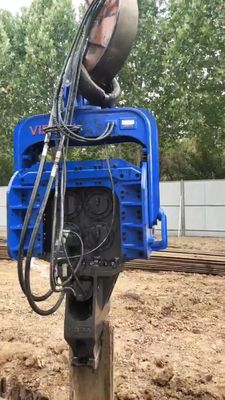

FV-500 Four Eccentric Pile Driver | 759 kN Force | 48-52 Ton Excavator

Product: FV-500 Four Eccentric Hydraulic Vibratory Pile Driver

The FV-500 Four Eccentric Pile Driver represents a significant leap forward in large-scale foundation construction technology. As the demand for larger steel sheet piles, steel casings, and PC hybrid piles continues to grow across global infrastructure markets, traditional pile driving equipment often falls short in terms of power, stability, and efficiency. The FV-500 is engineered to meet these challenges head-on.

This advanced hydraulic vibratory hammer features a four-eccentric design, which generates more balanced and powerful vibration forces compared to traditional two-eccentric models. Mounted on 48-52 ton excavators, the FV-500 delivers the muscle needed to drive piles up to 18 meters in length, making it the ideal choice for major infrastructure projects including deep foundations, port construction, bridge engineering, and heavy industrial developments.

The four-eccentric mechanism is the core innovation of the FV-500. By utilizing four synchronized eccentric shafts rotating in opposite directions, this design achieves:

• Greater Centrifugal Force: Delivers up to 759 kN of exciting force, enabling penetration through dense soils and challenging geological conditions.

• Enhanced Stability: The balanced force distribution minimizes lateral vibration, reducing stress on the excavator and improving operator comfort.

• Higher Efficiency: More effective energy transfer from the hammer to the pile means faster driving cycles and reduced fuel consumption.

The FV-500 features a new generation electronic control system that optimizes performance and protects critical components. This system includes:

• Large Flow Combining Valve: Increases hydraulic flow to 700 L/min, ensuring ample power delivery even during demanding operations.

• Enhanced Piping: Body piping increased to 1½ inches, reducing pressure loss and improving system efficiency.

• Component Protection: Smart controls extend the lifespan of valves, hoses, and seals by preventing pressure spikes and overheating.

Every component of the FV-500 is designed for extreme durability:

• Super Strong Structural Components: The frame and connecting elements are manufactured from high-strength steel with enlarged connecting shafts to ensure balanced force distribution and eliminate weak points.

• Optimized Force Path: Engineering analysis ensures that vibration energy is directed efficiently into the pile, not wasted on structural flexing.

Bearings are the heart of any vibratory hammer, and the FV-500 sets a new standard for reliability:

• Built-In Bearing Self-Lubrication: An integrated lubrication system continuously supplies oil to all bearings during operation, dramatically extending service life.

• Core Stability: This system ensures consistent performance even during extended work cycles in demanding conditions.

The clamping system is critical for safe and efficient operation:

• Super Strong Cast Steel Clamp Nozzle: Manufactured from high-grade cast steel for maximum strength and durability.

• 160-180 mm Cylinders: Large-diameter clamping cylinders provide immense gripping power.

• 650 kN Maximum Clamping Force: Ensures a secure grip on the heaviest piles, preventing slippage during driving or extraction.

• Stable and Reliable: The clamp design maintains consistent pressure, even under high-frequency vibration.

The FV-500 is built with only the highest quality components from world-leading manufacturers:

• Hydraulic Motor: Original imported Parker motors (USA) deliver smooth, reliable power with excellent efficiency.

• Bearings: German FAG bearings provide exceptional durability and long service life under high vibration loads.

• Gear Components: High-end gear sets ensure smooth operation and minimal wear.

• Unmatched Power: 759 kN centrifugal force tackles the toughest soils and longest piles.

• Exceptional Reliability: Self-lubricating bearings and premium components minimize downtime.

• Superior Clamping: 650 kN grip force handles large sheet piles, heavy H-beams, and steel casings with confidence.

• Operator-Friendly: Balanced vibration design reduces stress on the excavator and operator.

• Versatile Application: Handles steel sheet piles, steel casings, PC hybrid piles, and more.

• Easy Installation: Designed for straightforward mounting on 48-52 ton excavators.

The FV-500 Four Eccentric Pile Driver is ideally suited for large-scale infrastructure contractors in Southeast Asia, India, and Russia.

• Southeast Asia: Perfect for major port developments, deep foundation works for high-rise buildings, and bridge construction across the region's river deltas. The ability to handle long sheet piles and steel casings makes it invaluable for marine and waterfront projects.

• India: Ideal for mega-infrastructure projects including metro rail corridors, major bridge foundations, and industrial complex development. The FV-500's power and reliability are well-matched to India's ambitious infrastructure growth plans.

• Russia: Engineered to handle challenging geological conditions including dense soils and frozen ground. The robust construction and premium components ensure reliable operation in extreme temperatures and remote job sites.

Q1: What makes the four-eccentric design better than traditional two-eccentric hammers?

A1: The four-eccentric design generates more balanced vibration forces, reduces lateral stress on the excavator, and delivers higher centrifugal force for the same hydraulic input. This means faster driving, better efficiency, and longer equipment life.

Q2: What excavator is needed for the FV-500?

A2: The FV-500 is designed for excavators in the 48-52 ton class. The mounting bracket can be customized to fit different makes and models.

Q3: What types of piles can this machine handle?

A3: The FV-500 handles a wide range including large steel sheet piles (up to 18m), steel casings, H-beams, and PC hybrid piles. The heavy-duty clamp with 650 kN force securely grips the heaviest materials.

Q4: How does the self-lubricating bearing system work?

A4: An integrated lubrication system continuously supplies oil to all bearings during operation. This eliminates the need for manual greasing intervals and dramatically extends bearing life, especially during continuous heavy use.

Q5: What is the maximum clamping force?

A5: The FV-500 delivers a maximum clamping force of 650 kN, ensuring a secure grip on even the largest and heaviest piles.

Q6: Can this machine both drive and extract piles?

A6: Yes. The FV-500 is a fully reversible system. The same powerful vibration and clamping system used for driving is equally effective for extraction.

Q7: What maintenance is required?

A7: Routine maintenance includes checking hydraulic connections, monitoring the self-lubrication system, and inspecting clamp pads for wear. The premium components and self-lubricating bearings significantly reduce maintenance requirements compared to conventional hammers.

Q8: Are spare parts readily available?

A8: Yes. The FV-500 uses globally sourced components including Parker motors and FAG bearings, which have extensive distribution networks worldwide. Our company also maintains a comprehensive spare parts inventory.
