High-Speed Sheet Piling Solution: Hydraulic Side Clamp Pile Driver (20 m/min)
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dimension | 1400X1315X3056mm | Type | New And Used Both Available |
|---|---|---|---|
| Weight Of Arm | 3870kg | Excavator Weight | 32-40 Ton |
| Highlight | Powerful Hydraulic Pile Driver,Used Hydraulic Pile Driver,2500mm Hydraulic Pile Driver |
||
Product Description
High-Speed Sheet Piling Solution: Hydraulic Side Clamp Pile Driver (20 m/min)
Core Product Keywords
Pile Driver, Hydraulic Pile Driver, Vibratory Pile Driver, Side Clamp Pile Driver, SV-400 Pile Hammer, Sheet Pile Driver, High-Speed Pile Driver.
Product Introduction

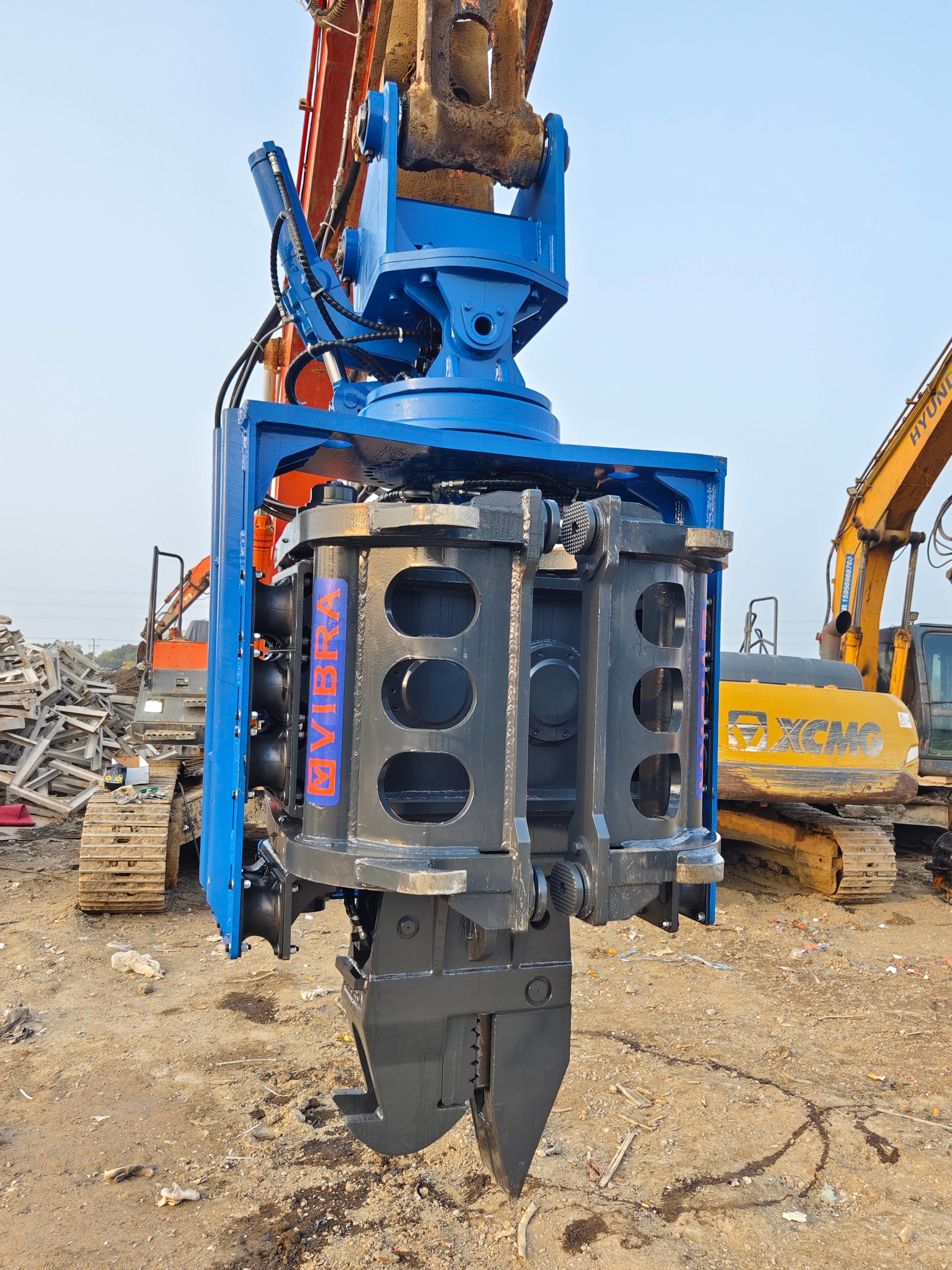

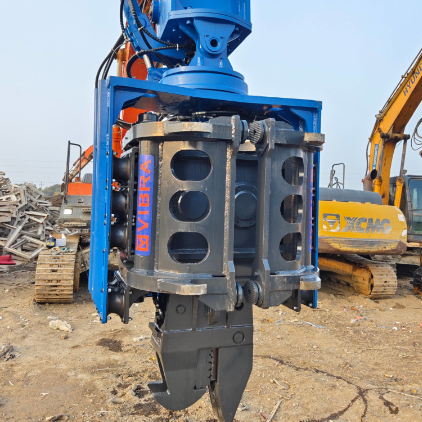

The VIBRA SV-400 Hydraulic Vibratory Pile Driver is engineered for precision and speed in sheet piling and foundation work. Featuring an efficient hydraulic side clamp system and a remarkable maximum driving speed of 20 meters per minute, this robust attachment transforms your 32-40 ton excavator into a highly productive piling rig, ideal for demanding timelines and complex projects.
Key Features & Advantages
| Feature | Advantage & Benefit |
|---|---|
| High-Speed Vibratory Driving (20 m/min) | Delivers an exceptionally fast maximum pile driving speed, drastically reducing project duration, labor costs, and accelerating the overall foundation phase of any construction project. |
| Hydraulic Side Clamp System | The integrated side clamp provides secure and precise handling of sheet piles and other pile types, allowing for better alignment, easier positioning, and more controlled installation compared to gravity-fed systems. |
| Strong Clamping & Vibration Force | Generates a substantial 565 kN side clamp force and 656 kN vibration force, ensuring a firm grip on piles and powerful soil penetration for reliable performance in various ground conditions. |
| Full 360° Rotation & Tilt | Offers complete maneuverability with 360° continuous rotation and ±30° tilt, enabling perfect pile positioning in tight or complex site layouts without needing to reposition the carrier excavator constantly. |
| Robust & Compact Design | Built with a sturdy, compact footprint (1320x1160x1820 mm) and a weight of 3870 kg, providing excellent stability and durability while being easily transportable and manageable on-site. |
Product Technical Parameters (SV Series Overview)
| Model | SV-150 | SV-200 | SV-300 | SV-400 | SV-500 |
|---|---|---|---|---|---|
| Vibration Force (kN) | 310 | 310 | 558 | 656 | 772 |
| Side Clamp Force (kN) | 335 | 335 | 385 | 565 | 565 |
| Weight (kg) | 1950 | 2280 | 3150 | 3870 | 4250 |
| Excavator (Ton) | 15-20 | 20-25 | 25-32 | 32-40 | 40-50 |
| Dimensions LxWxH (mm) | 1120x1110x1990 | 1220x1260x2150 | 1343x1230x2923 | 1320x1160x1820 | 1320x1160x1820 |
Frequently Asked Questions (FAQ)
Q1: What is the benefit of a side clamp on a pile driver?
A1: A hydraulic side clamp provides active, positive control over the pile. It allows for precise vertical alignment, secure gripping during hoisting and driving, and reduces the risk of pile slippage or misalignment, leading to faster, more accurate installations, especially for sheet piles.
Q2: How does the 20 m/min speed impact a project?
A2: This high driving speed can cut piling time significantly. For example, driving a 15-meter pile can theoretically take under a minute, allowing contractors to complete large piling grids in a fraction of the time required by slower methods, offering a substantial competitive advantage.
Q3: What size excavator is needed for the SV-400 model?
A3: The SV-400 is optimally matched for excavators in the 32 to 40-ton range. This ensures the carrier provides sufficient hydraulic flow, stability, and counterweight to utilize the pile driver's full power (656 kN vibration force) safely and efficiently.
Q4: Can it drive different types of piles?
A4: Yes. While exceptionally effective for sheet piling due to its side clamp, its powerful vibration and clamping force make it suitable for a variety of piles, including H-beams, pipe piles, and concrete piles, depending on the specific clamp jaws used.
Q5: What are the payment and delivery terms?
A5: We offer flexible terms with a Minimum Order Quantity of 1 set. Payment can be made via T/T. Delivery typically takes 7 to 35 days after order confirmation, with the product securely packaged (4-10 CBM) and shipped from China.
About VIBRA
VIBRA is a specialized manufacturer of high-performance hydraulic construction equipment. Our SV-Series Vibratory Pile Drivers embody our commitment to integrating innovative features—like the high-speed side clamp system—with robust engineering to provide contractors with reliable, efficient, and versatile solutions for their most challenging foundation projects.
Grip with Precision. Drive with Speed.
