Steel Pipe Sheet Pile Driving With Excavator Mounted Vibro Hammer

Place of Origin Shanghai, China
Brand Name VIBRA
Certification ISO 9001:2015
Model Number FV-350
Minimum Order Quantity 1 set
Price 18000 to 32000 USD
Packaging Details 7.14 CBM
Delivery Time 7-35 days
Payment Terms T/T, D/P, D/A, D/P, Western Union, MoneyGram,L/C
Supply Ability 15 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Excavator Mounted Pile Driver::Piling And Pulling Feature Easy To Install And Possible To Drive Any Pile
Vibration Frequency 3200rpm Operation Pressure 32Mpa
Arm Weight 750kg Hammer Weight 2600kg
Centrifugal Force 455KN Excavator 40-45T
Max Pile Length 15m Color Blue/Yellow/Red/White, Customized Color Available
HS Code 8430100000 Material Steel, Core Materials Are All Imported
High Light

Vibratory Excavator Mounted Pile Driver

,

15m Steel Pipe Sheet Pile Driver

,

Vibratory Hammer Pile Driver 32Mpa

Leave a Message
Product Description

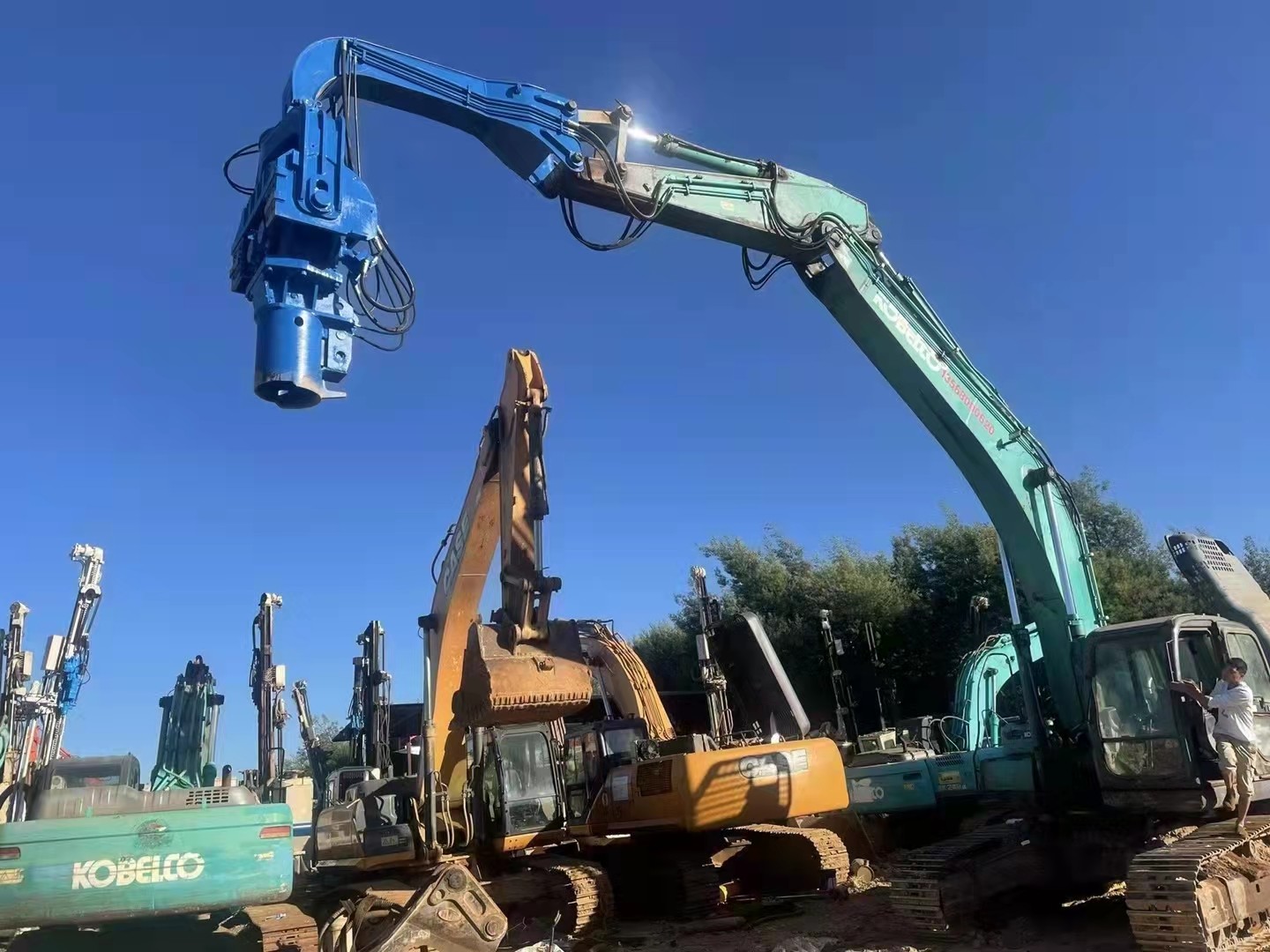

Steel pipe sheet pile driving with excavator mounted vibro hammer



In the market today there are two main types of vibratory hammers - electric and hydraulic. Electric hammers and hydraulic hammers have many differences but in a very basic sense they similar traits. Both electric and hydraulic hammer use a “power unit” that powers the hammer, both have clamps allowing the hammer to connect to the pile, both use wires or hoses to connect the hammer to the power unit. VIBRA offers more than 15 models of hydraulic vibrating pile drivers which can be fitted with excavator from 6 to 60 ton. Customer can drive more than 24 meters of piles using any brand of excavator. VIBRA has very collaboration with almost all leading excavator company in the world including Caterpillar, Volvo, Hyundai, Hitachi, XCMG, SANY, Zoomlion, Doosan and many more. VIBRA provides all the necessary accessories required to set up with the excavator, easy installation and fast pile driving with long lasting performance earns the praises of clients from around the world!



Features





VIBRA hydraulic vibratory hammer is the vibratory driving piling equipment which is popular among a wide variety of foundation projects.Apart from driving and pulling elements such as sheet piles and pipes, vibratory hammers are also used for soil densifying or vertical drainage, especially suitable for municipal, bridges, cofferdam, building foundation, etc.

With advanced technology, vibratory hammer has advantages of low noise, high efficiency, non-pollution and non-damage to piles,etc.



Technical Parameters



Item FV-250 FV-280 FV-300 FV-330 FV-350L FV-350 FV-400
Vibration Frequency (rpm) 2500 2800 3200 3200 3200 3200 3200
Operation Pressure (Mpa) 30 32 32 32 32 32 32
Centrifugal Force (KN) 265 335 350 372 435 455 485
Max. Pile Length (m) 10 12 12 12 15 15 18
Arm Weight (kg) 500 500 670 670 670 750 750
Hammer Weight (kg) 1700 1900 2100 2300 2400 2600 2700
Excavator (T) 20-30 20-30 30-35 33-40 35-40 40-45 45-60



Working Principle



Hydraulic vibrating pile driver take the advantage of high frequency vibration generated by motor and transit the vibration force to the hydraulic vibrating pile driver for the surrounding soil liquefying & break its structure to reduce the friction; then piling or drilling the pile form the soil ground via excavator. The high frequency vibration is driven by the hydraulic motor of the excavator.

The hydraulic motor drives the two eccentric axes to rotate at high speed in opposite direction. The horizontal force of the eccentric axis cancels each other without vibration. The vertical forces add up to each other, creating a vertical-frequency vibration.



Machinery Characteristics

  • The control system adopts integrated import control valve, each action can be controlled independently, convenient for maintenance and check.
  • The vibration frequency is controlled at two stages, and the second stage vibration is the confluence of double pumps, which greatly increases the excitation force and overcomes the special geology.
  • Mini and light weight design make application flexible.
  • Taking the advantage of the excavator hydraulic system without other driving system requirement, which save fuel oil and transportation cost.
  • The operation is simple and easy to learn. The driver who has the operation foundation of excavator can operate it with practice



FAQ



Q: How long is the warranty period?

A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.



Q: What is the MOQ?

A: One set is available.



Q: What's the payment method?

A: We accept L/C, T/T and D/P payment.



Q: What is the delivery time?

A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.



Q: Can I have our LOGO on the machine?

A: Of course you can.



Q: How is your product quality?

A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".



Q: Can I be your dealer?

A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!
