The Narrow-Space Solution: A Side-Grip Pile Driver with Compact Design for Tight Sites

  • The Narrow-Space Solution: A Side-Grip Pile Driver with Compact Design for Tight Sites
  • The Narrow-Space Solution: A Side-Grip Pile Driver with Compact Design for Tight Sites
  • The Narrow-Space Solution: A Side-Grip Pile Driver with Compact Design for Tight Sites
  • The Narrow-Space Solution: A Side-Grip Pile Driver with Compact Design for Tight Sites
  • The Narrow-Space Solution: A Side-Grip Pile Driver with Compact Design for Tight Sites
Place of Origin Shanghai, China
Brand Name VIBRA
Certification ISO 9001:2015
Model Number SV-200
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details 5 CBM
Delivery Time 15-35 days
Payment Terms T/T
Supply Ability 10 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Side Grip Pile Driver Feature Pile Driving In Small Working Areas
Vibration 3000 Rpm Centrifugal Force 332-384 KN
Hammer 1400-1700 Kg Excavator 20T
Material Steel, Core Materials Are All Imported Color Blue, Customized Color Available
HS Code 84301000 Size (LxWxH) 1320X1160X1820
Rotation/tilt Angle 360/+-30 Degree Eccentric Torque 3.07kgm
Highlight

Narrow Spaces Side Grip Vibro Hammer

,

Construction Side Grip Vibro Hammer

,

3000rpm Vibratory Hammer Pile Driver
Leave a Message
Product Description
The Narrow-Space Solution: A Side-Grip Pile Driver with Compact Design for Tight Sites
Product Keywords

  • Side Grip Pile Driver

  • Narrow Space Pile Driver

  • Excavator-Mounted Vibro Hammer

  • Confined Space Piling Equipment

  • VIBRA Pile Driver

Product Overview

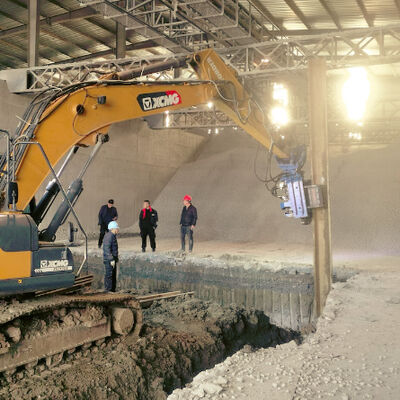

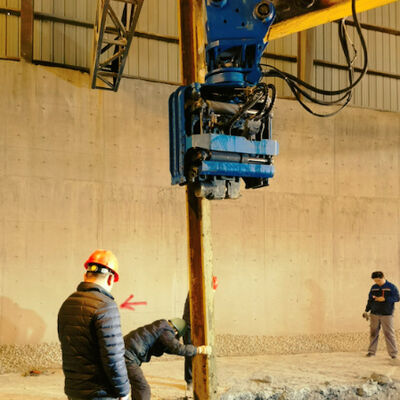

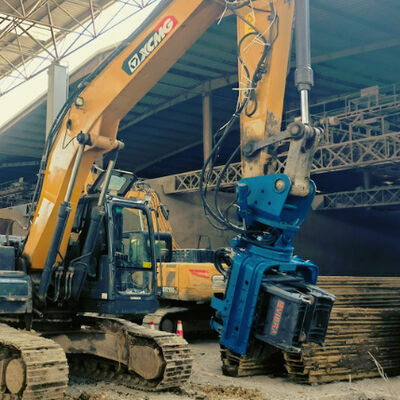

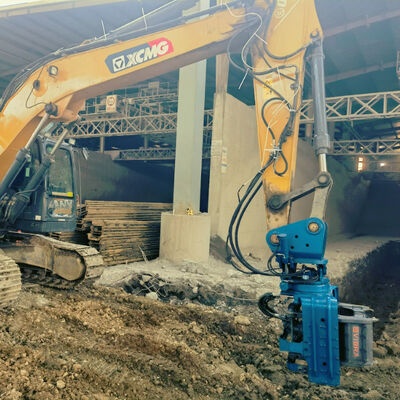

The VIBRA Side Grip Pile Driver is an ingeniously engineered, excavator-mounted vibratory hammer specifically designed to conquer the challenges of low-clearance and narrow construction spaces, such as workshop interiors, bridge foundations, and other restricted sites. It outperforms conventional pile drivers by featuring a unique side and base clamping system that allows it to securely pick up, tilt, and rotate piles with exceptional precision. This design enables the complete pile driving cycle without manual handling or additional machinery, delivering faster, safer, and more cost-effective operations.

Core Features & Advantages
1. Unmatched Performance in Tight Spaces

  • Specialized Confined Space Design: Its compact form and side-grip mechanism make it the ideal choice for environments where traditional large rigs cannot operate, effectively opening up new possibilities for urban and retrofit projects.

  • Complete & Automated Pile Handling: The integrated grip system can handle, pitch, and drive various piles (sheet, tube, H-beams) autonomously. This eliminates the need for manual labor or auxiliary cranes, significantly enhancing on-site safety and workflow efficiency.

  • 360° Rotation & Precision Control: Equipped with a full 360° rotation and a successful shifting mechanism, it offers unparalleled maneuverability to position piles with high accuracy in complex layouts.

2. Versatile, Robust & User-Friendly

  • Broad Excavator Compatibility & Easy Installation: Suitable for 9~40 ton standard excavators. It connects via a VIBRA-designed adapter, making installation straightforward with very low difficulty, ensuring quick deployment.

  • Multi-Functional Fixture System: Features a replaceable standard clamp interface, allowing one unit to efficiently handle a wide range of piles including steel sheet piles, H-beams, I-beams, casing piles, and tube piles.

  • Ergonomic Operation & Durability: Hydraulically powered by the host excavator and easily operated from the cab. Built for longevity with simple maintenance requirements, it promises issue-free service and a strong return on investment.

Technical Parameters

The VIBRA Side Grip series offers powerful models tailored for different project scales within confined spaces.

Parameter Item Unit SV-200 SV-300
Eccentric Moment Kgm 3.1 5.2
Vibration Force Kn 310 518
Frequency Range Rpm 2300-3000 2300-3000
Side Clamp Force Kn 332 375
Bottom Clamp Force Kn 384 435
Working Pressure Mpa 32 32
Weight (with fixture) kg 1750 2380
Rotation / Tilt Angle Degrees 360° / ±30° 360° / ±30°
Frequently Asked Questions (FAQ)

Q: What is the main application for the Side Grip Pile Driver?
A: It is specially designed for piling in low-clearance and narrow spaces where conventional equipment cannot fit, such as inside existing buildings, under bridges, or on tightly constrained urban sites.

Q: Can it handle different types of piles?
A: Yes, absolutely. Its multi-functional, replaceable clamp system makes it suitable for a wide scope of piles including sheet piles, H-beams, I-beams, and tube piles.

Q: Is the installation complicated?
A: No, it is designed for easy integration. It is suitable for standard 9-40 ton excavators, and the installation difficulty is very low through a simple modification with our adapter.

Q: What is the warranty and quality assurance?
A: We offer a 12-month warranty for the mainframe and key components. All equipment is manufactured in strict accordance with national "Technical Conditions for Pile Driver Enterprises" standards.

Q: What are the payment terms and delivery time?
A: We accept T/T. Delivery typically takes 7-35 days to Shanghai Port, with additional time for international shipping. Logo customization is available, and we welcome dealer inquiries.

Tags:

vibro pile driver

vibratory pile driving equipment

vibratory pile driver
