CAT-Optimized Pile Driver: Accelerate 12m Sheet Piling with Precision & Power

  • CAT-Optimized Pile Driver: Accelerate 12m Sheet Piling with Precision & Power
  • CAT-Optimized Pile Driver: Accelerate 12m Sheet Piling with Precision & Power
  • CAT-Optimized Pile Driver: Accelerate 12m Sheet Piling with Precision & Power
  • CAT-Optimized Pile Driver: Accelerate 12m Sheet Piling with Precision & Power
  • CAT-Optimized Pile Driver: Accelerate 12m Sheet Piling with Precision & Power
  • CAT-Optimized Pile Driver: Accelerate 12m Sheet Piling with Precision & Power
Place of Origin Shanghai, China
Brand Name VIBRA
Certification ISO 9001:2015
Model Number FV-280
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details 5.824 CBM
Delivery Time 7-35 days
Payment Terms T/T
Supply Ability 15 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Excavator Mounted Pile Driver::Piling And Pulling Feature Easy To Install And Possible To Drive Any Pile
Arm Weight 500kg Operation Pressure 32Mpa
Hammer Weight 1900kg Vibration Frequency 2800rpm
Centrifugal Force 335KN Excavator 20-30T
Color Blue/Yellow/Red/White, Customized Color Available HS Code 84301000
Material Steel, Core Materials Are All Imported Type New And Used Both Available
Highlight

Construction Projects Sheet Pile Driver

,

12 Meter Sheet Pile Driver

,

CAT Excavator Vibratory Hammer Pile Driver
Leave a Message
Product Description
CAT-Optimized Pile Driver: Accelerate 12m Sheet Piling with Precision & Power
Product Keywords
  • Hydraulic Vibratory Pile Driver for CAT
  • 12 Meter Sheet Pile Driver
  • Excavator-Mounted Pile Hammer
  • Fast Pile Driving Equipment
  • VIBRA Pile Driver
Product Overview

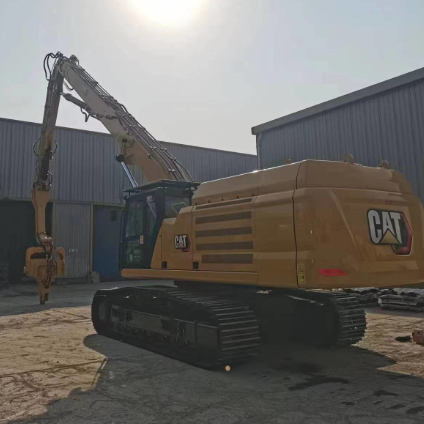

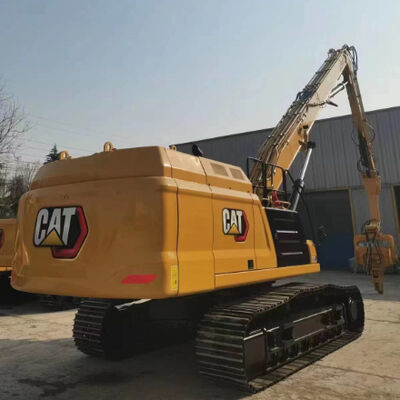

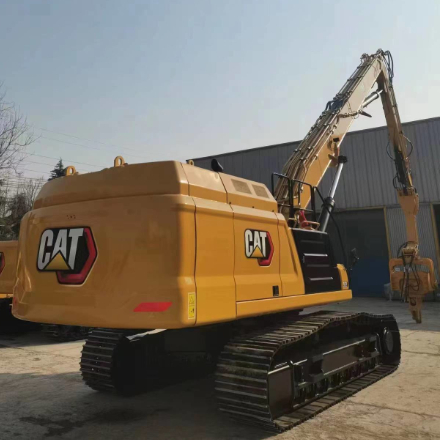

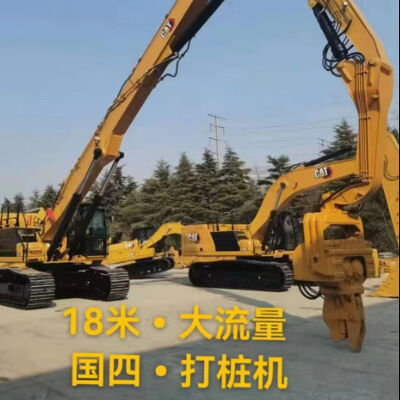

The VIBRA Hydraulic Vibratory Pile Driver is a high-performance attachment engineered to transform your CAT excavator into a fast and efficient piling rig, specifically optimized for driving 12-meter sheet piles and beyond. Unlike electric models, our hydraulic hammers leverage the excavator's own power system, eliminating the need for a separate power unit. With collaboration and compatibility with leading brands like CAT, VIBRA provides a complete, easy-to-install solution that delivers long-lasting performance and accelerated project timelines, earning global client praise.

Core Features & Advantages
1. High Performance & Versatility
  • Optimized for Major Brands: Designed through direct collaboration with CAT, Hyundai, and other top excavator manufacturers, ensuring seamless integration, easy installation, and optimal performance on your specific machine.
  • Extended Reach Capability: Our range of over 15 models can be fitted to excavators from 6 to 60 tons, enabling the driving of piles exceeding 24 meters in length to meet diverse project demands.
  • Multi-Material Proficiency: Efficiently drives a variety of pile types including steel sheet piles, cement piles, steel rail piles, and H-beams, making it a versatile tool for different foundation requirements.
2. Advanced, Damage-Free Technology
  • High-Frequency Vibratory Action: Utilizes high-frequency vibration to liquefy surrounding soil, drastically reducing friction and allowing piles to be driven or extracted with less force, minimizing damage to both the pile top and the surrounding environment.
  • Adjustable & Powerful Excitation: Features a two-stage vibration frequency. The second stage employs a double-pump confluence to greatly increase the excitation force, overcoming challenging soil conditions. The clamp can rotate 180° for flexible positioning.
  • Quiet, Environmentally-Friendly Operation: Fitted with a rubber sheath to significantly reduce noise and vibration, allowing for work near existing structures without damage and helping projects meet strict environmental standards.
Technical Parameters

Select the model that matches your required pile length and carrier size. The FV-280 is particularly suited for 12-meter sheet piles with 20-30 ton excavators like many CAT models.

Item FV-250 FV-280 FV-300 FV-330 FV-350S FV-350 FV-400
Centrifugal Force (KN) 265 335 350 372 435 455 485
Max. Pile Length (m) 10 12 12 12 15 15 18
Vibration Frequency (rpm) 2500 2800 3200 3200 3200 3200 3200
Hammer Weight (kg) 1700 1900 2100 2300 2400 2600 2700
Suitable Excavator (T) 20-30 20-30 30-35 33-40 35-40 40-45 45-60
Frequently Asked Questions (FAQ)

Q: Is VIBRA compatible with my CAT excavator?

A: Yes. VIBRA has established collaboration with CAT and provides all necessary accessories for a straightforward installation on CAT excavators, ensuring reliable and efficient operation.

Q: What makes your hydraulic pile driver faster?

A: Speed comes from easy installation, high-frequency vibration that reduces soil friction, and powerful, adjustable excitation force. This combination allows for rapid driving and extraction cycles, accelerating the entire piling process.

Q: Are you the manufacturer?

A: Yes, we are the direct factory manufacturer with over 12 years of expertise. Our production facility is located in Suzhou, and we welcome client visits.

Q: What is the warranty and product quality standard?

A: We offer a 12-month warranty for the mainframe and key components. All equipment is strictly produced in accordance with the national "Technical Conditions for Pile Driver Enterprises" standards.

Q: What is the lead time and payment method?

A: Delivery typically takes 7-35 days to Shanghai Port. We accept T/T . Logo customization and dealer inquiries are welcome.
