Hydraulic Pile Driver with Integrated Control Valve Assembly and Dual Pump Flow Merging System

Shanghai Yekun Construction Machinery Co., Ltd. is a technical enterprise specializing in the production, sales, and service of vibratory pile drivers and extractors. As a leading Hydraulic pile driver Manufacturers China, we deliver high-performance hydraulic pile drivers that are widely used in infrastructure construction projects worldwide, including Southeast Asia, India, and Russia.

Our hydraulic pile drivers are designed to drive and extract wood piles, cement piles, steel sheet piles, steel pipe piles, H-beams, and steel casings by cooperating with different clamps. With the ability to mount on almost any 6–60 ton excavator of any brand, our equipment delivers exceptional versatility for河道堤防 (watercourse embankments),房屋地基 (house foundations),市政管网 (municipal networks),高架桥梁 (bridges), and photovoltaic pile applications.

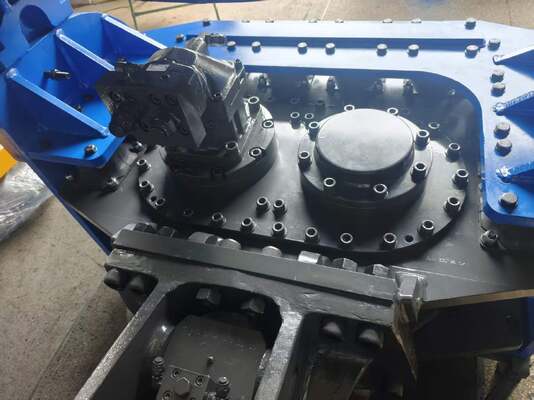

At the heart of our hydraulic pile driver is an integrated control valve assembly imported from leading international hydraulic brands. This compact valve block centralizes all hydraulic functions – vibration start/stop, eccentric rotation direction, and flow regulation. Each action can be controlled independently, which simplifies maintenance and troubleshooting, reduces external hose clutter, and improves response time.

Unlike traditional systems with multiple separate valves connected by long hoses, our integrated design minimizes leak points and reduces pressure losses. The valve assembly is rated for 32 MPa operating pressure and includes built-in pressure relief and anti-cavitation protection. For fleet owners, this means fewer hydraulic failures and faster diagnostics – significantly reducing downtime and maintenance costs.

The Exporters dual pump flow merging system represents a breakthrough in hydraulic power management. Our hydraulic pile drivers feature a two-stage vibration control system. In normal mode, a single pump circuit provides sufficient flow for light piling or extraction, saving fuel and reducing heat generation.

When the pile encounters dense gravel, compacted fill, or stiff clay, the system automatically merges the flow from a second pump – instantly increasing hydraulic power to the vibratory motor. This dual pump flow merging system allows operators to combine hydraulic flow on demand, boosting excitation force when encountering hard layers. The merging process is smooth and shock-free, protecting both the hammer and the excavator.

For operators working in mixed soil layers – common in river deltas and alluvial plains across Southeast Asia, India, and Russia – this feature significantly improves productivity. Standard flow handles normal conditions; when the ground gets tough, activate the merging valve to combine dual pump flow, increasing excitation force by up to 40% without needing a larger carrier machine. This capability makes our pile drivers exceptionally adaptable to challenging geological conditions.

Our self lubricating bearing low maintenance Made In China design sets a new standard for operational efficiency. The gearbox houses a continuous oil circulation system that bathes all bearings. This sealed self-lubrication system eliminates daily greasing of hard-to-reach points.

The maintenance advantages are substantial:

• Oil change intervals – only every 1000 hours
• Bearing life – extended by 3x compared to conventional greased bearings
• Maintenance labour – reduced by 80%
• No grease disposal costs – eliminating environmental concerns

For project managers and fleet operators, this low maintenance cost design dramatically lowers the total cost of ownership. Less downtime for maintenance means more time on the job, higher productivity, and better project profitability. The self-lubricating bearing system is particularly valuable for large-scale infrastructure projects where equipment reliability is critical to meeting tight schedules.

The high efficiency drilling performance Suppliers China of our hydraulic pile drivers is achieved through high-frequency vibration technology. The hydraulic motor drives eccentric axes to rotate at high speed in opposite directions. Horizontal forces cancel each other without vibration, while vertical forces add up to create vertical high-frequency vibration.

This high frequency vibration output rapidly liquefies surrounding soil, reducing friction by up to 70–80% and enabling fast penetration through dense clay, gravel, weathered rock, and even frozen ground. The result is:

• 30–40% faster penetration than standard hammers
• Reduced frictional resistance for smoother driving and extraction
• Minimal noise and structural vibration – suitable for urban and environmentally sensitive areas
• Straighter pile driving with less operator fatigue

Our hydraulic pile drivers are engineered for high efficiency drilling performance that keeps critical path projects on schedule. Whether you are working on bridge foundations, port walls, or large-scale infrastructure projects, our equipment delivers the power and speed you need.

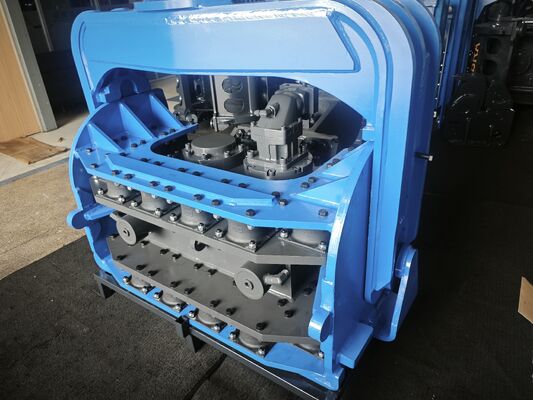

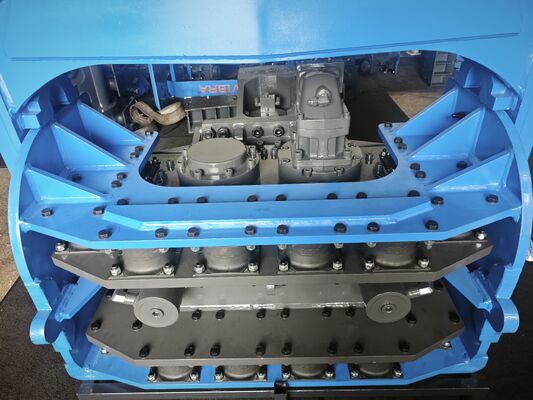

The PCF series (Taiwan hammer series) features a box structure consistent with mainstream Taiwan hammers, with interchangeable spare parts and easy bearing maintenance. The fabricated box structure demands high material strength, welding process quality, and machining accuracy.

Note: Specifications are for reference only. Products are constantly updated, and new product specifications may vary.

Q1: What types of piles can your hydraulic pile driver handle?
Our hydraulic pile drivers can drive and extract wood piles, cement piles, steel sheet piles, steel pipe piles, H-beams, and steel casings by using different clamps.

Q2: What excavator size is required?
Our pile drivers are compatible with almost any 6–60 ton excavator of any brand. The PCF series requires 33–70 ton excavators depending on the model.

Q3: What is the dual pump flow merging system?
It is a two-stage hydraulic system that combines flow from two pumps on demand. Normal mode uses single pump flow for fuel efficiency; when encountering hard ground, the second pump flow merges automatically to boost excitation force.

Q4: How does the self-lubricating bearing system work?
The gearbox houses a sealed continuous oil circulation system that bathes all bearings. No daily greasing is required – only an oil level check every 200 hours and an oil change every 1000 hours.

Q5: Is the pile driver suitable for confined spaces?
Yes. Despite their power, our hydraulic pile drivers maintain a compact structure that allows operation in narrow job sites such as between existing foundations, inside cofferdams, or along roadside trenches.

Q6: What after-sales support is provided?
We offer professional technical support, warranty coverage, and comprehensive after-sales service. Spare parts and replacement modules are readily available from our manufacturing facilities in Shanghai and Kunshan.
