2500rpm Pile Driving Wheel Excavator 6 To 8 Meter Sheet Piles

Place of Origin Shanghai, China
Brand Name VIBRA
Certification ISO 9001:2015
Model Number FV-100
Minimum Order Quantity 1 set
Price 16000 USD
Packaging Details 3.824 CBM
Delivery Time 7-35 days
Payment Terms T/T, D/P, Western Union, MoneyGram, L/C, D/A
Supply Ability 15 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Excavator Mounted Pile Driver::Piling And Pulling Feature Easy To Install And Possible To Drive Any Pile
Vibration Frequency 2500rpm Operation Pressure 30Mpa
Weight Of Arm 160kg Weight Of Hammer 850kg
Centrifugal Force 117KN Excavator 6~12 Ton
Material Steel, Core Materials Are All Imported HS Code 8430100000
Type Hydraulic Vibrating Hammer Condition New
High Light

8 Meter Vibratory Hammer Pile Driver

,

Pile Driving Wheel Excavator

,

2500rpm Vibrating Pile Driver

Leave a Message
Product Description

Wheeler excavator suitable for pile driving work of 6 to 8 meter sheet piles

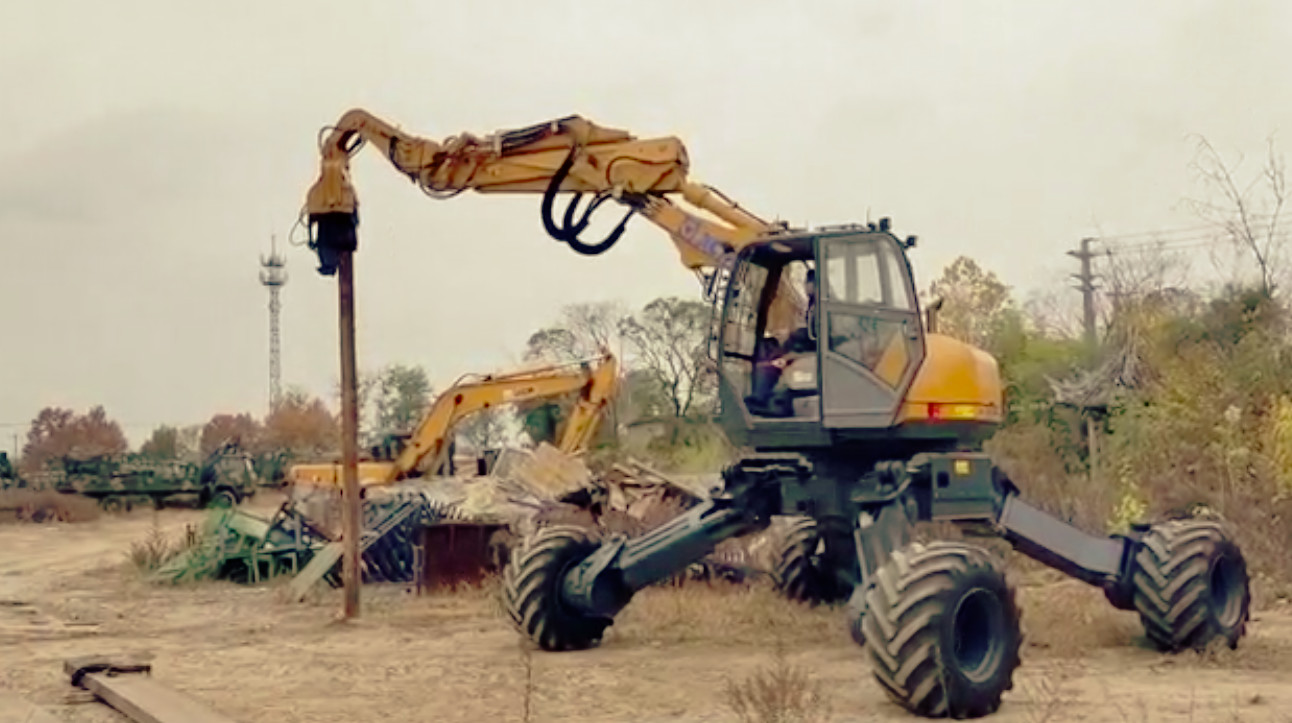

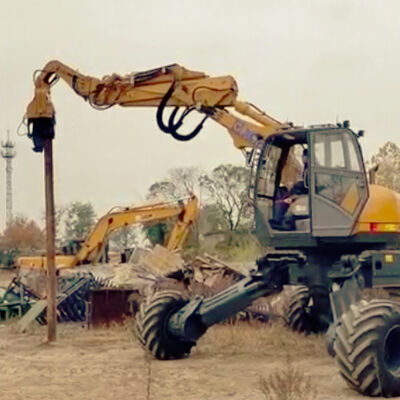

XCMG presenting first ever wheeler excavator which set up with VIBRA FV100 pile driver! You won't find any other wheeler excavator done the pile driving job in the piling construction projects! XCMG ET120 wheeler excavator fitted with FV100 with the goal of performing 6 to 8 meters piling works. The FV100 small pile driver has been well received by customers because of its small structure, light weight and good performance. Majorities of the inner parts of FV100 are European brand high quality parts like, SKF (Sweden) bearing, Brevini (Italy) rotation motor, Hydro Leduc (France) Vibration Motor, Four in one advance control valve (Italy) and Japan NKK control switch. By cooperating with different clamps, it can sink and pull-out steel sheet pile, cement pile, wood pile, steel pipe pile, H-beam steel, steel shield and many more types of piles.



Mini hydraulic pile driver for the company's original products, its birth to fill the industry gap; Changed the history of small excavator can not be refitted pile driver; Solve the problem that small foundation pile can not be mechanized construction.

This series of models for the new rural reconstruction of the basic engineering construction has made an outstanding contribution.



Features



VIBRA hydraulic vibratory hammer is the vibratory driving piling equipment which is popular among a wide variety of foundation projects.Apart from driving and pulling elements such as sheet piles and pipes, vibratory hammers are also used for soil densifying or vertical drainage, especially suitable for municipal, bridges, cofferdam, building foundation, etc.

With advanced technology, vibratory hammer has advantages of low noise, high efficiency, non-pollution and non-damage to piles,etc.



Working Principle



Hydraulic vibrating pile driver take the advantage of high frequency vibration generated by motor and transit the vibration force to the hydraulic vibrating pile driver for the surrounding soil liquefying & break its structure to reduce the friction; then piling or drilling the pile form the soil ground via excavator. The high frequency vibration is driven by the hydraulic motor of the excavator.

The hydraulic motor drives the two eccentric axes to rotate at high speed in opposite direction. The horizontal force of the eccentric axis cancels each other without vibration. The vertical forces add up to each other, creating a vertical-frequency vibration.



Machinery Characteristics

  • The control system adopts integrated import control valve, each action can be controlled independently, convenient for maintenance and check.
  • The vibration frequency is controlled at two stages, and the second stage vibration is the confluence of double pumps, which greatly increases the excitation force and overcomes the special geology.
  • Mini and light weight design make application flexible.
  • Taking the advantage of the excavator hydraulic system without other driving system requirement, which save fuel oil and transportation cost.
  • The operation is simple and easy to learn. The driver who has the operation foundation of excavator can operate it with practice



Technical Parameters



Item FV-100 FV-150 FV-250
Vibration Frequency (rpm) 2500 2500 2800
Operation Pressure (Mpa) 30 30 32
Centrifugal Force (KN) 117 172 265
Max.Pile (m) 6 8 10
Arm (kg) 160 260 500
Hammer (kg) 850 1100 1700
Excavator (T) 6-12 12-17 20~25









FAQ



Q: Are you a manufacturer?



A: Yes, we have been in this field for more than 12 years, our factory is in Suzhou and you are welcome to visit our unit anytime during working hour period,



Q: Who is your main customer?



A: Our customers are spreading all over the China with some abroad countries as well namely from New Zealand, Malaysia, Indonesia and many more are joining in the list. Brands like XCMG, SANY, Zoomlion, Caterpillar and Hyundai are our valuable customers.



Q: How long is the warranty period ?



A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.



Q: What is the MOQ ?



A: 1 set is available.



Q: What's the payment method ?



A: We accept T/T and D/P payment.



Q: What is the delivery time ?



A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.



Q: Can I have our LOGO on the machine ?



A: Of course you can.



Q: How is your product quality ?



A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".



Q: Can I be your dealer ?



A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!
