Construction Projects Vibratory Hammer Pile Driver For Waterbodies Pile Driving

Place of Origin Shanghai, China
Brand Name VIBRA
Certification ISO 9001:2015
Model Number FV-250
Minimum Order Quantity 1 set
Price 15000 to 38000 USD
Packaging Details 5.14 CBM
Delivery Time 10-35 days
Payment Terms T/T, D/P, L/C, Western Union, MoneyGram, D/A
Supply Ability 15 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Excavator Mounted Water Boat Pile Driver Feature Short Working Time More Pile Driving
Vibration Frequency 2800 Rpm Operation Pressure 32 Mpa
Centrifugal Force 265 KN Arm Weight 500 Kg
Hammer Weight 1700 Kg Excavator 20-30 T
Material Steel, Core Materials Are All Imported Color Blue/Yellow, Customized Color Available
Type New And Used Both Available HS Code 84301000
High Light

2800 Rpm Vibratory Hammer Pile Driver

,

Waterbodies Vibratory Hammer Pile Driver

,

Construction Excavator Mounted Vibratory Pile Driver

Leave a Message
Product Description

Vibro hammer for waterbodies pile driving construction projects

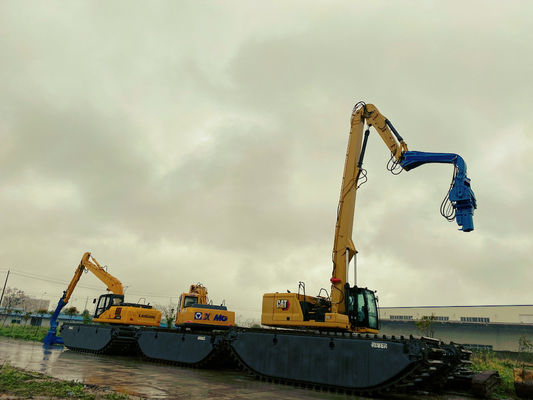

VIBRA Introducing boat type driven pile driver YEKUN! YEKUN and XCMG together with RIVER company present water driven pile driver. YEKUN pile driver ensure pile driving in waterbodies which is fast and secure for working construction projects nearby cannel, river and seaside areas. With the help of RIVER YEKUN can work with any brand of excavator like Caterpillar, Hyundai, XCMG, SANY, Kobelco, Zoomlion, Luigong, Sunward and others available brands. Contact us do your construction projects more efficiently!



Equipment advantages:



VIBRA hydraulic vibratory hammer is the vibratory driving piling equipment which is popular among a wide variety of foundation projects.Apart from driving and pulling elements such as sheet piles and pipes, vibratory hammers are also used for soil densifying or vertical drainage, especially suitable for municipal , bridges, cofferdam, building foundation, etc.

With advanced technology, vibratory hammer has advantages of low noise, high efficiency, non-pollution and non-damage to piles,etc.



Working Principle



Hydraulic vibrating pile driver take the advantage of high frequency vibration generated by motor and transit the vibration force to the hydraulic vibrating pile driver for the surrounding soil liquefying & break its structure to reduce the friction; then piling or drilling the pile form the soil ground via excavator. The high frequency vibration is driven by the hydraulic motor of the excavator.

The hydraulic motor drives the two eccentric axes to rotate at high speed in opposite direction. The horizontal force of the eccentric axis cancels each other without vibration. The vertical forces add up to each other, creating a vertical-frequency vibration.



Machinery Characteristics

  • The control system adopts integrated import control valve, each action can be controlled independently, convenient for maintenance and check.
  • The vibration frequency is controlled at two stages, and the second stage vibration is the confluence of double pumps, which greatly increases the excitation force and overcomes the special geology.
  • Mini and light weight design make application flexible.
  • Taking the advantage of the excavator hydraulic system without other driving system requirement, which save fuel oil and transportation cost.
  • The operation is simple and easy to learn. The driver who has the operation foundation of excavator can operate it with practice

Technical Parameter



Item FV-250 FV-280 FV-300 FV-330 FV-350L FV-350 FV-400
Vibration (rpm) 2500 2800 3200 3200 3200 3200 3200
Pressure (Mpa) 30 32 32 32 32 32 32
Centrifugal Force (KN) 265 335 350 372 435 455 485
Max.Pile (m) 10 12 12 12 15 15 18
Arm Weight (kg) 500 500 670 670 670 750 750
Hammer Weight (kg) 1700 1900 2100 2300 2400 2600 2700
Excavator Weight (T) 20-30 20-30 30-35 33-40 35-40 40-45 45-60



Construction Projects Vibratory Hammer Pile Driver For Waterbodies Pile Driving 0

FAQ



Q: Are you a manufacturer?



A: Yes, we have been in this field for more than 12 years, our factory is in Suzhou and you are welcome to visit our unit anytime during working hour period,



Q: Who is your main customer?



A: Our customers are spreading all over the China with some abroad countries as well namely from New Zealand, Malaysia, Indonesia and many more are joining in the list. Brands like XCMG, SANY, Zoomlion, Caterpillar and Hyundai are our valuable customers.



Q: How long is the warranty period ?



A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.



Q: What is the MOQ ?



A: 1 set is available.



Q: What's the payment method ?



A: We accept T/T and D/P payment.



Q: What is the delivery time ?



A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.



Q: Can I have our LOGO on the machine ?



A: Of course you can.



Q: How is your product quality ?



A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".



Q: Can I be your dealer ?



A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!



Q: How to order?



A:
1. Please tell us the model with quantity and other requirement which you needed.
2. We issue the Proforma Invoice to you after confirmed the price and other details.
3. We arrange the order production upon receipt of confirmed PI and your deposit or original L/C.
4. After the goods is ready to ship, we will inform you the shipment date and other informations by email at the same time.
5. We will help to track your goods until you receive them safely.
