Product Details
Name Large Sheet Pile Driver Vibro Hammer Feature Capable Of Driving Long Piles In Hard Soil Condition
Frequency 3200 Rpm Pressure 32 Mpa
Arm 820 Kg Hammer 3350 Kg
Centrifugal Force 585 KN Excavator 55-70 T
Color Blue/Yellow/Red/White, Customized Color Available Material Steel, Core Materials Are All Imported
Maximum Piling Depth 21 Meter HS Code 8430100000
Highlight

Sheet Pile Driving Vibro Hammer

,

Excavator Mounted Sheet Pile Driving Machine
Leave a Message
Product Description

Product Introduction: PCF-500 Heavy-Duty Sheet Pile Driver

Core Keywords: Sheet Pile Driver, Heavy-Duty Vibro Hammer, Excavator-Mounted Pile Driver, Large Sheet Pile Driver, Hydraulic Vibratory Hammer

Product Overview

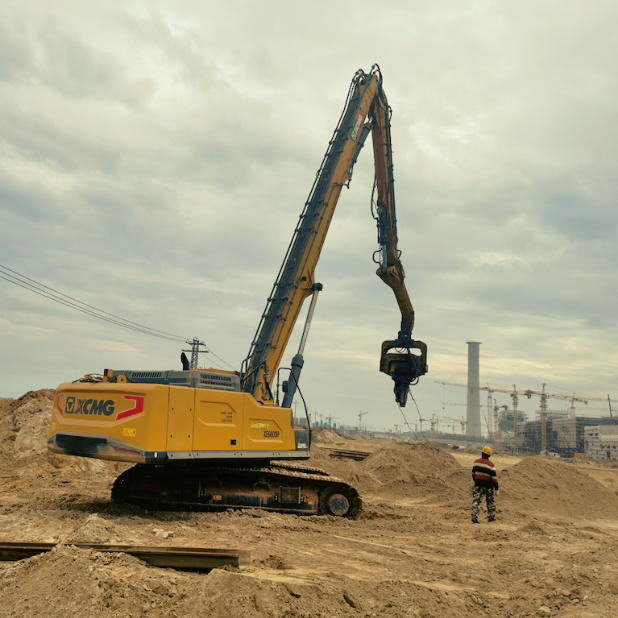

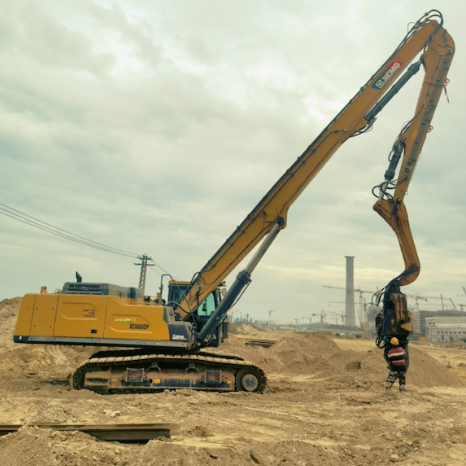

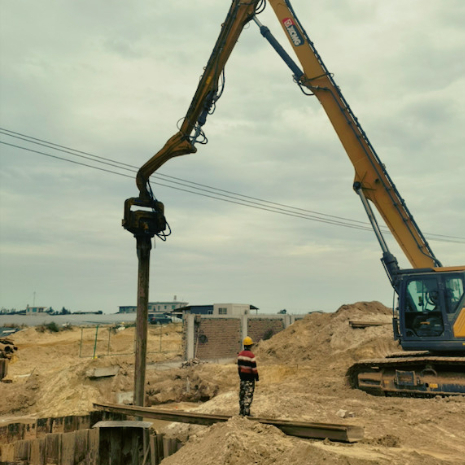

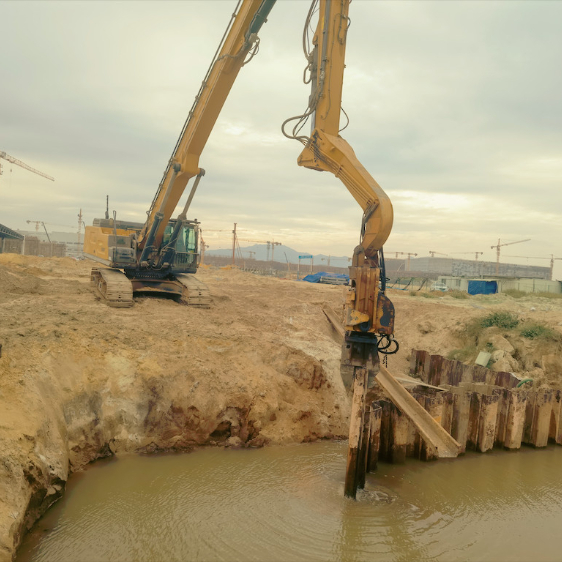

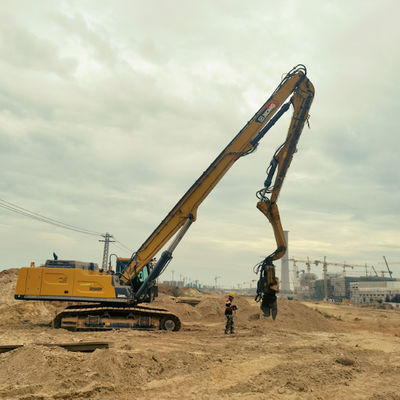

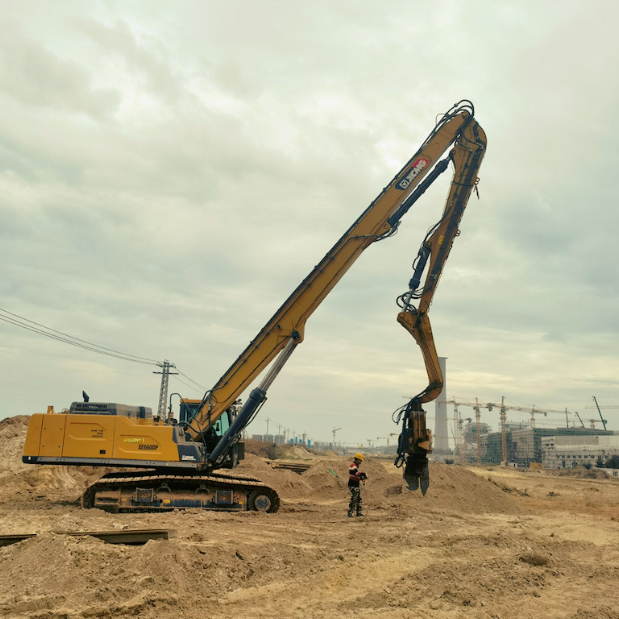

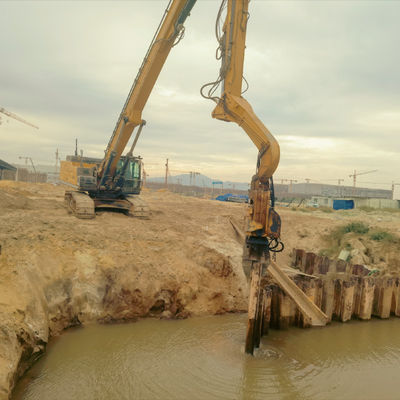

The PCF-500 Heavy-Duty Sheet Pile Driver represents the pinnacle of excavator-mounted piling technology, specifically engineered for large-scale sheet pile driving projects. As demonstrated in the Asia's largest paper mill sewer pipe project in Zhangzhou, where it successfully drove 12-meter sheet piles with an XCMG 660DP excavator, this machine delivers exceptional performance in the most demanding applications. Sheet piles, with their interlocking edges, provide crucial earth retention and excavation support for both building projects and civil engineering works including tunnel portals, riverbank protection, seawalls, and cofferdams.

Key Features

  • Advanced electric control system with extended component lifespan
  • Large flow confluence valve (700L capacity) with 1½-inch piping
  • Box bearing self-lubricating system for enhanced stability
  • Super strong cast steel chuck with 602KN clamping force
  • Premium imported components (Parker motors, SKF bearings)
  • Reinforced connection shafts for balanced force distribution

Product Advantages

  • Proven Performance: Successfully deployed in major projects including Asia's largest paper mill sewer pipe installation
  • Exceptional Power: 828KN exciting force ensures efficient driving in challenging soil conditions
  • Heavy-Duty Compatibility: Matches 60-68 ton excavators with 320-345kw engine power and 760L hydraulic flow
  • Superior Engineering: Advanced structural design ensures force balance across all components
  • Reliable Operation: Original imported Parker motors and Swedish SKF bearings guarantee long-term performance
  • Deep Driving Capability: Handles sheet piles up to 21 meters for extensive foundation and retention projects

Technical Parameters

Parameter Specification
Model PCF-500
Exciting Force 828 KN
Maximum Piling Depth 21 m
Hammer Head Weight 3600 kg
Compatible Excavator 60-68 T
Eccentric Weight 77.5 kg
No-load Amplitude 9.3 mm
Hydraulic Pump Flow 760L
Engine Power Range 320-345kw

Application Range

  • Temporary earth retention for deep foundation elements
  • Tunnel portal construction and support
  • Marine applications including riverbank protection and seawalls
  • Cofferdam construction for water-based projects
  • Large-scale industrial and civil engineering projects
  • Sewer and pipeline infrastructure development

Frequently Asked Questions

Q: Are you a direct manufacturer?

A: Yes, we have over 12 years of manufacturing experience with our factory in Suzhou, and welcome client visits during working hours.

Q: What major projects have used your equipment?

A: Our PCF-500 has been successfully deployed in Asia's largest paper mill sewer pipe project and serves clients worldwide including New Zealand, Malaysia, and Indonesia.

Q: What is the warranty period?

A: We provide a 12-month warranty from installation date, covering main components (excluding wear parts).

Q: What is the minimum order quantity?

A: MOQ is 1 set.

Q: What payment methods do you accept?

A: We accept T/T and D/P payments.

Q: Can we customize machines with our logo?

A: Yes, we offer complete OEM services including logo customization.

Market Leadership

Our continuous innovation has led to the development of the PCF-500 and PCF-600 models, specifically designed to meet evolving market demands for larger sheet piles and more challenging construction requirements. These heavy-duty solutions ensure that contractors can handle 18-24 meter steel sheet piles, steel guard cylinders, and PC piles with unmatched efficiency and reliability.

The PCF-500 Sheet Pile Driver combines robust engineering with proven field performance, delivering the power and precision needed for today's most demanding sheet piling applications while ensuring the reuse value of sheet piles is fully maintained.
