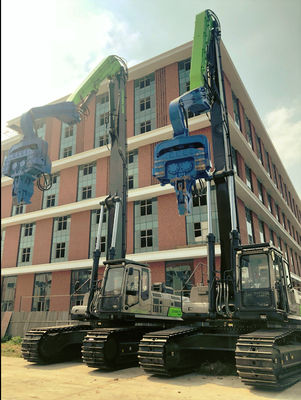

Excavator Mounted Vibro Hammer For Fast Pile Driving Construction Projects

Place of Origin Shanghai, China
Brand Name VIBRA
Certification ISO 9001:2015
Model Number FV-400
Minimum Order Quantity 1 set
Price 22000 to 32000 USD
Packaging Details 8 CBM
Delivery Time 7-35 days
Payment Terms T/T, D/P, D/A, D/P, Western Union, MoneyGram,L/C
Supply Ability 15 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Excavator Mounted Pile Driver::Piling And Pulling Feature Easy To Install And Possible To Drive Any Pile
Arm Weight 750kg Operation Pressure 32Mpa
Hammer Weight 2700kg Vibration Frequency 3200rpm
Centrifugal Force 485KN Excavator 45-60T
Material Steel, Core Materials Are All Imported Color Blue/Yellow/Red/White, Customized Color Available
HS Code 8430100000 As Pile Driver Accessories Type Hydraulic Vibrating Hammer
Max Piling Depth 18 M Condition New
High Light

Pile Driving Excavator Mounted Vibro Hammer

,

Excavator Mounted Vibro Pile Driver

,

3200rpm Vibratory Sheet Pile Hammer

Leave a Message
Product Description

Excavator mounted Vibro hammer for fast pille driving construction projects



A "vibratory hammer/vibro hammer" is a tool used to drive piles in or out of the ground for building marinedocks, bridges, buildings, roads, rail, walls, and many other types of foundations. Traditional pile drivers are very loud and use a large weight to strike the pile. Vibratory hammers however are very quiet and have many advantages. A few advantages of VIBRA vibratory hammers are that they can drive piles much more quickly, extract old piles out of the ground, can be used underwater, are light weight, protect the environment (especially animal life), can be used in close proximity to residential areas without noise complaints, and are small and easy to ship.



Working Principle



Hydraulic vibrating pile driver take the advantage of high frequency vibration generated by motor and transit the vibration force to the hydraulic vibrating pile driver for the surrounding soil liquefying & break its structure to reduce the friction; then piling or drilling the pile form the soil ground via excavator. The high frequency vibration is driven by the hydraulic motor of the excavator.

The hydraulic motor drives the two eccentric axes to rotate at high speed in opposite direction. The horizontal force of the eccentric axis cancels each other without vibration. The vertical forces add up to each other, creating a vertical-frequency vibration.



Machinery Characteristics

  • The control system adopts integrated import control valve, each action can be controlled independently, convenient for maintenance and check.
  • The vibration frequency is controlled at two stages, and the second stage vibration is the confluence of double pumps, which greatly increases the excitation force and overcomes the special geology.
  • Mini and light weight design make application flexible.
  • Taking the advantage of the excavator hydraulic system without other driving system requirement, which save fuel oil and transportation cost.
  • The operation is simple and easy to learn. The driver who has the operation foundation of excavator can operate it with practice



Technical Parameter



Item FV-250 FV-280 FV-300 FV-330 FV-350L FV-350 FV-400
Vibration Frequency (rpm) 2500 2800 3200 3200 3200 3200 3200
Operation Pressure (Mpa) 30 32 32 32 32 32 32
Centrifugal Force (KN) 265 335 350 372 435 455 485
Max.Pile Length (m) 10 12 12 12 15 15 18
Arm Weight (kg) 500 500 670 670 670 750 750
Hammer Weight (kg) 1700 1900 2100 2300 2400 2600 2700
Excavator (T) 20-30 20-30 30-35 33-40 35-40 40-45 45-60



Why VIBRA



Apart from body almost all the main parts are imported, Its being almost 11 years we are in this business, we have more than 1000 users in China and abroad, and almost 400 sets sale in the year 2021. We have customers who are using it for more than 3 years without having any problems, our pile drivers life time is nearly 6 to 8 years.







FAQ



Q: Are you a manufacturer?



A: Yes, we have been in this field for more than 12 years, our factory is in Suzhou and you are welcome to visit our unit anytime during working hour period,



Q: Who is your main customer?



A: Our customers are spreading all over the China with some abroad countries as well namely from New Zealand, Malaysia, Indonesia and many more are joining in the list. Brands like XCMG, SANY, Zoomlion, Caterpillar and Hyundai are our valuable customers.



Q: How long is the warranty period ?



A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.



Q: What is the MOQ ?



A: 1 set is available.



Q: What's the payment method ?



A: We accept T/T and D/P payment.



Q: What is the delivery time ?



A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.



Q: Can I have our LOGO on the machine ?



A: Of course you can.



Q: How is your product quality ?



A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".



Q: Can I be your dealer ?



A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!
