6 - 60 Ton Excavator Mounted Hydraulic Vibrating Pile Driver For Piling Construction Projects
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Excavator Mounted Pile Driver::Piling And Pulling | Feature | Easy To Install And Possible To Drive Any Pile |
|---|---|---|---|
| Arm Weight | 500kg | Operation Pressure | 32Mpa |
| Hammer Weight | 1900kg | Vibration Frequency | 3200rpm |
| Centrifugal Force | 335KN | Excavator | 20-30T |
| Maximum Piling Depth | 12 Meter | Color | Blue/Yellow/Red/White, Customized Color Available |
| HS Code | 8430100000 | Material | Steel, Core Materials Are All Imported |
| Highlight | Excavator Mounted Hydraulic Vibrating Pile Driver,60T Hydraulic Vibrating Pile Driver |
||
Product Description

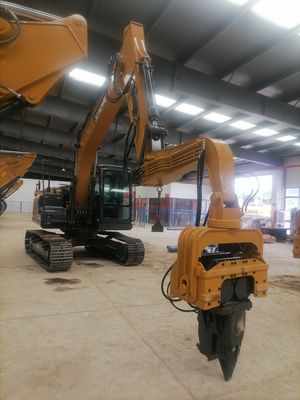

6-60 ton excavator mounted hydraulic vibrating pile driver for piling construction projects
In the market today there are two main types of vibratory hammers - electric and hydraulic. Electric hammers and hydraulic hammers have many differences but in a very basic sense they similar traits. Both electric and hydraulic hammer use a “power unit” that powers the hammer, both have clamps allowing the hammer to connect to the pile, both use wires or hoses to connect the hammer to the power unit. VIBRA offers more than 15 models of hydraulic vibrating pile drivers which can be fitted with excavator from 6 to 60 ton. Customer can drive more than 24 meters of piles using any brand of excavator. VIBRA has very collaboration with almost all leading excavator company in the world including Caterpillar, Volvo, Hyundai, Hitachi, XCMG, SANY, Zoomlion, Doosan and many more. VIBRA provides all the necessary accessories required to set up with the excavator, easy installation and fast pile driving with long lasting performance earns the praises of clients from around the world!
Technical Parameter
| Item | FV-100 | FV-150 |
| Vibration Frequency (rpm) | 2500 | 2800 |
| Operation Pressure (Mpa) | 30 | 32 |
| Centrifugal Force (KN) | 117 | 172 |
| Max.Pile (m) | 6 | 8 |
| Arm (kg) | 160 | 260 |
| Hammer (kg) | 850 | 1100 |
| Excavator (T) | 6-12 | 12-17 |
| Item | FV-250 | FV-280 | FV-300 | FV-330 | FV-350L | FV-350 | FV-400 |
| Vibration Frequency (rpm) | 2800 | 3200 | 3200 | 3200 | 3200 | 3200 | 3200 |
| Operation Pressure (Mpa) | 30 | 32 | 32 | 32 | 32 | 32 | 32 |
| Centrifugal Force (KN) | 265 | 335 | 350 | 372 | 435 | 455 | 485 |
| Max.Pile Length (m) | 10 | 12 | 12 | 12 | 15 | 15 | 18 |
| Arm Weight (kg) | 500 | 500 | 670 | 670 | 670 | 750 | 750 |
| Hammer Weight (kg) | 1700 | 1900 | 2100 | 2300 | 2400 | 2600 | 2700 |
| Excavator (T) | 20-30 | 20-30 | 30-35 | 33-40 | 35-40 | 40-45 | 45-60 |
About Us
Shanghai yekun Machinery Co., Ltd was founded in 2014, A professional company involving in hydraulic vibrating pile driver manufacture, sale and service. Our company take the latest high speed hydraulic vibrating pile driver and its components as the main products. Our products vastly apply for infrastructure & construction industries.
We focus on product quality with the latest industrial technology. The mini hydraulic vibrating pile driver lead the industrial trend. The middle and large hydraulic vibrating pile driver also are highly recognized by our clients. At the same time, we actively cooperated with the engineering machinery factory and construction company to jointly develop more functional professional equipment, and we hired foreign professionals as our technical adviser.
Our company is consisting of a young, enthusiasm professional team. Adhere to client as priority, Quality as first concern, Management as foundation. We are working for the direction to become the most professional and comprehensive hydraulic vibrating pile driver manufacture and service supplier.
FAQ
Q: Are you a manufacturer?
A: Yes, we have been in this field for more than 12 years, our factory is in Suzhou and you are welcome to visit our unit anytime during working hour period,
Q: Who is your main customer?
A: Our customers are spreading all over the China with some abroad countries as well namely from New Zealand, Malaysia, Indonesia and many more are joining in the list. Brands like XCMG, SANY, Zoomlion, Caterpillar and Hyundai are our valuable customers.
Q: How long is the warranty period ?
A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.
Q: What is the MOQ ?
A: 1 set is available.
Q: What's the payment method ?
A: We accept T/T and D/P payment.
Q: What is the delivery time ?
A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.
Q: Can I have our LOGO on the machine ?
A: Of course you can.
Q: How is your product quality ?
A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".
Q: Can I be your dealer ?
A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!
