69 To 78 Ton Excavator Mounted Vibro Hammer For Large Piling Construction Projects

Place of Origin Shanghai, China
Brand Name VIBRA
Certification ISO 9001:2015
Model Number PCF-600
Minimum Order Quantity 1 set
Price 25,000 to 40,000 USD
Packaging Details 8.8 CBM
Delivery Time 7-35 days
Payment Terms T/T, D/P, Western Union, MoneyGram, L/C, D/A
Supply Ability 10 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Large Sheet Pile Driver Vibro Hammer Feature Capable Of Driving Long Sheet Piles
Vibration Frequency 3200 Rpm Operation Pressure 30 Mpa
Centrifugal Force 905 KN Arm Weight 880 Kg
Hammer Weight 3700 Kg Excavator 69~78 Ton
Maximum Piling Depth 24 Meter Eccentric Moment 10.5 Kgm
Color Yellow/Blue/Red/White, Customized Color Available HS Code 8430100000
High Light

Excavator Mounted Vibro Hammer

,

Piling Construction Vibro Hammer

,

78 Ton Vibratory Hammer Pile Driver

Leave a Message
Product Description

69 to 78 Ton excavator mounted vibro hammer for large piling construction projects



In recent years, with the rapid development of the market application of steel plate pile, the application of large steel plate pile, steel protective cylinder and PC mixed pile is becoming more and more widespread. The upgrading of pile driving machine is also accelerating, and the pile driving hammer is developing in the direction of specialization and large scale.



In order to lead the market development trend, our company has successively developed two large pile driving hammerheads, PCF-500 and PCF-600, which are respectively matched on the main engine with a dead weight of 60 tons ~78 tons to meet the construction requirements of 18 meters ~24 meters steel sheet pile, steel guard cylinder and PC pile.



PCF-600 is suitable for matching in the whole machine weight 69~78 tons excavator, the engine power is 350~370kw, the maximum flow of hydraulic pump is 850L.



Technical Parameter



itemmodel PCF-600
Eccentric weight (kg) 79.5
Eccentric moment (kgm) 10.5
Exciting force (kN) 905
No-load amplitude (mm) 9.8
Arm weight (kg) 880
Hammer head weight (kg) 3700
Excavator (T) 69~78
Maximum Piling Depth (m) 24



Features

  • New electric control system, prolong the service life of components, large flow confluence valve, the flow is increased to 700L, the body pipeline is increased to 1 1/2 inches.
  • Super structural parts, increase the connection shaft, ensure the force balance of each part, no weakness.
  • Box bearing self-lubricating system, effectively extend the service life of bearings, ensure core stability.
  • Super strong cast steel chuck, matching 160 cylinder, 30Mpa pressure clamping force can reach 602KN, stable and reliable clamping.
  • Strong vibration power, with the original imported Parker motor, SKF bearings from Sweden and high-end gear components.

Advantages of forced lubrication systems

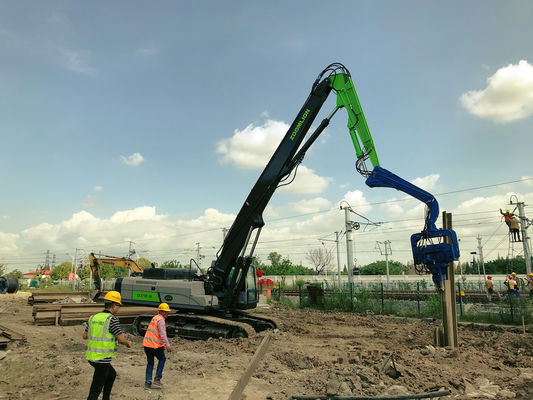

69 To 78 Ton Excavator Mounted Vibro Hammer For Large Piling Construction Projects 0

  • Fully lubricated- The flow of lubricating oil in the connection removes the heat generated by the bearing
  • Forced oil filling- ensures that every bearing position is fully lubricated
  • Extended maintenance- The lubricating oil is forcedly filtered to prolong the replacement interval
  • The extracorporeal- circulation lubricating oil is circulated externally through the box, and the temperature is effectively reduced by 20%

FAQ



Q: Are you a manufacturer?



A: Yes, we have been in this field for more than 12 years, our factory is in Suzhou and you are welcome to visit our unit anytime during working hour period,



Q: Who is your main customer?



A: Our customers are spreading all over the China with some abroad countries as well namely from New Zealand, Malaysia, Indonesia and many more are joining in the list. Brands like XCMG, SANY, Zoomlion, Caterpillar and Hyundai are our valuable customers.



Q: How long is the warranty period ?



A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.



Q: What is the MOQ ?



A: 1 set is available.



Q: What's the payment method ?



A: We accept T/T and D/P payment.



Q: What is the delivery time ?



A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.



Q: Can I have our LOGO on the machine ?



A: Of course you can.



Q: How is your product quality ?



A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".



Q: Can I be your dealer ?



A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!
