PCF 300 Series Vibro Excavator Mounted Hydraulic Vibro Hammer / Pile Driver

Place of Origin Shanghai, China
Brand Name VIBRA
Certification ISO 9001:2015
Model Number PCF-300
Minimum Order Quantity 1 set
Price 16000 to 32000 USD
Packaging Details 5.824 CBM
Delivery Time 7-35 days
Payment Terms T/T, D/P, Western Union, MoneyGram, L/C
Supply Ability 15 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name PCF Vibro Hammer/Pile Diver Feature Heavy Weight Hammer For Hard Soil Piling
Vibration Frequency 3500rpm Operation Pressure 32Mpa
Centrifugal Force 385KN Arm 750kg
Hammer 2750kg Excavator 27~30Ton
Maximum Piling Depth 12 Meter Material Steel, Core Materials Are All Imported
Color Blue/Yellow/Red/White, Customized Color Available Type Hydraulic Vibrating Hammer
HS Code 8430100000 Condition New
High Light

Hydraulic Vibro Pile Driver

,

Excavator Mounted Hydraulic Vibro Hammer

,

PCF 300 Hydraulic Vibro Hammer

Leave a Message
Product Description

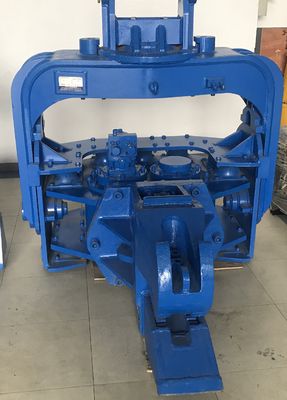

PCF 300 Series Vibro Excavator Mounted Hydraulic Vibro Hammer/Pile Driver



This series of machines are very popular with customers. The structure of the box body is consistent with that of the mainstream Taiwan hammer. The spare parts are interchangeable. The box bearing is easy to be maintained. The fabricated box structure has higher requirements for material strength, welding process and machining accuracy. We have strict control in all aspects of manufacturing to ensure stable quality.

We have successfully manufactured the largest model PCF-500 which matches with CAT 365 excavator.



Equipment Advantage

  • The vibration frequency is high, the exciting force is large, and the strength of each structural part is high
  • Super heavy cast steel fixture, enlarged oil cylinder and connecting rod, high reliability
  • The whole machine configuration is high, and the core parts Rexroth vibration motor are imported from fist-line European brands.



Description



VIBRA vibrating pile hammer is utilizing its high frequency vibration to vibrate pile body with high-speed increase to pass the vertical vibration of mechanical produce to pile which prompting changes in the soil structure around the pile, strength decline. Soil around the piles become liquefaction to lessen frictional opposition between side of the pile and the soil. Then, at that point, utilizing the excavator down power, vibrating pile hammer and pile body weight to sink pile into the soil. When extricating piles, in the state of vibration to take out the pile by utilizing excavator lift power. Excitation power required by pile driving hardware are extensive controlled by site soil, soil condition, dampness content and sort of pile development.



Technical Parameter



               Item                           Model PCF-300 PCF-330 PCF-350 PCF-450 PCF-500
Vibration Frequency rpm 3500 3300 3500 3300 3200
Operation Pressure Mpa 32 32 32 32 32
Centrifugal Force kn 385 420 470 535 585
Max. Pile Length m 12 12 15 18 21
Arm Weight kg 750 750 750 820 820
Hammer Weight kg 2750 2850 2950 3150 3350
Excavator T 27~30 33~38 40~45 47~55 55~70



Working Principle



Hydraulic vibrating pile driver take the advantage of high frequency vibration generated by motor and transit the vibration force to the hydraulic vibrating pile driver for the surrounding soil liquefying & break its structure to reduce the friction; then piling or drilling the pile form the soil ground via excavator. The high frequency vibration is driven by the hydraulic motor of the excavator.

The hydraulic motor drives the two eccentric axes to rotate at high speed in opposite direction. The horizontal force of the eccentric axis cancels each other without vibration. The vertical forces add up to each other, creating a vertical-frequency vibration.



FAQ



Q: Are you a manufacturer?



A: Yes, we have been in this field for more than 12 years, our factory is in Suzhou and you are welcome to visit our unit anytime during working hour period,



Q: Who is your main customer?



A: Our customers are spreading all over the China with some abroad countries as well namely from New Zealand, Malaysia, Indonesia and many more are joining in the list. Brands like XCMG, SANY, Zoomlion, Caterpillar and Hyundai are our valuable customers.



Q: How long is the warranty period ?



A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.



Q: What is the MOQ ?



A: 1 set is available.



Q: What's the payment method ?



A: We accept T/T and D/P payment.



Q: What is the delivery time ?



A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.



Q: Can I have our LOGO on the machine ?



A: Of course you can.



Q: How is your product quality ?



A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".



Q: Can I be your dealer ?



A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!



Q: How to order?



A:
1. Please tell us the model with quantity and other requirement which you needed.
2. We issue the Proforma Invoice to you after confirmed the price and other details.
3. We arrange the order production upon receipt of confirmed PI and your deposit or original L/C.
4. After the goods is ready to ship, we will inform you the shipment date and other informations by email at the same time.
5. We will help to track your goods until you receive them safely.
