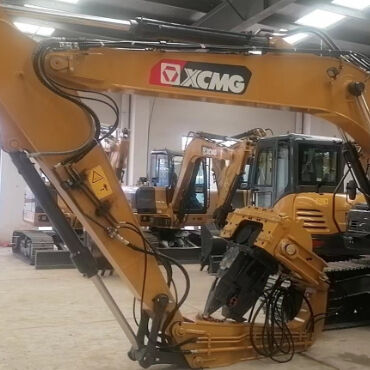

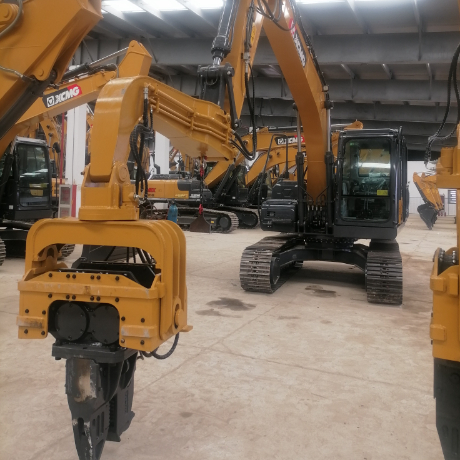

40-45 Ton Excavator Pile Driver | 32 Mpa Hydraulic & Low-Noise Vibrating

  • 40-45 Ton Excavator Pile Driver | 32 Mpa Hydraulic & Low-Noise Vibrating
  • 40-45 Ton Excavator Pile Driver | 32 Mpa Hydraulic & Low-Noise Vibrating
  • 40-45 Ton Excavator Pile Driver | 32 Mpa Hydraulic & Low-Noise Vibrating
  • 40-45 Ton Excavator Pile Driver | 32 Mpa Hydraulic & Low-Noise Vibrating
  • 40-45 Ton Excavator Pile Driver | 32 Mpa Hydraulic & Low-Noise Vibrating
Place of Origin SHANGHAI
Brand Name VIBRA
Model Number FV-350
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details 7.616 CBM
Delivery Time 15-35 days
Payment Terms T/T
Supply Ability 15 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name VIBRA Vibro Hammer Feature Eco-friendly Pile Driver
Vibration 3200 Rpm Pressure 32 Mpa
Centrifugal Force 455 KN Arm 750 Kg
Hammer 2600 Kg Excavator 40-45 T
Color Blue/Yellow, Customized Color Available Type Hydraulic Vibrating Hammer
Condition New And Used Both Available HS Code 84301000
Highlight

Excavator Hydraulic Vibrating Hammer

,

32 Mpa Hydraulic Vibrating Pile Driver

,

45T Hydraulic Vibro Pile Hammer
Leave a Message
Product Description
VIBRA Hydraulic Vibrating Pile Driver (FV Series)
Product Overview

VIBRA Hydraulic Vibrating Pile Driver is a high-performance foundation equipment developed by Ye Kun Construction Machinery Co., Ltd.—a technology-oriented enterprise specializing in the production, sale, and service of vibration piling/extracting machinery, high-speed hydraulic pile drivers, and peripheral accessories. Widely used in global foundation engineering projects, this FV Series (FV-250 to FV-400) integrates innovative design and reliable performance to meet diverse construction needs.

The pile driver operates by transferring high-frequency vertical vibrations to the pile body, altering surrounding soil structure to reduce strength and induce liquefaction—minimizing friction for efficient driving via excavator downward force, hammer weight, and pile weight. For extraction, it uses excavator lifting power while maintaining vibration. With flexible adaptability to site soil conditions, moisture content, and pile type, it stands out as a versatile solution for modern foundation works.

Core Features
  • Multi-Pile Compatibility: Drives and pulls steel sheet piles, cement piles, steel rail piles, iron plates, and H-steel, eliminating the need for multiple specialized devices.
  • Flexible Clamping & Adjustment: 180° positive/negative rotation for precise sheet pile clamping/lowering (adapts to placement direction and site conditions); 2-level adjustable vibration frequency for optimal performance.
  • Enhanced Excitation Force: 2-level double-pump combination design significantly boosts excitation force, ensuring efficient piling even in tough geological environments.
  • Eco-Friendly Noise Reduction: Adopts rubber sheaths to reduce noise and vibration, enabling quiet operation and avoiding damage to nearby buildings—solving environmental challenges on urban sites.
  • Quick Operation Conversion: Easily switches between working modes, suitable for various working environments (municipal, bridges, cofferdams, etc.) and compatible with 20-60 ton excavators (varies by model).
Key Advantages
  • Efficient Pile Handling: Requires less force for pile pulling compared to traditional systems; short working cycles improve overall construction efficiency.
  • Pile & Site Protection: Non-damaging to the top/bottom of steel pipe piles, steel sheet piles, and steel rail piles; safe for operation near existing buildings.
  • Superior Quality Assurance: Strictly manufactured in accordance with "Technical Conditions for Pile Driver Enterprises," with durable components (arm: 500-750 kg; hammer: 1700-2700 kg) for heavy-duty use.
  • Customer-Centric Support: Backed by a young, enthusiastic professional team adhering to "client as priority, quality as first concern"; supports logo customization and flexible procurement (MOQ=1 set).
  • Proven Performance: Stable operation pressure (30-32 Mpa), high centrifugal force (265-485 KN), and max pile length up to 18m—meeting demanding foundation project requirements.
Technical Parameters
Item Model FV-250 FV-280 FV-300 FV-330 FV-350S FV-350 FV-400
Vibration Frequency (rpm) 2500 2800 3200 3200 3200 3200 3200
Operation Pressure (Mpa) 30 32 32 32 32 32 32
Centrifugal Force (KN) 265 335 350 372 435 455 485
Max. Pile Length (m) 10 12 12 12 15 15 18
Arm Weight (kg) 500 500 670 670 670 750 750
Hammer Weight (kg) 1700 1900 2100 2300 2400 2600 2700
Applicable Excavator (T) 20-30 20-30 30-35 33-40 35-40 40-45 45-60
Frequently Asked Questions (FAQ)

Q1: What is the warranty period for the VIBRA pile driver?

A1: The warranty period is 12 months from the date of completion of installation, covering the mainframe and key components (excluding wearing parts).

Q2: What is the minimum order quantity (MOQ)?

A2: The MOQ is 1 set, supporting flexible procurement for small-scale projects and large-batch orders alike.

Q3: What payment methods are accepted?

A3: We accept T/T (Telegraphic Transfer)

Q4: What is the delivery time?

A4: The production lead time is generally 7-35 days, with delivery to Shanghai Port. Overseas clients should account for additional shipping time.

Q5: Can I customize the machine with our company logo?

A5: Of course you can—logo customization is available to enhance your brand visibility.

Q6: How is product quality guaranteed?

A6: All equipment is strictly manufactured and inspected in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises," ensuring reliable performance.

Q7: Can I be your dealer?

A7: We warmly welcome you to become our dealer and look forward to developing long-term partnerships as regional general agents or strategic partners with ambitious individuals/companies.

Q8: How to place an order?

A8: The ordering process is simple and efficient:

  1. Please tell us the required model, quantity, and other specific requirements.
  2. We issue a Proforma Invoice (PI) after confirming the price and details.
  3. We start production upon receipt of the confirmed PI and your deposit
  4. We will inform you of the shipment date and related information once the goods are ready.
  5. We will help track the shipment until you receive the goods safely.
About Ye Kun Construction Machinery Co., Ltd.

Ye Kun Construction Machinery Co., Ltd. is a professional technology-oriented enterprise dedicated to the R&D, production, sale, and service of vibration piling/extracting machinery, high-speed hydraulic pile drivers, and peripheral accessories. With a young, enthusiastic, and professional team, we adhere to the core values of "client as priority, quality as first concern, management as foundation." Our goal is to become the most professional and comprehensive hydraulic vibrating pile driver manufacturer and service supplier in the industry, providing reliable, efficient solutions for global foundation construction partners.
