Universal Side Grip Pile Hammer: Easy Installation on 20T Excavators with Quick Connection
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Side Grip Pile Driver | Feature | Pile Driving In Small Working Areas |
|---|---|---|---|
| Vibration | 3000 Rpm | Centrifugal Force | 332-384 KN |
| Hammer | 1400-1700 Kg | Excavator | 20T |
| Material | Steel, Core Materials Are All Imported | Color | Blue, Customized Color Available |
| HS Code | 84301000 | Size (LxWxH) | 1320X1160X1820 |
| Rotation/tilt Angle | 360/+-30 Degree | Eccentric Torque | 3.07kgm |
| Condition | New | Type | Hydraulic Vibrating Hammer |
| Highlight | Side Grip Vibratory Hammer Pile Driver,20T Excavator Side Grip Pile Driver,Hydraulic Vibratory Hammer Pile Driver |
||
Product Description

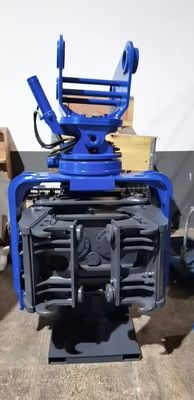

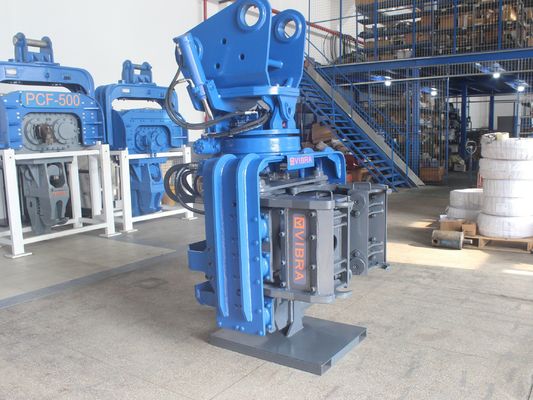

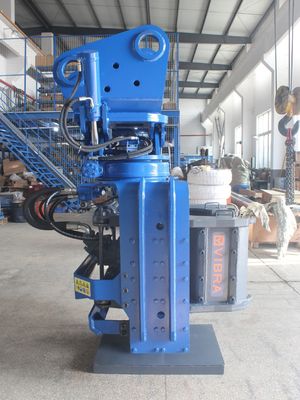

VIBRA Side Grip Hydraulic Vibratory Pile Hammer
Core Keywords: Pile Hammer, Side Grip Pile Hammer, Hydraulic Vibratory Hammer, Excavator Mounted Pile Hammer, Sheet Pile Hammer, Construction Pile Driver
Product Description
The VIBRA Side Grip Hydraulic Vibratory Pile Hammer revolutionizes piling operations with its innovative side and base clip design that enables secure handling, precise tilting, and accurate positioning of piles. Specifically engineered for excavator mounting, this advanced pile hammer eliminates the need for manual pile handling or auxiliary equipment, completing the entire piling cycle with superior efficiency and safety. Its ergonomic design and robust construction ensure long-lasting, trouble-free performance in various construction applications.
Key Features & Advantages
- Innovative Side Grip System: Features dual high-pressure cylinders and interchangeable collets for secure pile handling and precise positioning

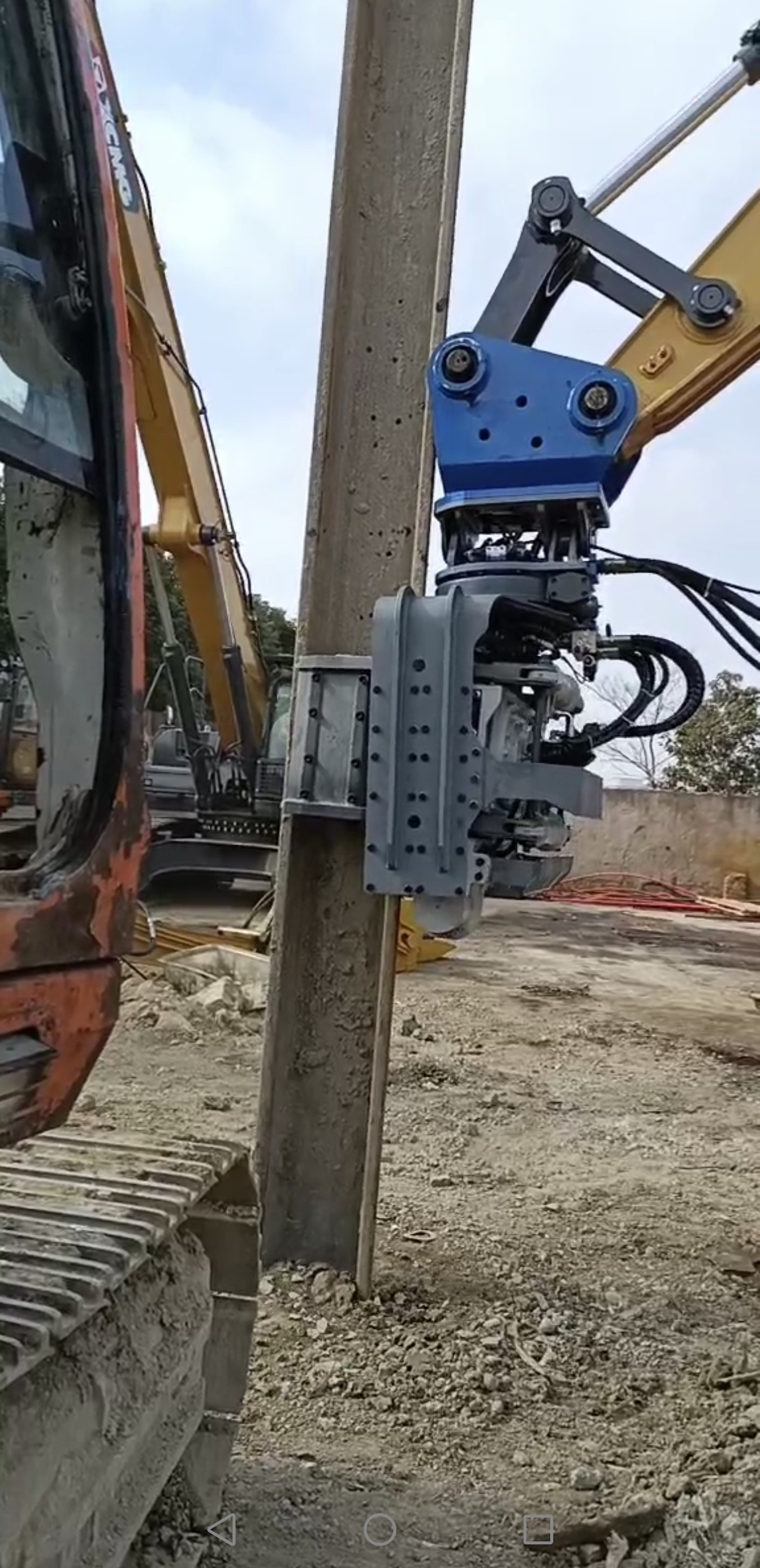

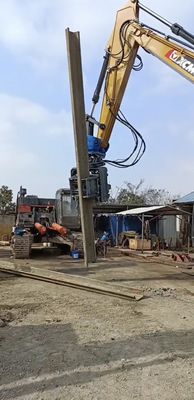

- Complete Piling Cycle: Capable of picking up, pitching, driving, and extracting sheet and tube piles without manual intervention
- Advanced Rotary Oscillation: High-torque slewing support and high-pressure swing cylinder for optimal maneuverability
- Robust Vibration Mechanism: Imported drive motor with high-strength box construction and symmetrical eccentric arrangement
- Ergonomic Excavator Integration: Easily operated by excavator operators using the machine's hydraulic system
- Time and Cost Efficiency: Eliminates need for auxiliary equipment and manual pile handling
- Premium Components: Features compact central swivel, high-pressure accumulator, and one-piece cast steel components
Technical Specifications
- Drive System: Hydraulic motor powered by excavator system
- Control System: Split control valve with front oil circuit interface
- Gantry Structure: One-piece design with high-pressure accumulator
- Holding System: Dual high-pressure cylinders with simultaneous clamping/release
- Vibration Body: High-speed gear system with optimized oil drainage
- Compatibility: Designed for standard excavator mounting
Frequently Asked Questions (FAQ)
Q: What is the warranty period for the side grip pile hammer?
A: We provide a 12-month warranty from installation date, covering main components and host machine (excluding regular wear parts).
Q: What is the minimum order quantity?
A: MOQ is 1 set, with flexible ordering options available.
Q: What payment methods do you accept?
A: We accept T/T and D/P payments with secure transaction processing.
Q: What is the typical delivery timeline?
A: Delivery takes 7-35 days to Shanghai Port, with additional shipping time for international destinations.
Q: Can we add our company logo to the equipment?
A: Yes, we offer complete logo customization services for all our pile hammers.
Q: How is product quality ensured?
A: All equipment strictly follows national "Technical Conditions for Pile Driver Enterprises" standards with comprehensive quality control.
Q: Do you offer dealership opportunities?
A: We welcome dealership applications and are seeking regional partners for strategic collaboration and market development.
Q: What is the ordering process?
A: Our streamlined process includes: requirement confirmation, Proforma Invoice issuance, production initiation upon deposit/L-C receipt, shipping coordination, and continuous delivery tracking until safe receipt.
Unique Value Proposition
The VIBRA Side Grip Pile Hammer stands out from conventional pile drivers by combining innovative gripping technology with advanced vibration mechanics. Its ability to handle the complete piling cycle autonomously significantly reduces labor costs and project timelines while enhancing worksite safety. The integration of premium components and ergonomic design ensures reliable performance that exceeds industry standards, making it the ideal choice for modern construction projects requiring precision and efficiency.
