18 Meter Sheet Pile Driver 3300rpm For Highway Roads Bridge Construction Project

18 Meter Sheet Pile Driver 3300rpm For Highway Roads Bridge Construction Project
18 Meter Sheet Pile Driver 3300rpm For Highway Roads Bridge Construction Project

Large Image :  18 Meter Sheet Pile Driver 3300rpm For Highway Roads Bridge Construction Project

Product Details:
Place of Origin: Shanghai, China
Brand Name: VIBRA
Certification: ISO 9001:2015
Model Number: PCF-450
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 23,000 to 32,000 USD
Packaging Details: 7.616 CBM
Delivery Time: 7-35 days
Payment Terms: L/C, T/T, D/P, Western Union, MoneyGram
Supply Ability: 10 set/month
Detailed Product Description
Vibration Frequency: 3300 Rpm Operation Pressure: 32 Mpa
Centrifugal Force: 535 Kn Maximum Pile: 18 M
Arm: 820 Kg Hammer: 3150 Kg
Excavator: 47~55 T Color: Blue/Yellow, Customized Color Available
Material: Steel, Core Materials Are All Imported Condition: New And Used Both Available
Type: Hydraulic Vibrating Hammer HS Code: 84301000
High Light:

Highway Roads Construction Sheet Pile Driver

,

18m Sheet Pile Driver For Excavator

,

3300rpm Hydraulic Pile Driver For Excavators

Ye Kun Construction Machinery Co., Ltd. is one specialized is engaged in the vibration sinking pile drawing machine equipment production, sale and service of technology-oriented enterprises, products mainly emerging a high-speed hydraulic pile drawing machine and peripheral accessories, equipment widely used in all kinds of foundation engineering construction.



After a short period of development, the company won the recognition of customers, and the annual sales growth doubled. Marketing the country with the VIBRA brand and export it. The company′s production of mini hydraulic pile driver, vibration hammer and other products quality has reached the advanced level of the industry.



The company has a young and enterprising team cooperation, in order to respect the customer value as self value, to become the most reliable, the most comprehensive, the most professional vibration pile machine equipment and service suppliers and make unremitting efforts.

Working Principle

Hydraulic vibrating pile driver take the advantage of high frequency vibration generated by motor and transit the vibration force to the hydraulic vibrating pile driver for the surrounding soil liquefying & break its structure to reduce the friction; then piling or drilling the pile form the soil ground via excavtor. The high frequency vibration is driven by the hydraulic motor of the excavator.

The hydraulic motor drives the two eccentric axes to rotate at high speed in opposite direction. The horizontal force of the eccentric axis cancels each other without vibration. The vertical forces add up to each other, creating a vertical-frequency vibration.

Product Details

VIBRA vibrating pile hammer is utilizing its high frequency vibration to vibrate pile body with high-speed increase to pass the vertical vibration of mechanical produce to pile which prompting changes in the soil structure around the pile, strength decline. Soil around the piles become liquefaction to lessen frictional opposition between side of the pile and the soil. Then, at that point, utilizing the excavator down power, vibrating pile hammer and pile body weight to sink pile into the soil. When extricating piles, in the state of vibration to take out the pile by utilizing excavator lift power. Excitation power required by pile driving hardware are extensive controlled by site soil, soil condition, dampness content and sort of pile development.

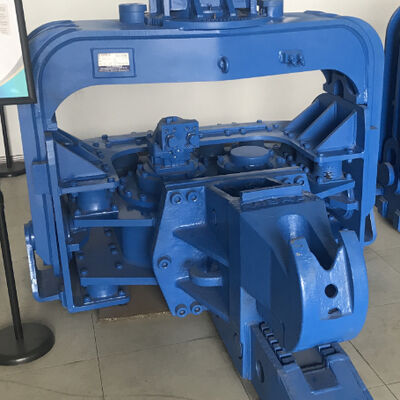

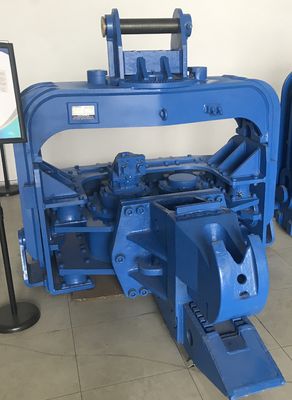

This series of machines are popular with clients. The structure of the hammer body is like of the standard Taiwan pile driver. The spare parts are replaceable. The box bearing is broken and easy to be kept up. The structure of the box has higher necessities for material strength, welding process and machining accuracy. We have extreme control in all pieces of manufacturing to ensure stable quality. We have viably manufactured the greatest model pcf-500, which matches with Cat 365.



Item Model PCF-300 PCF-330 PCF-350 PCF-450 PCF-500
Vibration rpm 3500 3300 3500 3300 3200
Operation Pressure Mpa 32 32 32 32 32
Centrifugal Force kn 385 420 470 535 585
Max. Pile Length m 12 12 15 18 twenty one
Arm Weight kg 750 750 750 820 820
Hammer Weight kg 2750 2850 2950 3150 3350
Excavator Operating Weight T 27~30 33~38 40~45 47~55 55~70





Equipment Advantage

  • Pile driving steel sheet pile, cement pile, steel rail pile, iron plate, H steel
  • Quick converting operation; Applied to various working environments.
  • Compared to other systems, less force required for pile pulling
  • Not damage the top or bottom of steel pipe pile, steel plate pile and steel rail pile.
  • Not damage the building even often work near it.
  • Adopted Rubber sheath to reduce noise and vibration, the operation is quiet and the working period is short; It is helpful to overcome environmental problems.
  • According to the placement direction of sheet pile and site conditions, the sheet pile can be clamped or lowered by positive and negative rotation of 180 °. The vibration frequency can be adjusted by two levels, and the two-level double pumps are combined to greatly increase the excitation force.
  • The vibration frequency is high, the stimulating force is huge, and the strength of each fundamental part is high
  • Extremely profound cast steel mechanical assembly, expanded oil chamber and interfacing bar, high trustworthiness
  • The whole machine configuration is high, and the main parts of Rexroth vibration motor are imported first-line brands



18 Meter Sheet Pile Driver 3300rpm For Highway Roads Bridge Construction Project 0



Area of ​​​​Application

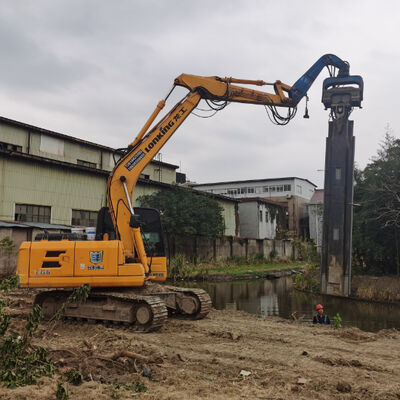

By assisting different clasps, it can sink and pull out heap of wood, solid pile, steel sheet pile, steel pipe pile, H-shaft steel, steel shield, etc.
Applicable for any 6-60 ton excavator of any brand for piling
Used in stream bank, house foundation, metropolitan association, interface, photovoltaic pile and various foundations advancement fields



18 Meter Sheet Pile Driver 3300rpm For Highway Roads Bridge Construction Project 1

FAQ



Q: How long is the warranty period ?



A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.



Q: What is the MOQ ?



A: 1 set is available.



Q: What's the payment method ?



A: We accept T/T and D/P payment.



Q: What is the delivery time ?



A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.



Q: Can I have our LOGO on the machine ?



A: Of course you can.



Q: How is your product quality ?



A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".



Q: Can I be your dealer ?



A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!



Q: How To Order?



A:
1. Please tell us the model with quantity and other requirement which you needed.
2. We issue the Proforma Invoice to you after confirmed the price and other details.
3. We arrange the order production upon receipt of confirmed PI and your deposit or original L/C.
4. After the goods is ready to ship, we will inform you the shipment date and other informations by email at the same time.
5. We will help to track your goods until you receive them safely.
