Eco-Friendly 3.15T Pile Driver: Excavator-Mounted for Sustainable & Low-Noise Construction

  • Eco-Friendly 3.15T Pile Driver: Excavator-Mounted for Sustainable & Low-Noise Construction
  • Eco-Friendly 3.15T Pile Driver: Excavator-Mounted for Sustainable & Low-Noise Construction
  • Eco-Friendly 3.15T Pile Driver: Excavator-Mounted for Sustainable & Low-Noise Construction
  • Eco-Friendly 3.15T Pile Driver: Excavator-Mounted for Sustainable & Low-Noise Construction
  • Eco-Friendly 3.15T Pile Driver: Excavator-Mounted for Sustainable & Low-Noise Construction
Place of Origin Shanghai, China
Brand Name VIBRA
Model Number PCF-450
Minimum Order Quantity 1
Price Negotiation
Delivery Time 7-35 days
Payment Terms T/T
Supply Ability 10 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Vibration Frequency 3300 Rpm Operation Pressure 32 Mpa
Centrifugal Force 535 Kn Maximum Pile 18 M
Arm 820 Kg Hammer 3150 Kg
Excavator 47~55 T Color Blue
Highlight

3.15T Excavator Mounted Pile Driver

,

18M Excavator Mounted Pile Driver

,

3.15T excavator sheet pile driver
Leave a Message
Product Description

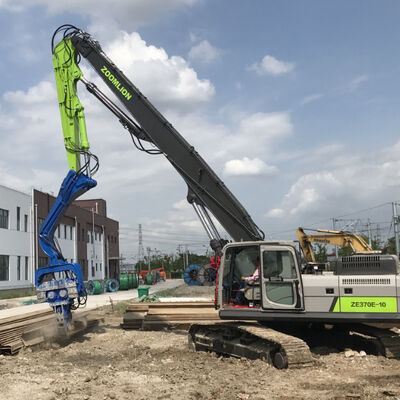

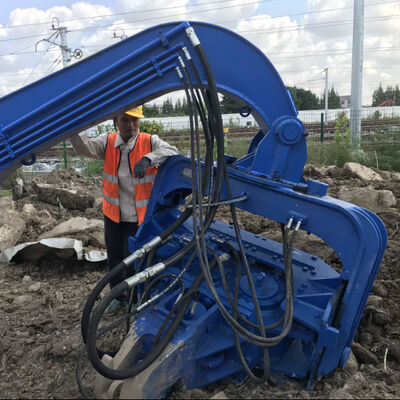

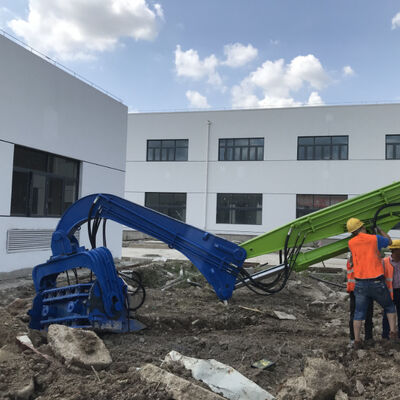

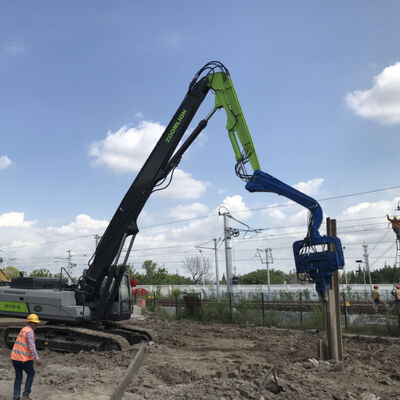

Eco-Friendly 3.15T Pile Driver: Excavator-Mounted for Sustainable & Low-Noise Construction

Core Product Keywords: Hydraulic Vibratory Pile Driver, Pile Driver and Extractor, High-Speed Pile Driver, Excavator-Mounted Pile Driver, Interchangeable Pile Hammer, Construction Pile Driver.

Product Overview

Shanghai Yekun Construction Machinery Co., Ltd. specializes in the development and manufacturing of high-performance vibratory pile driving equipment. Our flagship product is a high-speed hydraulic pile driver designed for efficiency and versatility in diverse infrastructure projects. Utilizing a powerful vibration principle, it enables rapid piling with minimal environmental disruption.

Working Principle

The pile driver harnesses hydraulic power from the excavator to generate high-frequency vibrations. This motion is transmitted to the pile head, causing surrounding soil to liquefy and break structure, thereby drastically reducing friction. The synchronized rotation of dual eccentric shafts creates a powerful vertical vibratory force, allowing for smooth pile penetration or extraction with horizontal forces canceling each other out.

Key Features & Advantages

  • High-Efficiency Vibration System: Delivers intense vibratory force (up to 585 KN) and high frequency (up to 3500 rpm) for fast and effective pile driving in various soil conditions.

  • Universal Compatibility & Flexibility: Easily mounts on any 6-60 ton excavator. Compatible with multiple pile types (steel sheet, concrete, H-beam, pipe piles) through interchangeable clamps.

  • Durable & Interchangeable Design: Features a robust fabricated box structure with heavy-duty cast steel fixtures. Designed to be fully interchangeable with parts from standard Taiwan-made pile drivers, ensuring easy maintenance and part replacement.

  • Premium Core Components: Equipped with high-quality imported parts, including first-line brand Rexroth vibration motors, ensuring reliable performance and extended operational life.

  • Proven Heavy-Duty Performance: Includes the PCF-500 model, engineered to match Caterpillar 365 excavators, demonstrating capability for the most demanding large-scale projects.

Technical Parameters: PCF Series

ModelVibration (RPM)Centrifugal Force (KN)Max. Pile Length (m)Excavator Weight (T)Total Weight (kg)
PCF-30035003851227~303500
PCF-33033004201233~383600
PCF-35035004701540~453700
PCF-45033005351847~553970
PCF-50032005852155~704170

Application Scope

Ideal for a wide range of foundation projects including waterway embankments, building foundations, municipal pipeline networks, bridge construction, photovoltaic pile installations, and various other civil engineering applications.

Frequently Asked Questions (FAQ)

  • Q: What is the warranty period?
    A: We provide a 12-month warranty from the installation completion date, covering the mainframe and key components (excluding standard wearing parts).

  • Q: What is the minimum order quantity?
    A: The minimum order quantity is 1 set.

  • Q: What payment methods are accepted?
    A: We accept Telegraphic Transfer (T/T).

  • Q: What is the delivery time?
    A: Standard delivery time is 7-35 days to Shanghai Port. International shipping time varies based on destination.

  • Q: Is custom branding available?
    A: Yes, we can apply your company logo to the equipment upon request.

  • Q: How is product quality ensured?
    A: All equipment is manufactured in strict compliance with the national "Technical Conditions for Pile Driver Enterprises" standards, with rigorous quality control throughout production.

  • Q: Do you offer dealership opportunities?
    A: We welcome dealership inquiries and look forward to developing partnerships with regional agents and strategic partners.
