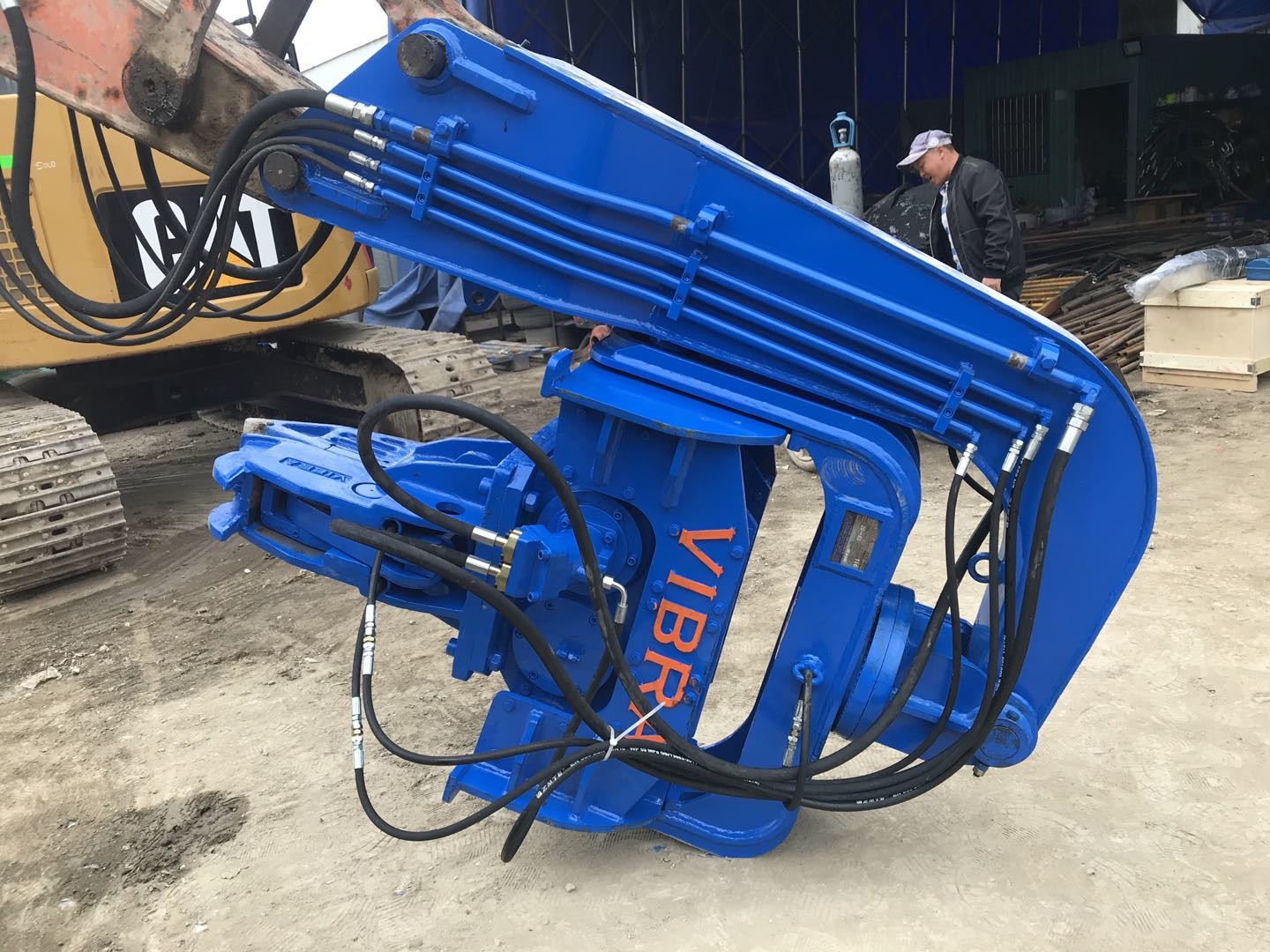

2500RPM 20T Vibrating Hydraulic Sheet Excavator Mounted Pile Driver

Place of Origin Shanghai, China
Brand Name VIBRA
Model Number FV-150
Minimum Order Quantity 1 set
Price 14,900 USD
Packaging Details 3.19 CBM
Delivery Time 7-35 days
Payment Terms L/C, T/T, D/P
Supply Ability 35 sets

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Excavator Mounted Pile Driver Color Blue
Vibration Frequency 2500 Rpm Operation Pressure 30 Mpa
Hammer Weight 1100 Kg Arm Weight 260 Kg
Max.Pile Length 8 M Centrifugal Force 172 Kn
Excavator 12-20 Ton Hanging Amplitude 6.4 Mm
Eccentric Moment 1.9 Kgm
High Light

20T Excavator Mounted Pile Driver


2500rpm Excavator Mounted Pile Driver


2500rpm hydraulic sheet pile driver

Leave a Message
Product Description



1. Adopted Rubber sheath to reduce noise and vibration, the working period is short; It is helpful to overcome environmental problems.
2. According to the placement direction of sheet pile and site conditions, the sheet pile can be clamped or lowered by positive and negative rotation of 180°.
3. Having small volume and light weight Hydraulic motor, but it can provide high power and high speed.
4. Vibration frequency can be adjusted by variable pump.
5. Pile driving steel sheet pile, cement pile, steel rail pile, iron plate, H steel
6. Quick converting operation; Applied to various working environments.
7. Compared to other systems, less force required for pile pulling


Technical Parameter


Item FV-250 FV-280 FV-300 FV-330 FV-350L FV-350 FV-400
Vibration Frequency (rpm) 2500 2800 3200 3200 3200 3200 3200
Operation Pressure (Mpa) 30 32 32 32 32 32 32
Centrifugal Force (KN) 265 335 350 372 435 455 485
Max.Pile Length (m) 10 12 12 12 15 15 18
Arm Weight (kg) 500 500 670 670 670 750 750
Hammer Weight (kg) 1700 1900 2100 2300 2400 2600 2700
Excavator (T) 20-30 20-30 30-35 33-40 35-40 40-45 45-60


2500RPM 20T Vibrating Hydraulic Sheet Excavator Mounted Pile Driver 0

About Us


Shanghai yekun Machinery Co., Ltd was founded in 2014, A professional company involving in hydraulic vibrating pile driver manufacture, sale and service. Our company take the latest high speed hydraulic vibrating pile driver and its components as the main products. Our products vastly apply for infrastructure & construction industries.


We focus on product quality with the latest industrial technology. The mini hydraulic vibrating pile driver lead the industrial trend. The middle and large hydraulic vibrating pile driver also are highly recognized by our clients. At the same time, we actively cooperated with the engineering machinery factory and construction company to jointly develop more functional professional equipment, and we hired foreign professionals as our technical adviser.


Our company is consisting of a young, enthusiasm professional team. Adhere to client as priority, Quality as first concern, Management as foundation. We are working for the direction to become the most professional and comprehensive hydraulic vibrating pile driver manufacture and service supplier.




Q: Any warranty?

A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.


Q: What is the MOQ?

A: 1 set.


Q: What's the payment method?

A: L/C, T/T and D/P payment.


Q: What is the delivery time?

A: The delivery time is generally 7-32 days, and arrive at Shanghai Port.


Q: Can I have our LOGO on the machine?

A: Of course you can.


Q: How is your product quality?

A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".


Q: Can I be your dealer?

A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!
