Stable Running Hydraulic Pile Driving Equipment Quick Converting Operation

Place of Origin SHANGHAI
Brand Name VIBRA
Model Number FV-150
Minimum Order Quantity 1 set
Price 15000 to 20000 USD
Packaging Details 2.3 CBM
Delivery Time 7-35 days
Payment Terms L/C, T/T, D/P
Supply Ability 40 Set/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name Hydraulic Pile Driving Equipment Feature Stable Running
Operation Pressure 30 Mpa Arm Weight 260 Kg
Hammer Weight 1100 Kg Vibration Frequency 2500 Rpm
Centrifugal Force 172 Kn Excavator 12~17 Ton
High Light

hydraulic impact hammer pile driver


hydraulic pile driving equipment

Leave a Message
Product Description

Low Noise Hydraulic Pile Driver Applied To Various Working Environments




To ensure the high reliability of our products which engineering machines should possess, we improve the design and use very reliable materials or components which we select carefully in the process of purchasing.

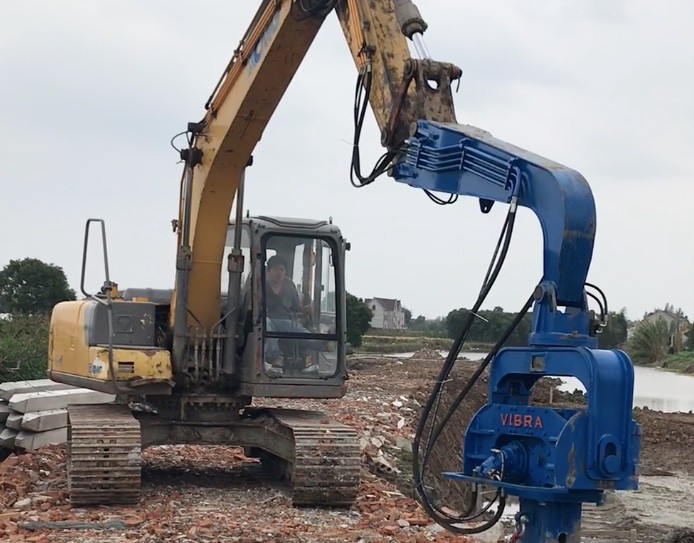

Stable Running Hydraulic Pile Driving Equipment Quick Converting Operation 0

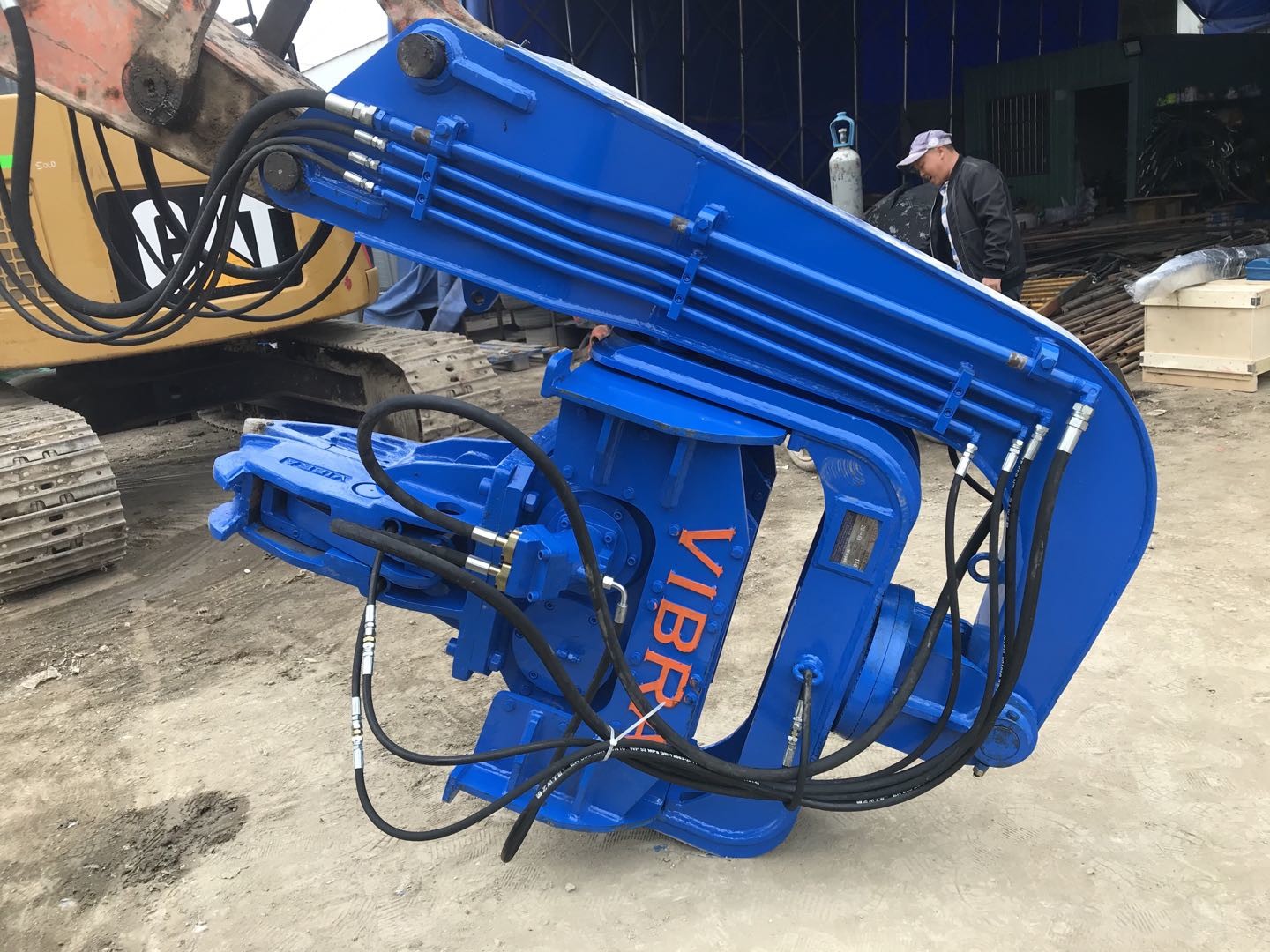

Stable Running Hydraulic Pile Driving Equipment Quick Converting Operation 1




  • Pile driving steel sheet pile, cement pile, steel rail pile, iron plate, H steel
  • Quick converting operation; Applied to various working environments.
  • Compared to other systems, less force required for pile pulling
  • Not damage the top or bottom of steel pipe pile, steel plate pile and steel rail pile.
  • Not damage the building even often work near it.
  • Adopted Rubber sheath to reduce noise and vibration, the operation is quiet and the working period is short; It is helpful to overcome environmental problems.
  • According to the placement direction of sheet pile and site conditions, the sheet pile can be clamped or lowered by positive and negative rotation of 180 °. The vibration frequency can be adjusted by two levels, and the two-level double pumps are combined to greatly increase the excitation force.
  • Hydraulic motor has small volume and light weight, but it can output high power and high speed.
  • Vibration frequency can be adjusted by variable pump. It can be used in excavator operation of any brand, and can meet different work requirements only after changing chucks.

Technical Parameter


Item FV-150 FV-250 FV-280 FV-300 FV-330
Vibration Frequency (rpm) 2500 2500 2800 3200 3200
Operation Pressure (Mpa) 30 30 32 32 32
Centrifugal Force (KN) 172 265 335 350 372
Max.Pile Length (m) 8 10 12 12 12
Arm Weight (kg) 260 500 500 670 670
Hammer Weight (kg) 1100 1700 1900 2100 2300
Excavator (T) 12~17 20-30 20-30 30-35 33-40

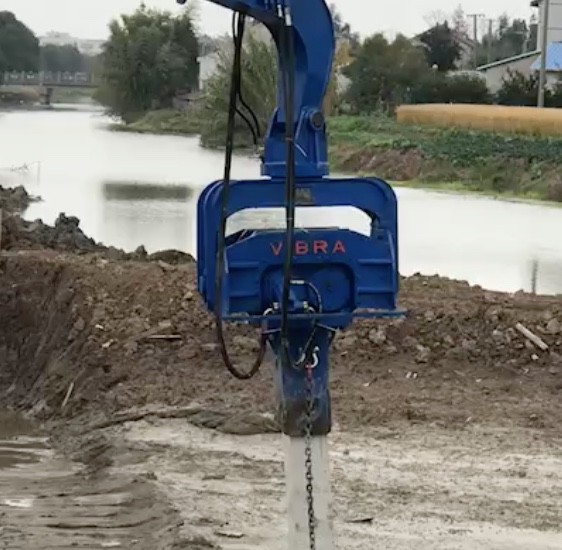

Stable Running Hydraulic Pile Driving Equipment Quick Converting Operation 2


About Us


Shanghai Yekun Construction Machinery Co., Ltd. was founded in 2014, A professional company involving in hydraulic vibrating pile driver manufacture, sale and service. Our company take the latest high speed hydraulic vibrating pile driver and its components as the main products. Our products vastly apply for infrastructure & construction industries.


We focus on product quality with the latest industrial technology. The mini hydraulic vibrating pile driver lead the industrial trend. The middle and large hydraulic vibrating pile driver also are highly recognized by our clients. At the same time, we actively cooperated with the engineering machinery factory and construction company to jointly develop more functional professional equipment, and we hired foreign professionals as our technical adviser.


Our company is consisting of a young, enthusiasm professional team. Adhere to client as priority, Quality as first concern, Management as foundation. We are working for the direction to become the most professional and comprehensive hydraulic vibrating pile driver manufacture and service supplier.

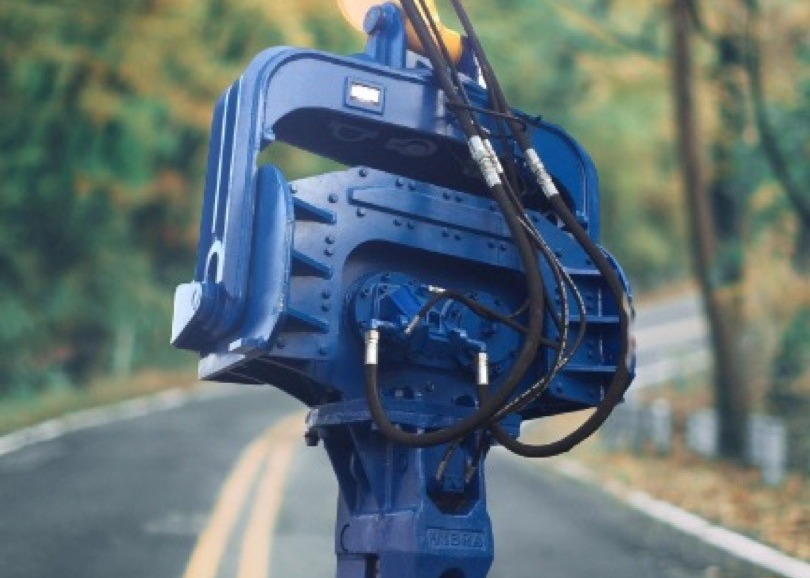

Stable Running Hydraulic Pile Driving Equipment Quick Converting Operation 3
