HDY12 Hydraulic Impact Hammer For High Efficiency Drilling Performance China
Product Details
| Highlight | HDY12 hydraulic impact hammer,high efficiency drilling hammer,China hydraulic impact hammer |
||
|---|---|---|---|
Product Description

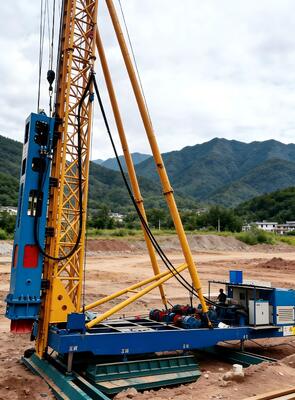

The HDY12 Hydraulic Impact Hammer is a powerful and reliable piece of foundation construction equipment, representing the latest in energy-saving and environmentally conscious technology. As a premier Hydraulic impact hammer China product, it is engineered to deliver exceptional performance across various geological conditions. It is specifically designed for driving prefabricated pipe piles and steel pipe piles, making it an ideal choice for a wide range of construction projects in Southeast Asia, India, and Russia.
Unmatched Power and Performance
The core of the HDY12's capability is its ability to deliver a maximum impact energy of 180 kN.m. This ensures high impact energy per blow Hot Sale, providing the necessary force to drive piles quickly and effectively, even in challenging soil conditions. With a hammer core weight of 12,000 kg and a striking frequency of 30-80 bpm, the HDY12 guarantees high productivity and efficiency on any job site. Its robust construction and powerful performance make it a top choice for contractors seeking reliable and fast results.
Superior Efficiency and Reliability
The HDY12 is designed for high efficiency drilling performance China standards. It is powered by a high-efficiency hydraulic system that can be matched with either the E180 electric power station (132 kW motor) or the D360 diesel power station (264 kW engine). This flexibility allows contractors to choose the best power source for their specific project needs and site conditions. The system incorporates international first-class brand components, such as Rexroth main oil pumps and valves, ensuring stability, reliability, and energy savings. This focus on quality components translates to lower failure rates and extended equipment service life.
Eco-Friendly and Quiet Operation
A key advantage of the HDY series is its commitment to environmental responsibility. The HDY12 offers low noise eco friendly operation Made In China, significantly reducing noise pollution compared to traditional piling methods. This makes it perfectly suited for projects in urban areas, near hospitals, or schools where noise control is critical. The hydraulic system is also designed to be clean and efficient, with features like a high-power three-in-one oil cooler and a high-level fuel tank design that improves heat dissipation and solves the common problem of high oil temperatures, further enhancing its eco-friendly profile.
Advanced Design and Easy Operation
The HDY12 is built for both performance and user-friendliness. Its design includes a robust landing gear for easy raising and lowering, and a durable hammer body that supports the entire mechanical structure. The hydraulic system is controlled by an advanced electrical system, making operation simple and precise. Furthermore, the use of high-quality components like Trelleborg seals in the hydraulic cylinder and a Hydac oil return filter ensures high system cleanliness and long-term durability, minimizing maintenance requirements and maximizing uptime.
Technical Parameters (HDY12)
| Item | Specification |
|---|---|
| Max. Impact Energy | 180 kN.m |
| Hammer Core Stroke | 1500 mm |
| Striking Frequency | 30-80 bpm |
| Striking Body Weight | 12000 kg |
| Total Height (A) | 7270 mm |
| Total Height (B) | 8430 mm |
| Overall Width (C) | 1460 mm |
| Overall Width (D) | 1260 mm |
| Hydraulic Hammer Weight | 20200 kg |
| Landing Gear Weight | 500 kg |
Frequently Asked Questions (FAQ)
Q: What kind of power stations can be used with the HDY12?
A: The HDY12 is compatible with both the E180 electric power station and the D360 diesel power station, offering flexibility for different job site requirements and contributing to its high efficiency drilling performance China.
A: The HDY12 is compatible with both the E180 electric power station and the D360 diesel power station, offering flexibility for different job site requirements and contributing to its high efficiency drilling performance China.
Q: What are the environmental benefits of the HDY12?
A: The HDY12 is designed for low noise eco friendly operation Made In China. It produces significantly less noise than conventional hammers and features an efficient hydraulic system that reduces pollution and energy consumption.
A: The HDY12 is designed for low noise eco friendly operation Made In China. It produces significantly less noise than conventional hammers and features an efficient hydraulic system that reduces pollution and energy consumption.
Q: How powerful is the HDY12 hammer?
A: The HDY12 delivers a maximum impact energy of 180 kN.m. This high impact energy per blow Hot Sale feature ensures rapid pile driving, making it a highly productive and sought-after piece of equipment.
A: The HDY12 delivers a maximum impact energy of 180 kN.m. This high impact energy per blow Hot Sale feature ensures rapid pile driving, making it a highly productive and sought-after piece of equipment.
Q: Who manufactures the HDY series hammers?
A: The HDY series is a leading Hydraulic impact hammer China product, manufactured with high-quality international components to ensure reliability, durability, and top-tier performance for demanding construction applications.
A: The HDY series is a leading Hydraulic impact hammer China product, manufactured with high-quality international components to ensure reliability, durability, and top-tier performance for demanding construction applications.
