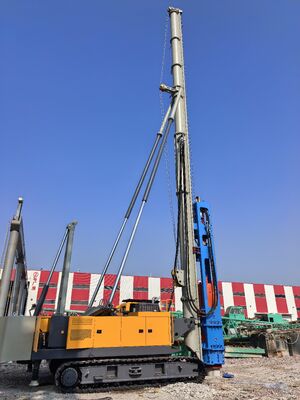

Hydraulic Impact Hammer – Low Noise Eco Friendly Operation & High Impact Energy Per Blow

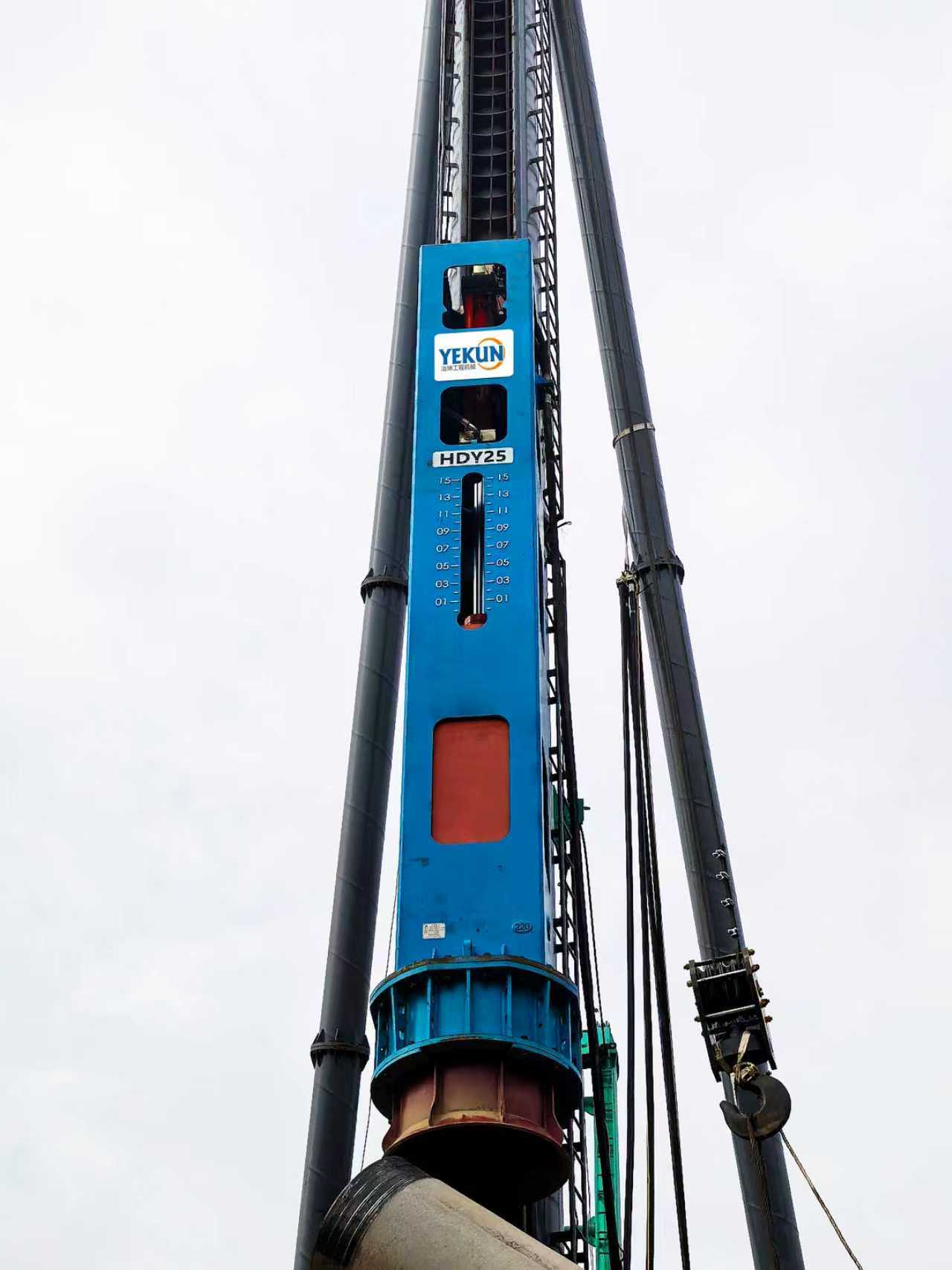

The HDY25 is a modern hydraulic impact hammer engineered to meet the rigorous demands of foundation projects across Southeast Asia, India, and Russia. Whether you are driving precast concrete piles or steel pipe piles in urban centers, remote infrastructure sites, or extreme climates, this hammer delivers consistent power with minimal environmental impact. Designed to match E and D series power stations, the HDY25 offers seamless integration with excavators, making it a versatile asset for contractors who need reliable, transportable, and cost-effective piling equipment.

The HDY25 is built with low noise eco friendly operation as a core design principle. Unlike traditional diesel hammers that produce high noise levels and exhaust fumes, this hydraulic impact hammer runs with dramatically reduced sound emissions and zero combustion pollution. This makes it ideal for residential areas, night work, and environmentally protected zones – a critical advantage for projects in densely populated Indian cities, coastal Southeast Asia, and Russian urban renewal programs. Operators benefit from a safer, more comfortable working environment, and contractors avoid costly noise violation penalties.

At the heart of the HDY25 lies a sophisticated dual pump flow merging system. Two Rexroth A11VLO260 plunger pumps are connected in series with a Parker T67DB double vane pump, creating a high-efficiency pump set that delivers abundant hydraulic flow exactly when needed. The system operates at a rated current of only 200-250A, allowing the use of lightweight 120-150 mm² aluminum cables. This reduces cable weight, lowers worker fatigue, and cuts power consumption significantly. For contractors in markets with unstable power supply or high electricity costs, this directly improves project profitability.

With a maximum strike energy of 375 kN.m and a striking body weight of 25,000 kg, the HDY25 provides high impact energy per blow that drives piles through dense soils, gravel layers, and even soft rock. The hammer’s total operating weight reaches 38,000 kg, ensuring exceptional stability during high-frequency piling. Whether you are installing deep foundation piles for bridges in Siberia or driving pipe piles for port facilities in Indonesia, this energy-per-blow capability translates to faster penetration, fewer hammer cycles, and extended component life.

Different soil types and pile diameters require different piling strategies. The HDY25 features adjustable impact frequency control with a range of 20 to 70 blows per minute (bpm). This allows the operator to fine-tune the hammer’s rhythm – lower frequency for hard soils to maximize energy transfer per blow, higher frequency for softer ground to accelerate progress. The frequency adjustment is integrated into the electrical control system, giving real-time feedback and easy on-the-fly changes. This flexibility is especially valuable in markets like India and Russia, where site geology can vary dramatically within a single project.

The HDY25 incorporates premium sealing and filtration components to ensure long service life. Trelleborg seals on the hydraulic cylinder minimize leakage, while Hedeke return filters provide high-flow, high-accuracy filtration (NAS 8-9 cleanliness). A high-power triple oil cooler with thermostat control completely solves overheating issues, a common problem in tropical Southeast Asia and during Russian summer seasons. The power station features a raised fuel tank and internal forced ventilation, improving pump suction and heat dissipation. These design choices reduce downtime, lower maintenance costs, and keep the hammer operating at peak performance for years.

Q1: Can the HDY25 work in extreme cold (Russia) or high heat (India/SE Asia)?
Yes. The high-power triple oil cooler with thermostat control manages heat in tropical climates, and the hydraulic system uses low-viscosity oil grades suitable for sub-zero operation. The engine and components are selected for reliable startup down to -15°C without additional heaters.

Q2: Does the hammer require special excavator modifications?
No. The HDY25 is designed as an excavator-mounted pile driver, matching E and D series power stations. It connects via standard brackets and hydraulics. Most 30-50 ton class excavators can mount it with minimal modification.

Q3: How does low noise eco friendly operation compare to diesel hammers?
The HDY25 operates at approximately 20-25 dB(A) lower than a diesel hammer of equivalent energy. It produces no exhaust smoke, making it compliant with urban construction noise and emission regulations in Mumbai, Bangkok, Jakarta, Moscow, and St. Petersburg.

Q4: What maintenance is required for the dual pump flow merging system?
Routine oil and filter changes every 1,000-1,500 hours. The Hedeke return filters have a visual clogging indicator. All pumps and valves are internationally sourced for easy spare parts availability.

Q5: Can the adjustable impact frequency control be automated?
The current system uses operator-adjusted settings via the control panel. An optional sensor feedback loop can be integrated for automatic frequency optimization based on pile penetration resistance – contact factory for customization.
