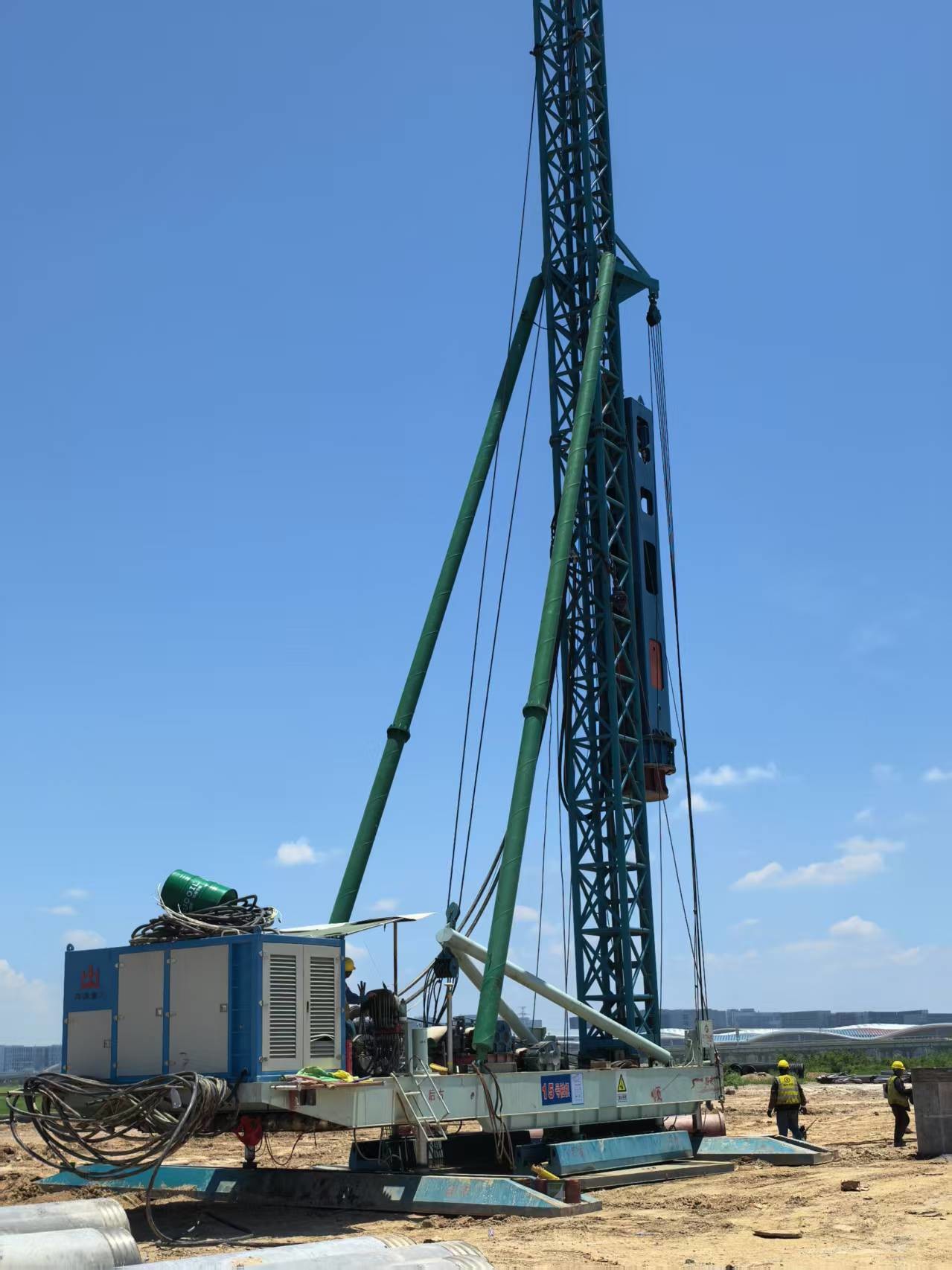

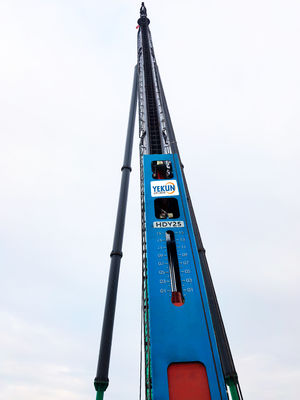

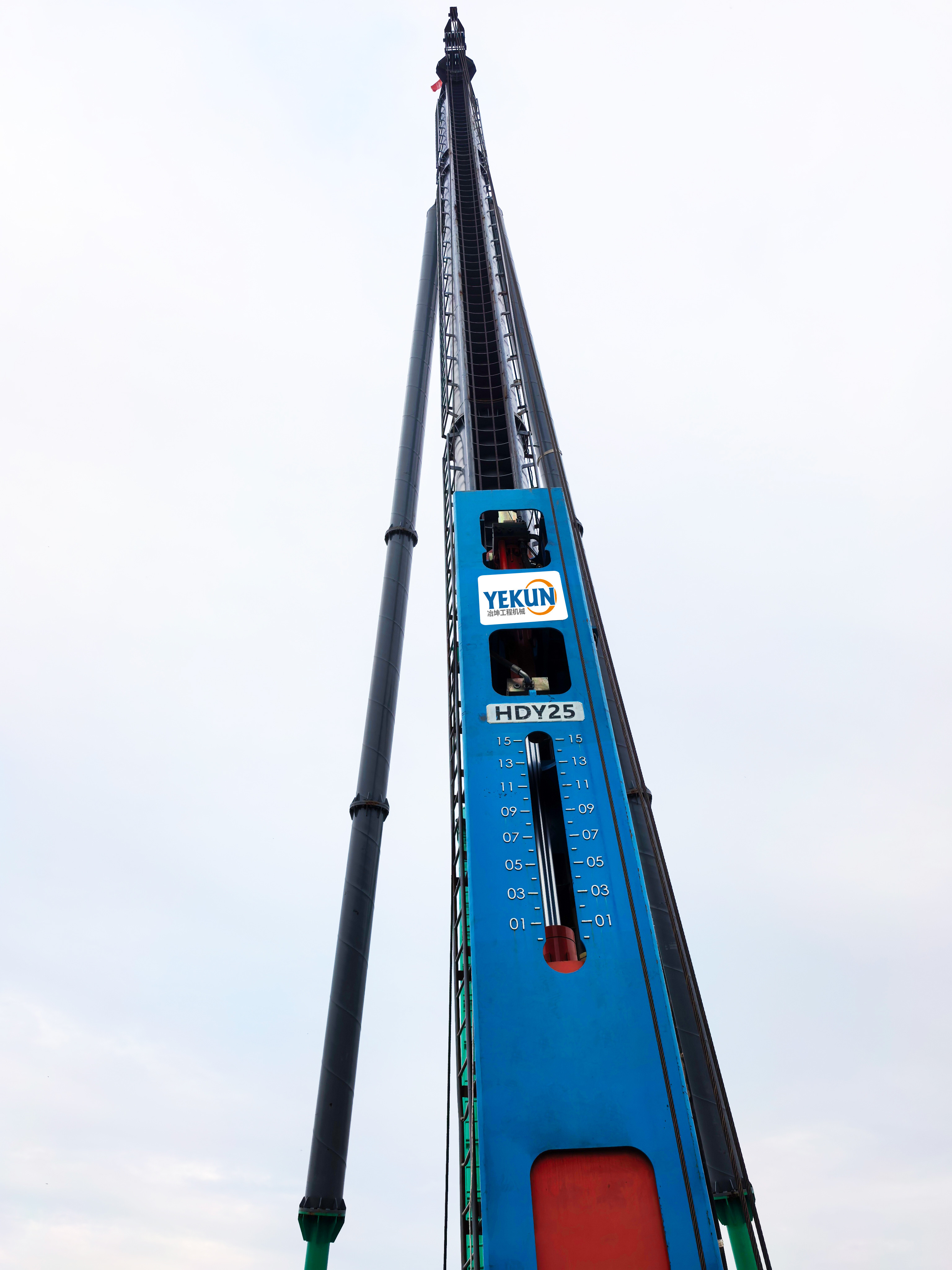

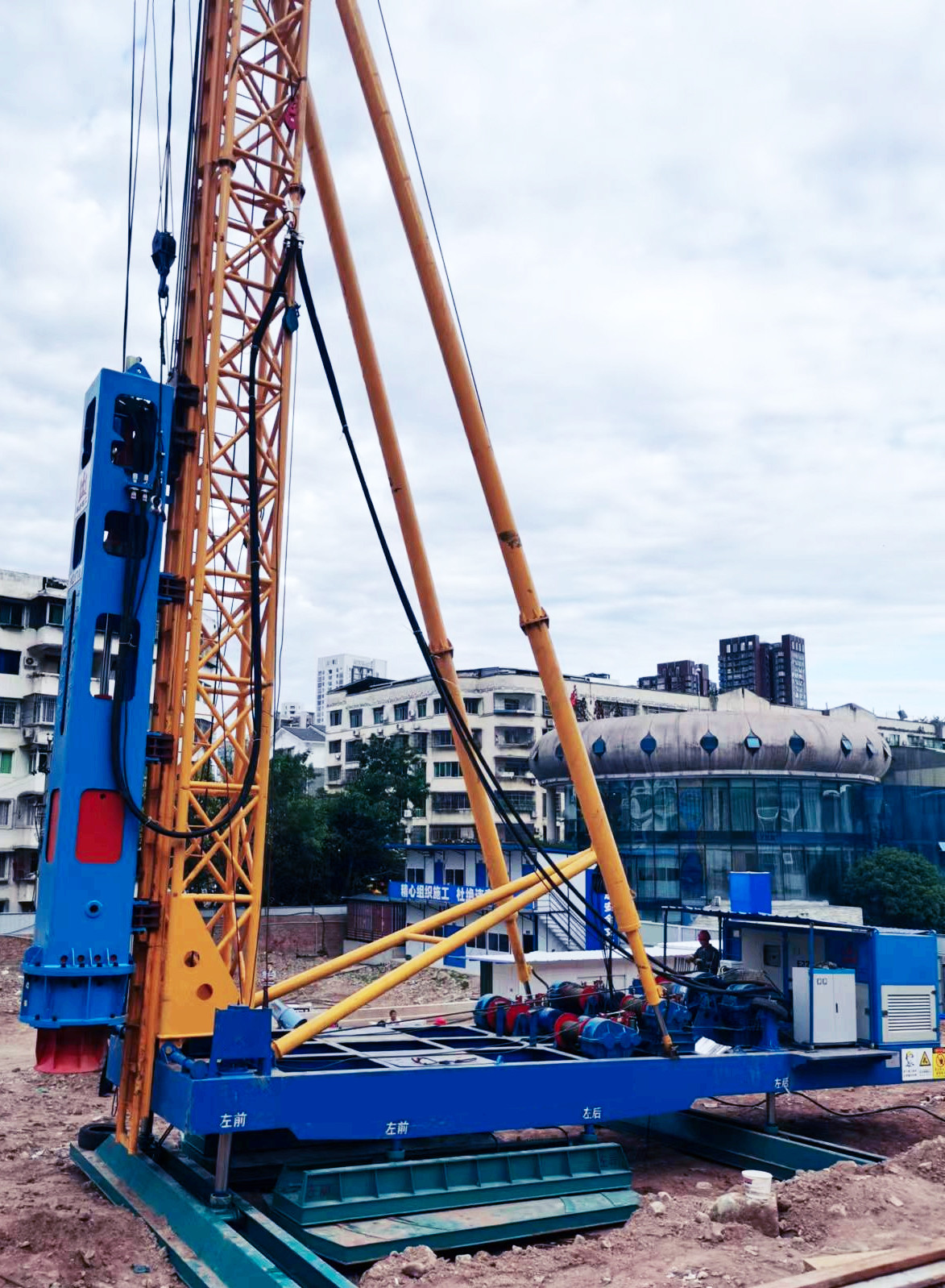

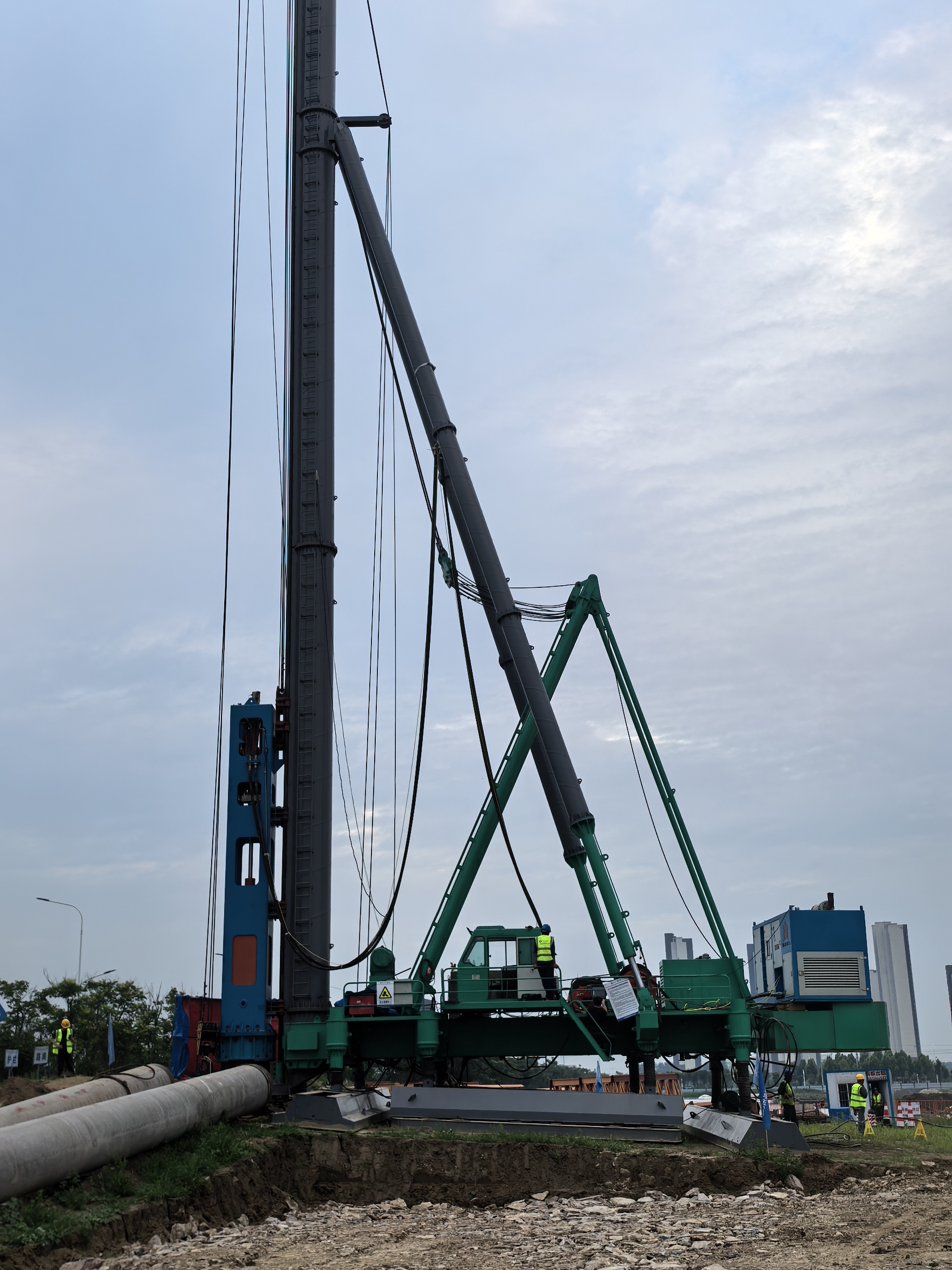

HDY25 Hydraulic Impact Pile Driving Hammer

  • HDY25 Hydraulic Impact Pile Driving Hammer
  • HDY25 Hydraulic Impact Pile Driving Hammer
  • HDY25 Hydraulic Impact Pile Driving Hammer
  • HDY25 Hydraulic Impact Pile Driving Hammer
  • HDY25 Hydraulic Impact Pile Driving Hammer
Place of Origin China
Brand Name YEKUN
Certification ISO 9001:2015
Model Number HDY25
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details FCL
Delivery Time 7-20 days
Payment Terms T/T，L/C, Western Union
Supply Ability 20 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

Features:

The HDY series hydraulic hammer, which matches the E and D series power stations, is the latest energy-saving and environmentally friendly foundation construction equipment developed by our company. It adopts multiple advanced hydraulic and electrical control technologies, with characteristics such as low noise, no pollution, high efficiency and energy saving, safety and reliability, and easy operation. Suitable for hammering construction of prefabricated pipe piles and steel pipe piles with different geological conditions and requirements, the D550 power station can also be matched with vibration hammers for construction, making it an ideal new generation of piling machinery.


The hydraulic system has high efficiency, with a rated working current of about 200~250A, and can be equipped with 120~150 square aluminum cables.
The cable has a small cross-sectional area and is lightweight, greatly reducing the labor intensity of workers; HDY25 hydraulic hammer is equipped with Dongfeng Cummins QSZ13-C550 diesel engine, two Rexroth A11VLO260 plunger pumps and one Parker T67DB double blade pump connected in series to form a pump set, providing surging power for construction;
Adopting the international first-class brand Rexroth main oil pump and valve, with good stability, high reliability, and high efficiency and energy saving;
Adopting the international first-class brand Hedeke oil return filter, with high flow rate, high filtration accuracy, and low oil return resistance, it can
effectively improve the cleanliness of the system oil, reduce equipment failure rate, and extend equipment service life;
The hydraulic cylinder of the pile driver adopts international first-class brand Trelleborg seals, which have low failure rate, high efficiency, and long service life;
Adopting a high-power three in one oil cooler, coupled with a temperature controller to accurately control the oil temperature, completely solves the problem of high oil temperature in hydraulic pile driving, significantly improves pile driving efficiency, and effectively extends the service life of seals and hydraulic oil;
The power station adopts a high-level fuel tank and internal forced ventilation design to improve oil pump suction, oil pump motor, electrical cabinet or engine heat dissipation.

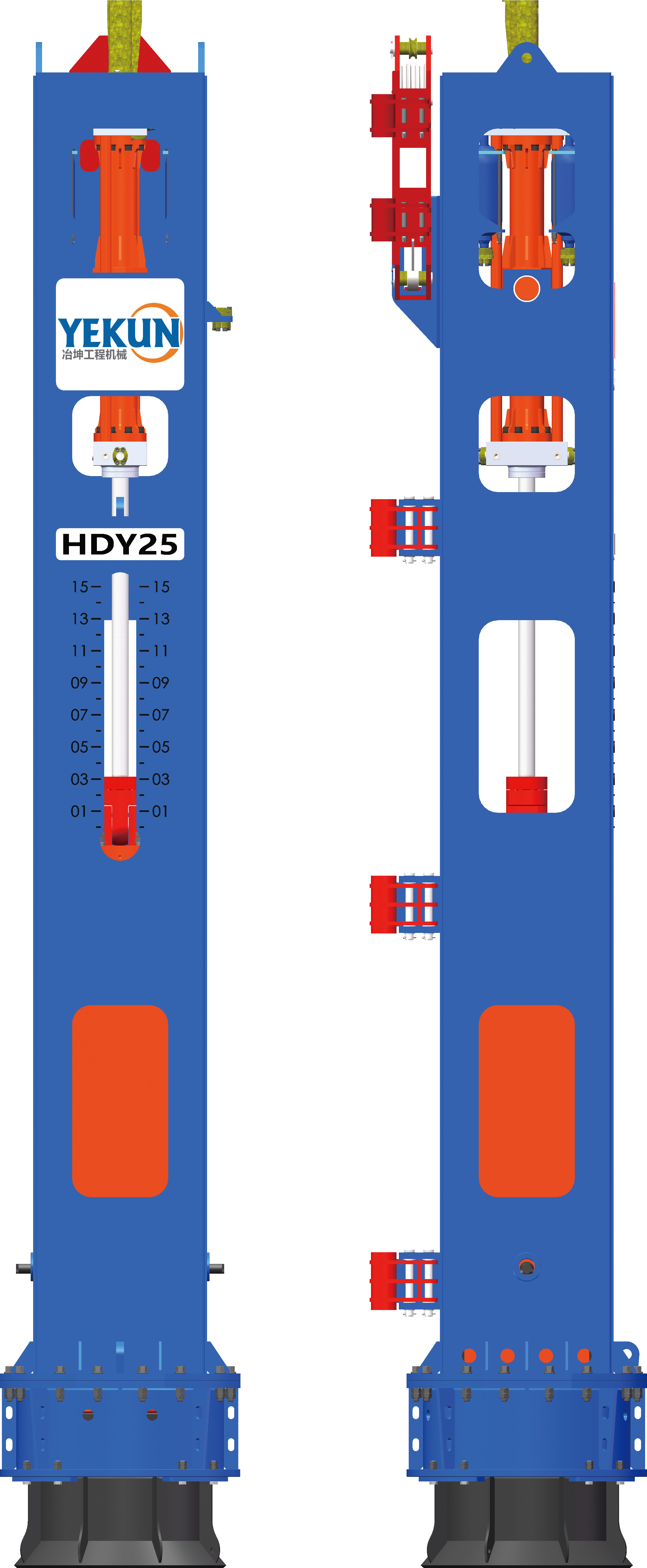

Main Structure and Appearance:

The HDY series hydraulic hammer is composed of mechanical parts, hydraulic system, and electrical system. The mechanical part is the main body of the hydraulic hammer, which performs external work on the hammer. The hydraulic system is the power source of the hydraulic hammer, while the electrical system is the energy input and control center of the hydraulic system.

The mechanical part consists of the hammer core assembly, hammer body assembly, oil cylinder assembly, upper pile cap, lower pile cap, hammer pad, pile cap buffer ring, landing gear, etc. The landing gear is used for the ascent and descent of hydraulic hammers; The hammer body is the supporting body of the entire mechanical part, used to support the oil cylinder and hammer core; The upper pile cap is fixed at the bottom of the hammer body, and the lower pile cap is sleeved inside the upper pile cap to support the pipe pile and transmit the impact force; The hammer pad and pile cap buffer ring are fitted onto the lower pile cap to achieve energy transfer between the hammer core and the pipe pile; The oil cylinder assembly of the hydraulic hammer achieves the lifting of the oil cylinder piston and the acceleration of gravity through the opening and closing of the plug-in valve installed on the valve block of the oil cylinder. The opening and closing of the plug in valve is controlled by the solenoid valve and sequence valve installed on the valve block of the oil cylinder.
The hydraulic system mainly consists of a power station, oil pipes, oil cylinders, etc.
The electrical system mainly consists of four parts: controller, electronic control box, sensors, and engine.


Product Parameter:

Model Unit HDY5 HDY8 HDY10 HDY12 HDY14 HDY16 HDY18 HDY20 HDY22 HDY25
Maximum strile energy KN.m 60 120 150 180 210 240 270 300 330 375
Maximum stroke of the
hammer core		 mm 1200 1500 1500 1500 1500 1500 1500 1500 1500 1500
Strike frequency bpm bpm 30-80 30-80 30-80 30-80 30-80 30-80 30-80 20-70 20-70 20-70
Weight of sriking body kg 5000 8000 10000 12000 14000 16000 18000 20000 22000 25000
Total height A mm 5930 6230 6750 7270 7670 7670 8020 7920 8220 8620
Total height B mm 6960 7260 7760 8430 8830 8830 9180 9080 9380 9780
Front and rear width C mm 1400 1520 1520 1460 1460 1490 1490 1720 1720 1720
Left and right width D mm 1140 1260 1260 1260 1260 1260 1260 1500 1500 1500
Hydraulic hammer weight kg 9450 12650 15200 20200 22600 24650 27100 32350 34680 38000
Landing gear weight kg 200 200 500 500 650 650 650 870 870 870
