Sheet Pile Driving Vibro Hammer For Piling Construction Projects

Place of Origin SHANGHAI
Brand Name VIBRA
Certification ISO 9001:2015
Model Number FV-280
Minimum Order Quantity 1 set
Price 15000 to 26000 USD
Packaging Details 5 CBM
Delivery Time 7-35 days
Payment Terms L/C, T/T, D/P, D/A, D/P, Western Union, MoneyGram
Supply Ability 25 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Sheet Pile Driver With Facility Of Driving Other Kinds Of Piles Feature Easy To Install And Possible To Drive Any Pile
Arm Weight 500kg Operation Pressure 32Mpa
Hammer Weight 1900kg Vibration Frequency 2800rpm
Centrifugal Force 335KN Excavator 20-30T
Material Steel, Core Materials Are All Imported HS Code 8430100000 As Pile Driver Accessories
Color Blue/Yellow/Red/White, Customized Color Available Type Hydraulic Vibrating Hammer
High Light

Piling Construction Hydraulic Vibro Hammer

,

Sheet Vibro Pile Driver

,

335KN Hydraulic Pile Driver

Leave a Message
Product Description

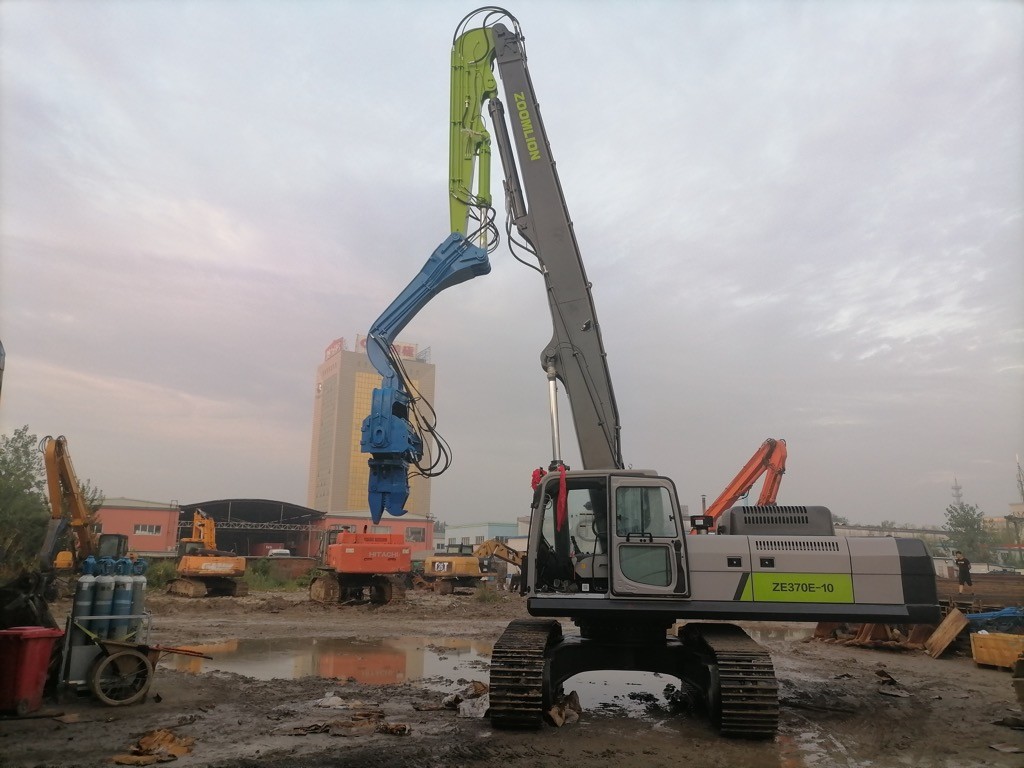

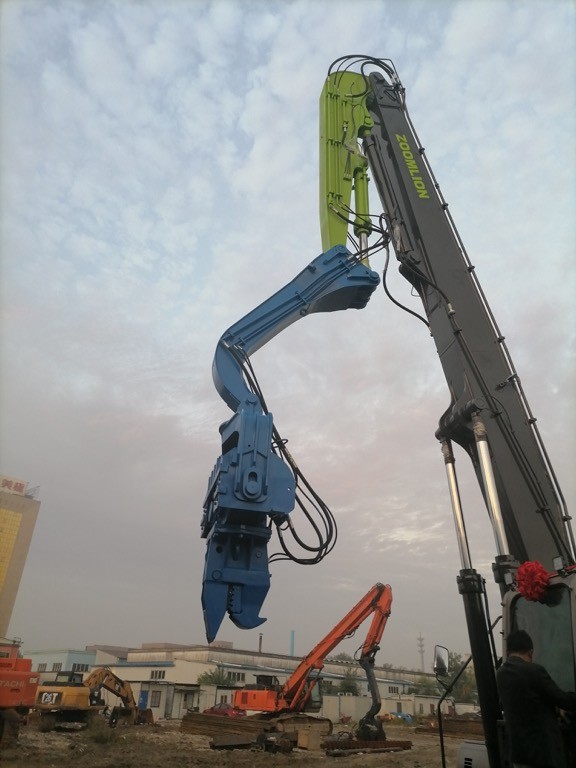

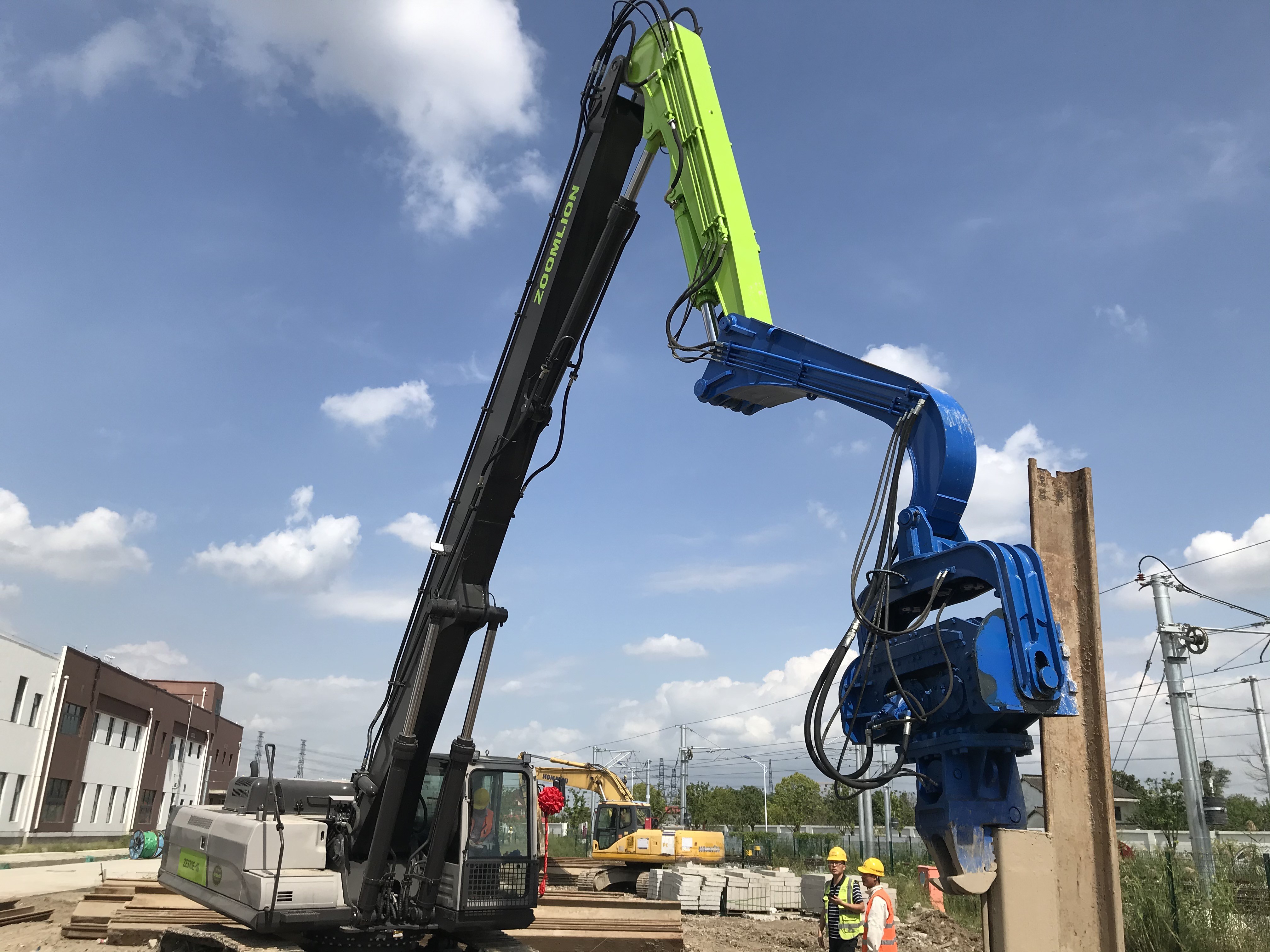

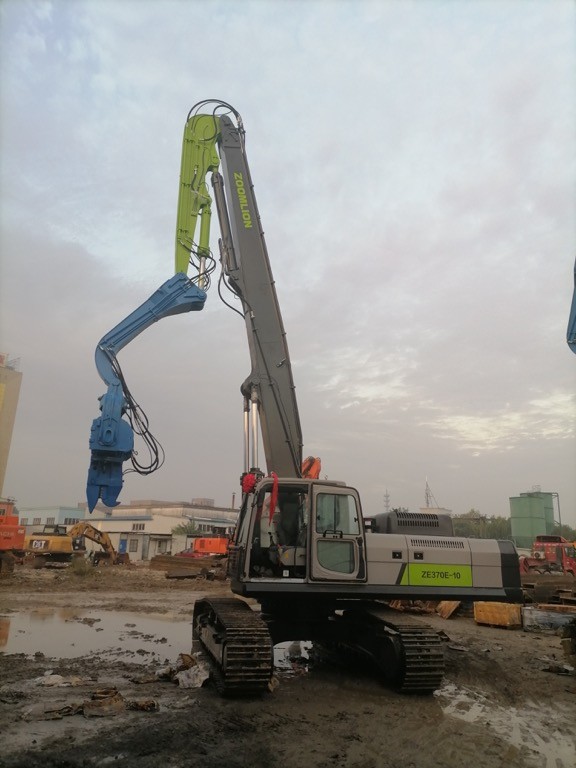

Sheet Pile driving with VIBRA vibro hammer for piling construction projects



Sheet pile is a kind of pile which has to be inserted into the ground so that it can hold the structure. Sheet piles are mainly used to retain soil. Sheet piles are used to retain the ground beneath all structures that are water related. So, it is very important. VIBRA has experienced professional team ready to provides extensive training and installation service for fitting and driving sheet piles. Customer can send their excavator to our yards or our team can visit their yards for helping with the training and installation services.



Technical Parameter



Item FV-250 FV-280 FV-300 FV-330 FV-350L FV-350 FV-400
Vibration Frequency (rpm) 2500 2800 3200 3200 3200 3200 3200
Operation Pressure (Mpa) 30 32 32 32 32 32 32
Centrifugal Force (KN) 265 335 350 372 435 455 485
Max.Pile Length (m) 10 12 12 12 15 15 18
Arm Weight (kg) 500 500 670 670 670 750 750
Hammer Weight (kg) 1700 1900 2100 2300 2400 2600 2700
Excavator (T) 20-30 20-30 30-35 33-40 35-40 40-45 45-60





Working Principle



Hydraulic vibrating pile driver take the advantage of high frequency vibration generated by motor and transit the vibration force to the hydraulic vibrating pile driver for the surrounding soil liquefying & break its structure to reduce the friction; then piling or drilling the pile form the soil ground via excavator. The high frequency vibration is driven by the hydraulic motor of the excavator.

The hydraulic motor drives the two eccentric axes to rotate at high speed in opposite direction. The horizontal force of the eccentric axis cancels each other without vibration. The vertical forces add up to each other, creating a vertical-frequency vibration.



Machinery Characteristics

  • The control system adopts integrated import control valve, each action can be controlled independently, convenient for maintenance and check.
  • The vibration frequency is controlled at two stages, and the second stage vibration is the confluence of double pumps, which greatly increases the excitation force and overcomes the special geology.
  • Mini and light weight design make application flexible.
  • Taking the advantage of the excavator hydraulic system without other driving system requirement, which save fuel oil and transportation cost.
  • The operation is simple and easy to learn. The driver who has the operation foundation of excavator can operate it with practice
