Excavator Mounted Large Vibro Hammer For Sheet Pile Driving Project Work

Place of Origin Shanghai, China
Brand Name VIBRA
Certification ISO 9001:2015
Model Number PCF-500
Minimum Order Quantity 1 set
Price 28000 to 35000
Packaging Details 8 CBM
Delivery Time 7-35 days
Payment Terms T/T, D/P, Western Union, MoneyGram, L/C, D/A
Supply Ability 10 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Large Sheet Pile Driver Vibro Hammer Feature Capable Of Driving Long Piles In Hard Soil Condition
Frequency 3200 Rpm Pressure 32 Mpa
Arm 820 Kg Hammer 3350 Kg
Centrifugal Force 585 KN Excavator 55-70 T
Color Blue/Yellow/Red/White, Customized Color Available Material Steel, Core Materials Are All Imported
Maximum Piling Depth 21 Meter HS Code 8430100000
High Light

Sheet Pile Driving Vibro Hammer


Excavator Mounted Sheet Pile Driving Machine

Leave a Message
Product Description

Excavator mounted large vibro hammer for sheet pile driving project work

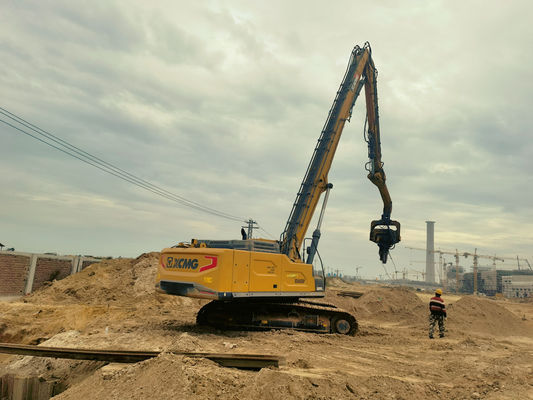

Sheet piles are sections of sheet steel with interlocking edges that are driven into the ground to provide earth retention and excavation support. Vibratory hammers are often used to install sheet piles. On building projects sheet piling is often adopted to provide temporary retention of very deep local elements of the foundation, for example core or lift overruns. On civil projects sheet piling is commonly used for tunnel portals and in marine locations for riverbank protection, seawalls, cofferdams etc. VIBRA PCF 500 fitted with XCMG 660DP excavator for driving 12-meter sheet piles in the Asia’s largest paper mill sewer pipe project in Zhangzhou city, Fujian, China. VIBRA pile driver handled correctly the value of sheet piles to a project so that the ability to use and re-use them is ensured.


In order to lead the market development trend, our company has successively developed two large pile driving hammerheads, PCF-500 and PCF-600, which are respectively matched on the main engine with a dead weight of 60 tons ~78 tons to meet the construction requirements of 18 meters ~24 meters steel sheet pile, steel guard cylinder and PC pile.


PCF-500 is suitable for matching in the overall body weight of 60~68 tons excavator, engine power in 320~345kw, hydraulic pump maximum flow in 760L.


Technical highlights

  • New electric control system, prolong the service life of components, large flow confluence valve, the flow is increased to 700L, the body pipeline is increased to 1 1/2 inches.
  • Super structural parts, increase the connection shaft, ensure the force balance of each part, no weakness.
  • Box bearing self-lubricating system, effectively extend the service life of bearings, ensure core stability.
  • Super strong cast steel chuck, matching 160 cylinder, 30Mpa pressure clamping force can reach 602KN, stable and reliable clamping.
  • Strong vibration power, with the original imported Parker motor, SKF bearings from Sweden and high-end gear components.

Technical Parameter


itemmodel PCF-500
Eccentric weight (kg) 77.5
Eccentric moment (kgm) 9.2
Exciting force (kN) 828
No-load amplitude (mm) 9.3
Arm weight (kg) 820
Hammer head weight (kg) 3600
Excavator (T) 60~68
Maximum Piling Depth (m) 21



Excavator Mounted Large Vibro Hammer For Sheet Pile Driving Project Work 0



Q: Are you a manufacturer?


A: Yes, we have been in this field for more than 12 years, our factory is in Suzhou and you are welcome to visit our unit anytime during working hour period,


Q: Who is your main customer?


A: Our customers are spreading all over the China with some abroad countries as well namely from New Zealand, Malaysia, Indonesia and many more are joining in the list. Brands like XCMG, SANY, Zoomlion, Caterpillar and Hyundai are our valuable customers.


Q: How long is the warranty period ?


A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.


Q: What is the MOQ ?


A: 1 set is available.


Q: What's the payment method ?


A: We accept T/T and D/P payment.


Q: What is the delivery time ?


A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.


Q: Can I have our LOGO on the machine ?


A: Of course you can.


Q: How is your product quality ?


A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".


Q: Can I be your dealer ?


A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!
