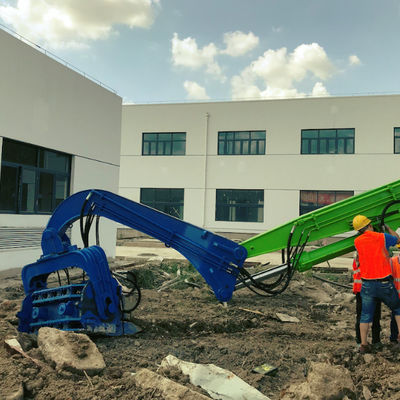

Hydraulic Pile Driver for 30T Excavators | Solar Farm Specialist | High-Speed Installation | Premium Components
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Photovoltaic Pile Driver | Feature | Suitable For All Kinds Of Piling |
|---|---|---|---|
| Arm Weight | 500kg | Operation Pressure | 32Mpa |
| Hammer Weight | 1900kg | Vibration Frequency | 2800rpm |
| Centrifugal Force | 335KN | Excavator | 20-30T |
| Color | Blue/Yellow, Customized Color Available | Material | Steel, Core Materials Are All Imported |
| Condition | New And Used Both Available | Type | Hydraulic Vibrating Hammer |
| HS Code | 84301000 | ||
| Highlight | Hydraulic Sheet Piling With Excavator,Sheet Photovoltaic Pile Driver,30T Photovoltaic Pile Driver |
||
Product Description
Product Introduction: VIBRA Hydraulic Vibratory Pile Driver
Core Keywords:
Pile Driver, Hydraulic Vibratory Hammer, Sheet Pile Driver, Pile Extraction Machine, Foundation Piling Equipment
Product Overview
The VIBRA Hydraulic Vibratory Pile Driver utilizes advanced high-frequency vibration technology to revolutionize pile installation and extraction. Through sophisticated soil liquefaction technology, it significantly reduces soil friction around piles, enabling smooth and efficient operations. This versatile equipment is widely used in municipal engineering, bridge construction, cofferdams, and building foundations, offering an environmentally friendly alternative to traditional piling methods.
Key Features
High-frequency vibration system (2500-3200 RPM)
180° rotational capability for flexible pile positioning
Rubber sheath noise reduction technology
Two-stage vibration frequency adjustment
Dual-pump system for enhanced excitation force
Quick conversion between driving and extraction modes
Product Advantages
Soil Liquefaction Technology: Reduces frictional resistance through high-frequency vibration
Environmentally Friendly: Low-noise operation with minimal vibration transmission
Pile Protection: Prevents damage to pile tops and bottoms during operation
High Efficiency: Faster operation cycles compared to conventional methods
Versatile Application: Suitable for sheet piles, concrete piles, H-beams, and rail piles
Urban Compatibility: Safe for operation near existing structures
Technical Parameters
| Model | Vibration Frequency | Centrifugal Force | Max Pile Length | Hammer Weight | Compatible Excavator |
|---|---|---|---|---|---|
| FV-250 | 2500 RPM | 265 KN | 10 m | 1700 kg | 20-30 T |
| FV-280 | 2800 RPM | 335 KN | 12 m | 1900 kg | 20-30 T |
| FV-300 | 3200 RPM | 350 KN | 12 m | 2100 kg | 30-35 T |
| FV-330 | 3200 RPM | 372 KN | 12 m | 2300 kg | 33-40 T |
| FV-350 | 3200 RPM | 455 KN | 15 m | 2600 kg | 40-45 T |
| FV-400 | 3200 RPM | 485 KN | 18 m | 2700 kg | 45-60 T |
Frequently Asked Questions
Q: What is the warranty period?
A: 12-month warranty from installation date, covering main components (excluding wear parts).
Q: What is the minimum order quantity?
A: MOQ is 1 set.
Q: What payment methods are available?
A: We accept T/T and D/P payments.
Q: What is the delivery timeline?
A: 7-35 days to Shanghai Port, plus overseas shipping time.
Q: Is logo customization available?
A: Yes, we provide OEM services including logo customization.
Q: How is quality assurance maintained?
A: All equipment meets "Technical Conditions for Pile Driver Enterprises" standards.
Q: How to place an order?
A: Contact us with requirements → We issue proforma invoice → Confirm order → Production → Delivery tracking.
About Ye Kun Construction Machinery
As a specialized manufacturer of vibration pile equipment, Ye Kun Construction Machinery has established the VIBRA brand as an industry leader through continuous innovation and quality commitment. Our products have gained widespread recognition in foundation engineering applications, with annual sales demonstrating remarkable growth. We remain dedicated to providing professional piling solutions and developing strategic partnerships worldwide.
