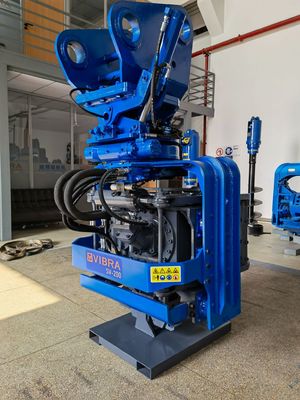

Hydraulic Side Grip Mini Excavator Pile Driver For Narrow Space Working Areas

Hydraulic Side Grip Mini Excavator Pile Driver For Narrow Space Working Areas
Hydraulic Side Grip Mini Excavator Pile Driver For Narrow Space Working Areas

Large Image :  Hydraulic Side Grip Mini Excavator Pile Driver For Narrow Space Working Areas

Product Details:
Place of Origin: Shanghai, China
Brand Name: VIBRA
Certification: ISO 9001:2015
Model Number: SV-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 54,000 USD
Packaging Details: 4 CBM
Delivery Time: 15-35 days
Payment Terms: T/T, D/P, Western Union, MoneyGram, L/C
Supply Ability: 10 set/month
Detailed Product Description
Name: Side Grip Pile Driver Feature: Pile Driving In Any Narrow Spaces
Vibration: 3000 Rpm Centrifugal Force: 332-384 KN
Hammer: 1400-1700 Kg Excavator: 20T
Material: Steel, Core Materials Are All Imported Color: Blue/Yellow, Customized Color Available
HS Code: 8430100000 Size (LxWxH): 1320X1160X1820
Rotation/tilt Angle: 360/+-30 Degree Eccentric Torque: 3.07kgm
High Light:

Mini Excavator Sheet Pile Driver

,

Hydraulic Pile Driver For Mini Excavator

,

Side Grip Excavator Mounted Pile Driver

Design Details
Rotary Oscillation Mechanism

  • High torque slewing support
  • High pressure swing cylinder
  • Split control valve Compact central swivel
  • Front oil circuit interface

Gantry Hanger

  • One-piece structure
  • High pressure accumulator
  • Split control valve
  • Front oil circuit interface

Holding Clip System

  • High strength arm
  • Dual high pressure cylinders
  • Interchangeable collet
  • Simultaneous clamping and release of both arms

Vibrating Body

  • Imported drive motor
  • High strength box
  • high speed gear
  • Symmetrical eccentric arrangement
  • Increase the oil drain

Bottom Clip System

  • One-piece cast steel
  • Integrated cylinder
  • tooth plate
  • Pile hook mechanism



Benefits OF VIBRA SIDE GRIP PILE DRIVER

  • Appropriate for wide scope of piles like sheet piles, casing piles, H, I-beams, steel and tube piles,
  • Appropriate for different ground conditions,
  • Ideal for conveying the driving energy to the pile,
  • Successful shifting and turning mechanism,
  • Has durability and simple maintenance,
  • Simple pile handling and pitching,
  • Wide opening and synchronized development,
  • Can perform 360º/+-30º rotation.


About Us

Shanghai yekun Machinery Co., Ltd was founded in 2009, A professional company involving in hydraulic vibrating pile driver manufacture, sale and service. Our company take the latest high speed hydraulic vibrating pile driver and its components as the main products. Our products vastly apply for infrastructure & construction industries.

We focus on product quality with the latest industrial technology. The mini hydraulic vibrating pile driver lead the industrial trend. The middle and large hydraulic vibrating pile driver also are highly recognized by our clients. At the same time , we actively cooperated with the engineering machinery factory and construction company to jointly develop more functional professional equipment, and we hired foreign professionals as our technical adviser.


Hydraulic Side Grip Mini Excavator Pile Driver For Narrow Space Working Areas 0
FAQ

Q: How long is the warranty period ?

A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.

Q: What is the MOQ ?

A: 1 set is available.

Q: What's the payment method ?

A: We accept T/T and D/P payment.

Q: What is the delivery time ?

A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.

Q: Can I have our LOGO on the machine ?

A: Of course you can.

Q: How is your product quality ?

A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises ".

Q: Can I be your dealer ?

A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!
