Product Details
Name Sheet Pile Installation Machine Feature High Accuracy Quick Pile Driving
Vibration Frequency 3200rpm Operation Pressure 32Mpa
Arm Weight 670kg Hammer Weight 2400kg
Centrifugal Force 435KN Excavator 35-40T
Max. Pile Length 15 Material Steel, Core Materials Are All Imported
Type New And Used Both Available Color Blue/Yellow, Customized Color Available
HS Code 84301000
Highlight

Roads Construction Sheet Pile Driving Machine

,

15 Meter Sheet Pile Driving Machine

,

Roads Construction Sheet Pile Driving equipment
Leave a Message
Product Description

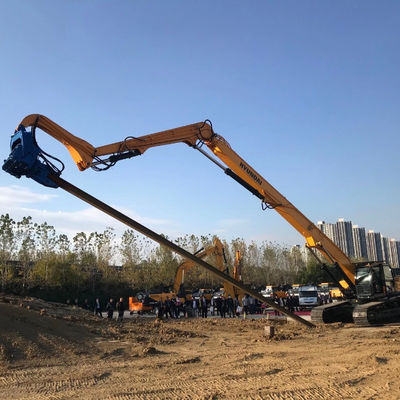

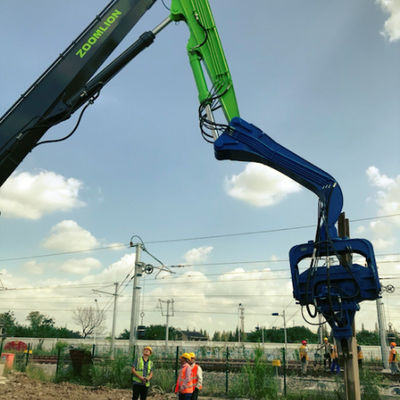

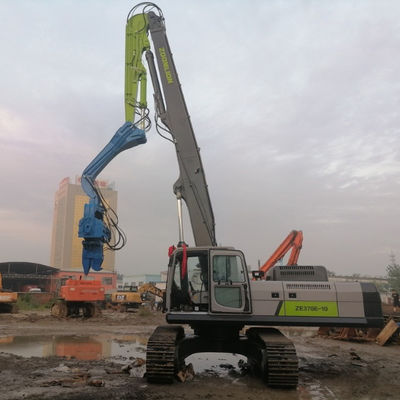

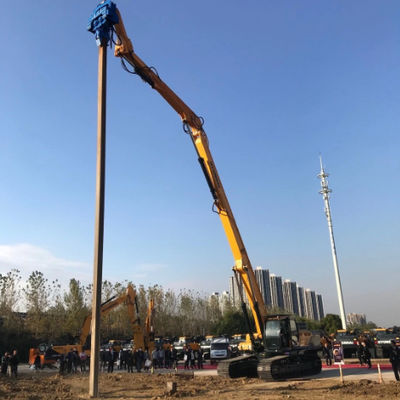

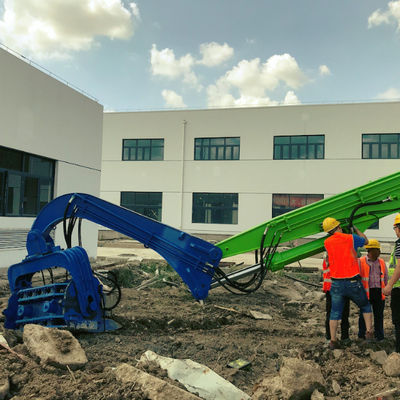

Product Introduction: VIBRA Hydraulic Sheet Pile Driver

Core Keywords: Sheet Pile Driver, Hydraulic Vibratory Hammer, Sheet Pile Extraction, Steel Sheet Pile Driver, Excavator-Mounted Pile Driver

Product Overview

The VIBRA Hydraulic Sheet Pile Driver utilizes advanced high-frequency vibration technology to efficiently drive and extract sheet piles through soil liquefaction. This innovative system reduces soil friction around piles, enabling smooth installation and extraction with minimal resistance. Ideal for various construction applications, it ensures precise and damage-free piling operations.

Key Features

  • High-frequency vibration up to 3200 RPM for efficient pile driving

  • 180° rotational capability for flexible sheet pile positioning

  • Rubber sheath design for noise and vibration reduction

  • Two-stage vibration frequency adjustment

  • Compatible with steel sheet piles, concrete piles, H-beams, and rail piles

  • Quick conversion between driving and extraction modes

Product Advantages

  • Reduced Soil Resistance: Liquefies surrounding soil to minimize friction

  • Damage Prevention: Protects pile integrity during installation and extraction

  • Environmental Compliance: Low-noise operation meets environmental standards

  • Versatile Application: Suitable for various pile types and soil conditions

  • High Efficiency: Faster operation compared to traditional methods

  • Precise Control: Adjustable frequency and rotation for accurate placement

Technical Parameters
Model Vibration Frequency Centrifugal Force Max Pile Length Excavator Weight
FV-250 2500 RPM 265 KN 10 m 20-30 T
FV-280 2800 RPM 335 KN 12 m 20-30 T
FV-300 3200 RPM 350 KN 12 m 30-35 T
FV-330 3200 RPM 372 KN 12 m 33-40 T
FV-350S 3200 RPM 435 KN 15 m 35-40 T
FV-350 3200 RPM 455 KN 15 m 40-45 T
FV-400 3200 RPM 485 KN 18 m 45-60 T
Frequently Asked Questions

Q: What is the warranty period?

A: 12 months warranty from installation date, covering main components.

Q: What is the minimum order quantity?

A: MOQ is 1 set.

Q: What payment methods do you accept?

A: We accept T/T and D/P payments.

Q: What is the delivery time?

A: 7-35 days to Shanghai Port, plus overseas shipping time.

Q: Can we add our logo?

A: Yes, OEM service is available.

Q: How to order?

A: Contact us with your requirements, we'll issue a proforma invoice, and arrange production upon confirmation.

About Yekun Construction Machinery

As a technology-oriented enterprise specializing in vibrating pile equipment since 2014, Yekun has established itself as an industry leader through innovative solutions and reliable products. Our VIBRA brand represents quality and performance, with equipment widely used in foundation engineering projects worldwide. We maintain strict quality control in accordance with industry standards and continuously strive to provide the most professional pile driving solutions to our global clients.
