1800cm 3300rpm Hydraulic Pile Hammer Fast Converting Stable Running

1800cm 3300rpm Hydraulic Pile Hammer Fast Converting Stable Running
1800cm 3300rpm Hydraulic Pile Hammer Fast Converting Stable Running

Large Image :  1800cm 3300rpm Hydraulic Pile Hammer Fast Converting Stable Running

Product Details:
Place of Origin: Shanghai, China
Brand Name: VIBRA
Certification: ISO 9001:2015
Model Number: PCF-450
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 24,000 to 32,000 USD
Packaging Details: 8.5 CBM
Delivery Time: 10-35 days
Payment Terms: L/C, T/T
Supply Ability: 10 set/month
Detailed Product Description
Frequency: 3300 Rpm Pressure: 32 Mpa
Centrifugal Force: 535 Kn Maximum Pile: 18 M
Weight Of Arm: 820 Kg Weight Of Hammer: 3150 Kg
Excavator Operating Weight: 47~55 T Material: Steel, Core Materials Are All Imported
Color: Blue/Yellow, Customized Color Available Type: New And Used Both Available
HS Code: 8430100000
High Light:

3300rpm Hydraulic Pile hammer

,

fast converting Hydraulic Pile hammer

,

fast converting Hydraulic Pile driver

About Us



Shanghai Ye Kun Construction Machinery Co., Ltd. is one specialized is engaged in the vibration sinking pile drawing machine equipment production, sale and service of technology-oriented enterprises, products mainly emerging a high-speed hydraulic pile drawing machine and peripheral accessories, equipment widely used in all kinds of foundation engineering construction.



After a short period of development, the company won the recognition of customers, and the annual sales growth doubled. Marketing the country with the VIBRA brand and export it. The company′s production of mini hydraulic pile driver, vibration hammer and other products quality has reached the advanced level of the industry.



The company has a young and enterprising team cooperation, in order to respect the customer value as self value, to become the most reliable, the most comprehensive, the most professional vibration pile machine equipment and service suppliers and make unremitting efforts.

Product Details

This series of machines are popular with customers. The structure of the body is look like with that of the standard Taiwan hammer. The spare parts are replaceable. The box bearing is broken and easy to be kept up. The box structure has higher necessities for material strength, welding process and machining accuracy. We have extreme control in all pieces of manufacturing to ensure stable quality. We have viably manufactured the greatest model pcf-500, which matches with Cat 365.



Item Model PCF-300 PCF-330 PCF-350 PCF-450 PCF-500
Vibration Frequency rpm 3500 3300 3500 3300 3200
Operation Pressure Mpa 32 32 32 32 32
Centrifugal Force kn 385 420 470 535 585
Max. Pile Length m 12 12 15 18 21
Weight of Arm kg 750 750 750 820 820
Weight of Hammer kg 2750 2850 2950 3150 3350
Excavator T 27~30 33~38 40~45 47~55 55~70





Equipment Advantage



  • steel sheet pile, cement pile, steel rail pile, iron plate, H steel
  • Faster converting operation; Applied to various working environments.
  • Compared to other systems, less force required for pile pulling
  • Not damage the top or bottom of steel pipe pile, steel plate pile and steel rail pile.
  • Not damage the building even often work near it.
  • Adopted Rubber sheath to reduce noise and vibration, the operation is quiet and the working period is short; It is helpful to overcome environmental problems.
  • According to the placement direction of sheet pile and site conditions, the sheet pile can be clamped or lowered by positive and negative rotation of 180 °. The vibration frequency can be adjusted by two levels, and the two-level double pumps are combined to greatly increase the excitation force.

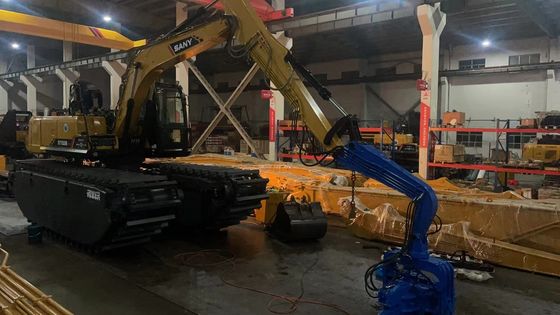

1800cm 3300rpm Hydraulic Pile Hammer Fast Converting Stable Running 0



Area of Application



VIBRA hydraulic vibratory hammer is the vibratory driving piling equipment which is popular among a wide variety of foundation projects.Apart from driving and pulling elements such as sheet piles and pipes, vibratory hammers are also used for soil densifying or vertical drainage, especially suitable for municipal, bridges, cofferdam, building foundation, etc.

With advanced technology, vibratory hammer has advantages of low noise, high efficiency, non-pollution and non-damage to piles,etc.



1800cm 3300rpm Hydraulic Pile Hammer Fast Converting Stable Running 1

FAQ



Q: How long is the warranty period ?



A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.



Q: What is the MOQ ?



A: 1 set is available.



Q: What's the payment method ?



A: We accept T/T and D/P payment.



Q: What is the delivery time ?



A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.



Q: Can I have our LOGO on the machine ?



A: Of course you can.



Q: How is your product quality ?



A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".



Q: Can I be your dealer ?



A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!



Q: How To Order?



A:
1. Please tell us the model with quantity and other requirement which you needed.
2. We issue the Proforma Invoice to you after confirmed the price and other details.
3. We arrange the order production upon receipt of confirmed PI and your deposit or original L/C.
4. After the goods is ready to ship, we will inform you the shipment date and other informations by email at the same time.
5. We will help to track your goods until you receive them safely.
