Fast Operation Till Mechanized 8m Hydraulic Excavator Sheet Pile Driver

Place of Origin SHANGHAI
Brand Name VIBRA
Certification ISO 9001:2015
Model Number FV-150
Minimum Order Quantity 1
Price 15000 to 25000 USD
Packaging Details 5.1 CBM
Delivery Time 7-35 work days
Payment Terms L/C, T/T, D/P
Supply Ability 15 Set/Month
Product Details
Name Hydraulic Pile Driver Feature Stable Running Fast Operation
Vibration Frequency 2500rpm Operation Pressure 30 Mpa
Centrifugal Force 172 KN Max.Pile Length 8 M
Arm Weight 260 Kg Hammer Weight 1100 Kg
HS Code 8430100000 Type New And Used Both Available
Material Steel, Core Materials Are All Imported Color Blue/Yellow, Customized Color Available
High Light

8m hydraulic pile driver for excavators

,

mechanized hydraulic pile driver for excavators

,

mechanized excavator sheet pile driver

Leave a Message
Product Description

Mini Excavator Mounted Hydraulic Pile Driver



Mini hydraulic pile driver for the company's original products, its birth to fill the industry gap; Changed the history of small excavator can not be refitted pile driver; Solve the problem that small foundation pile can not be mechanized construction.

This series of models for the new rural reconstruction of the basic engineering construction has made an outstanding contribution.



Equipment advantages:

The structure is ultra-small and lightweight, and the vibration force is maximized.

Upgraded to the fourth generation model, more reasonable mechanical structure, high stability of the machine;

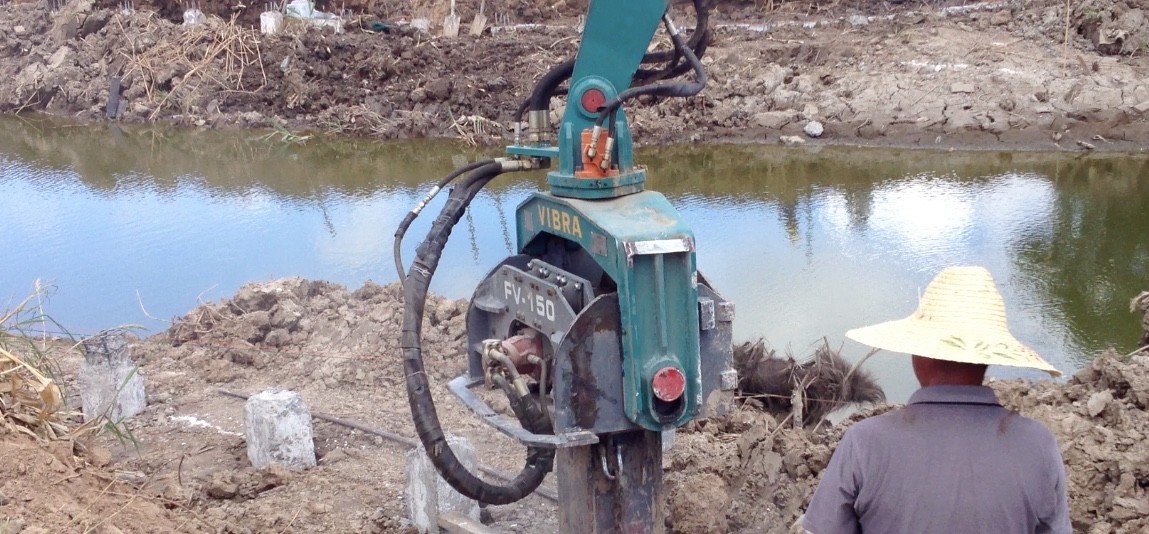

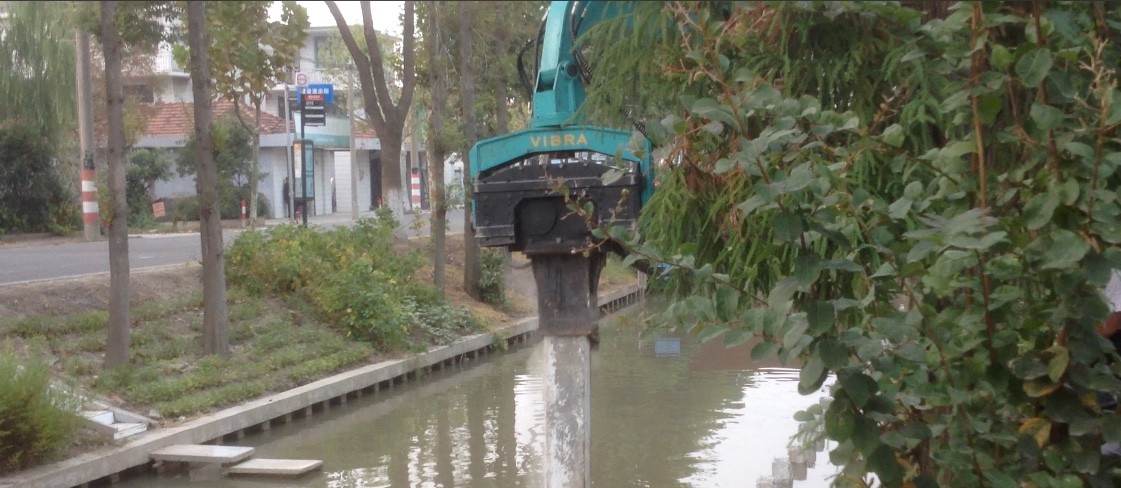

It can be used in the construction of narrow river course and house foundation, and can be used for drawing steel sheet piles, cement piles, wooden piles, etc.



Application



1) Clay, soft soil, sand layer ,etc



2) Noise regulated area



3) Vibration regulated areas, such as near buildings, precision instrument buildings, subway, overpass and so on.



Fast Operation Till Mechanized 8m Hydraulic Excavator Sheet Pile Driver 0



Description



Vibrating pile hammer is utilizing its high frequency vibration to vibrate pile body with high-speed increase to pass the vertical vibration of mechanical produce to pile which prompting changes in the soil structure around the pile, strength decline. Soil around the piles become liquefaction to lessen frictional opposition between side of the pile and the soil. Then, at that point, utilizing the excavator down power, vibrating pile hammer and pile body weight to sink pile into the soil. When extricating piles, in the state of vibration to take out the pile by utilizing excavator lift power. Excitation power required by pile driving hardware are extensive controlled by site soil, soil condition, dampness content and sort of pile development.



Equipment Advantage



High vibration frequency, large vibration force, high strength of the structural parts;

Super-heavy cast steel fixture, increase the oil cylinder and connecting rod, high reliability.

The machine has high configuration, German Rexroth vibration motor, the core components are imported first-line brands.



Technical Parameter



Item FV-100 FV-150
Vibration Frequency  (rpm) 2500 2800
Operation Pressure  (Mpa) 30 32
Centrifugal Force  (KN) 117 172
Max.Pile Length  (m) 6 8
Arm Weight  (kg) 160 260
Hammer Weight  (kg) 850 1100
Excavator  (T) 7-12 12-17



About Us



Shanghai Ye Kun Construction Machinery Co., Ltd. is one specialized is engaged in the vibration sinking pile drawing machine equipment production, sale and service of technology-oriented enterprises, products mainly emerging a high-speed hydraulic pile drawing machine and peripheral accessories, equipment widely used in all kinds of foundation engineering construction.



After a short period of development, the company won the recognition of customers, and the annual sales growth doubled. Marketing the country with the VIBRA brand and export it. The company′s production of mini hydraulic pile driver, vibration hammer and other products quality has reached the advanced level of the industry.



Our company is consisting of a young, enthusiasm professional team. Adhere to client as priority, Quality as first concern, Management as foundation. We are working for the direction to become the most professional and comprehensive hydraulic vibrating pile driver manufacture and service supplier.



Fast Operation Till Mechanized 8m Hydraulic Excavator Sheet Pile Driver 1



FAQ



Q: How long is the warranty period ?



A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.



Q: What is the MOQ ?



A: 1 set is available.



Q: What's the payment method ?



A: We accept T/T and D/P payment.



Q: What is the delivery time ?



A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.



Q: Can I have our LOGO on the machine ?



A: Of course you can.



Q: How is your product quality ?



A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".



Q: Can I be your dealer ?



A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!
