Mini Excavator Mounted Multipurpose Hydraulic Pile Driver , Hydraulic Hammer Piling Machine

Place of Origin SHANGHAI
Brand Name VIBRA
Model Number FV-100
Minimum Order Quantity 1 set
Price 13000 to 20000 USD
Packaging Details 1.874 CBM
Delivery Time 7-35 days
Payment Terms L/C, T/T, D/P
Supply Ability 40 Set/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name Hydraulic Hammer Piling Machine Feature Multipurpose
Operation Pressure 30 Mpa Arm Weight 160 Kg
Hammer Weight 850 Kg Vibration Frequency 2500 Rpm
Centrifugal Force 117 Kn Excavator 7~12 Ton
High Light

hydraulic pile driving machine


hydraulic impact hammer pile driver

Leave a Message
Product Description

Low Noise Hydraulic Pile Driver Applied To Various Working Environments




Our products are multi-function static hydraulic pile drivers with embracing pile driving, top-pressing pile driving or both at the same time because they are well combined with each other.


Our products have bigger capacity of side piling and corner piling than those of other companies.


Our pile drivers can work with a variety of piles, square piles or round piles or other shape of steel piles, no matter thin-walled round concrete piles or thick-walled ones.

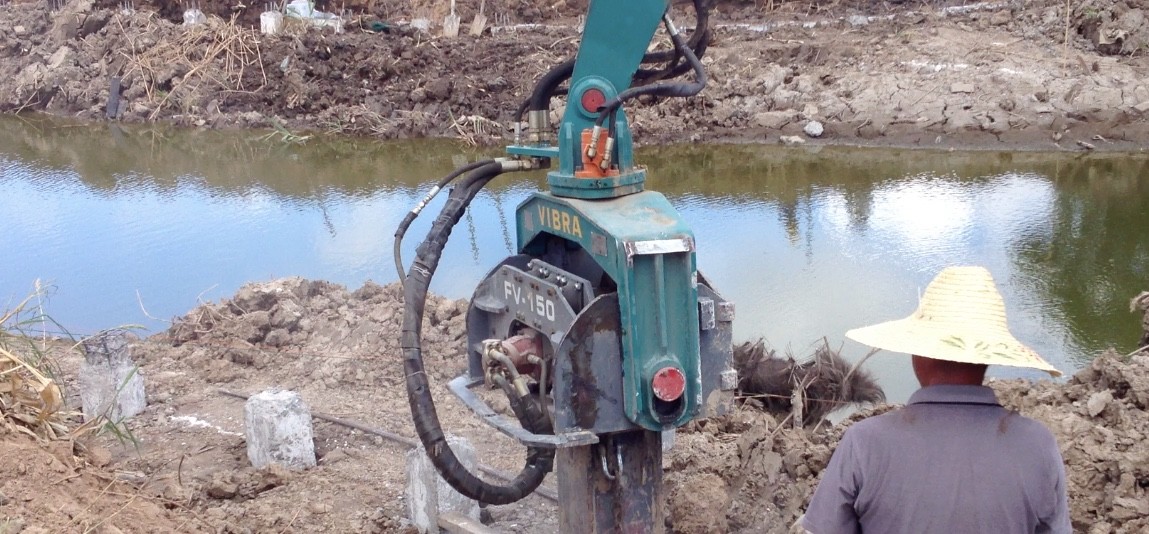

Mini Excavator Mounted Multipurpose Hydraulic Pile Driver , Hydraulic Hammer Piling Machine 0




  • Pile driving steel sheet pile, cement pile, steel rail pile, iron plate, H steel
  • Quick converting operation; Applied to various working environments.
  • Compared to other systems, less force required for pile pulling
  • Not damage the top or bottom of steel pipe pile, steel plate pile and steel rail pile.
  • Not damage the building even often work near it.
  • Adopted Rubber sheath to reduce noise and vibration, the operation is quiet and the working period is short; It is helpful to overcome environmental problems.
  • According to the placement direction of sheet pile and site conditions, the sheet pile can be clamped or lowered by positive and negative rotation of 180 °. The vibration frequency can be adjusted by two levels, and the two-level double pumps are combined to greatly increase the excitation force.
  • Hydraulic motor has small volume and light weight, but it can output high power and high speed.
  • Vibration frequency can be adjusted by variable pump. It can be used in excavator operation of any brand, and can meet different work requirements only after changing chucks.

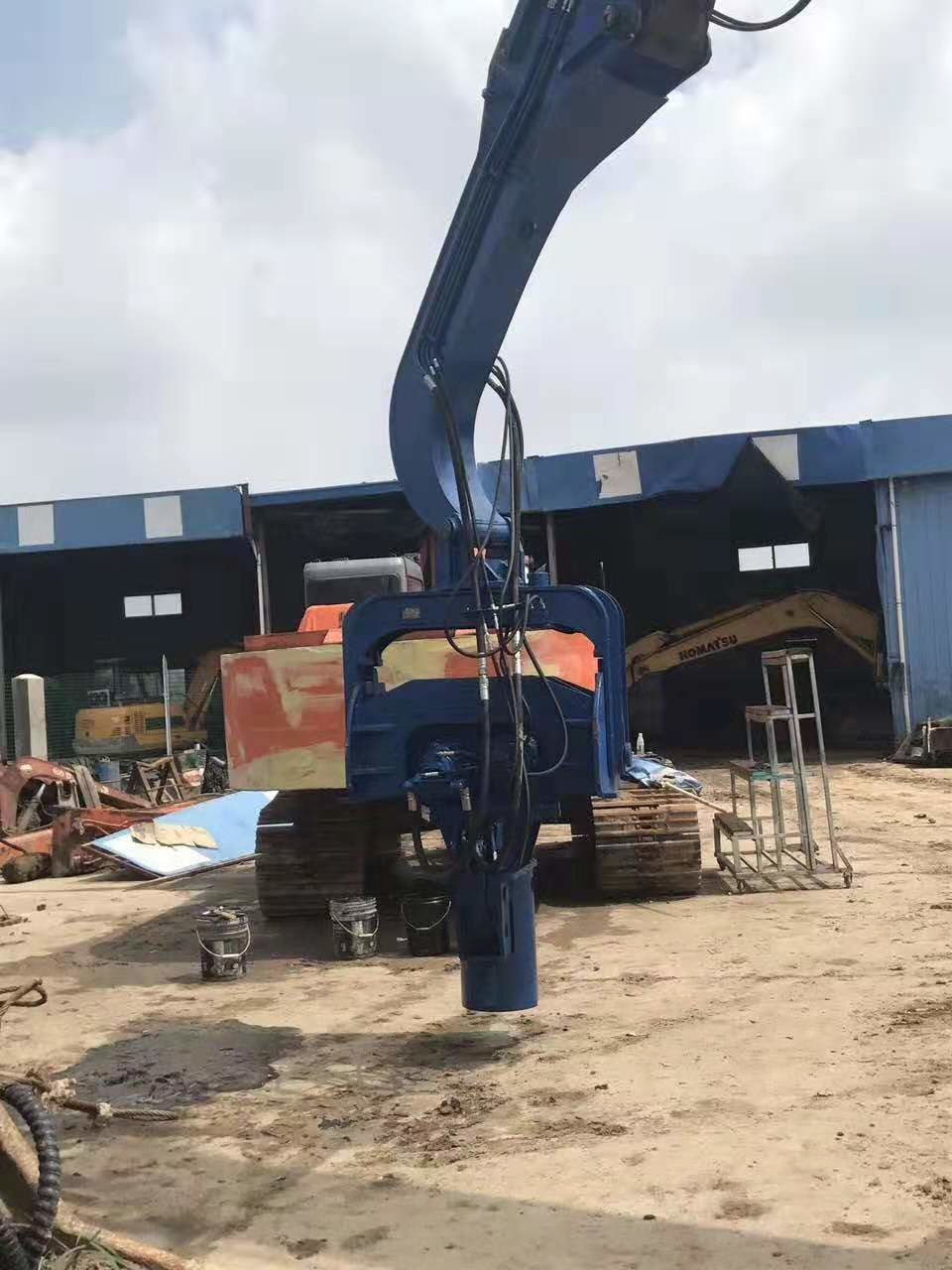

Mini Excavator Mounted Multipurpose Hydraulic Pile Driver , Hydraulic Hammer Piling Machine 1


Technical Parameter


Item FV-100 FV-150 FV-250 FV-280 FV-300 FV-350 FV-400
Vibration Frequency (rpm) 2500 2500 2800 3200 3200 3200 3200
Operation Pressure (Mpa) 30 30 32 32 32 32 32
Centrifugal Force (KN) 117 172 265 335 350 455 485
Max.Pile Length (m) 6 8 10 12 12 15 18
Arm Weight (kg) 160 260 500 500 670 750 750
Hammer Weight (kg) 850 1100 1700 1900 2100 2600 2700
Excavator (T) 7~12 12-17 20-30 20-30 30-35 40-45 45-60


About Us


Shanghai Yekun Construction Machinery Co., Ltd. was founded in 2014, A professional company involving in hydraulic vibrating pile driver manufacture, sale and service. Our company take the latest high speed hydraulic vibrating pile driver and its components as the main products. Our products vastly apply for infrastructure & construction industries.


We focus on product quality with the latest industrial technology. The mini hydraulic vibrating pile driver lead the industrial trend. The middle and large hydraulic vibrating pile driver also are highly recognized by our clients. At the same time, we actively cooperated with the engineering machinery factory and construction company to jointly develop more functional professional equipment, and we hired foreign professionals as our technical adviser.


Our company is consisting of a young, enthusiasm professional team. Adhere to client as priority, Quality as first concern, Management as foundation. We are working for the direction to become the most professional and comprehensive hydraulic vibrating pile driver manufacture and service supplier.




Q: How long is the warranty period?


A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.


Q: What is the MOQ?


A: One set is available.


Q: What's the payment method?


A: We accept L/C, T/T and D/P payment.


Q: What is the delivery time?


A: The delivery time is generally 1-8 days, and arrive at Shanghai Port. Shipping time should be considered overseas.


Q: Can I have our LOGO on the machine?


A: Of course you can.


Q: How is your product quality?


A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".


Q: Can I be your dealer?


A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!
