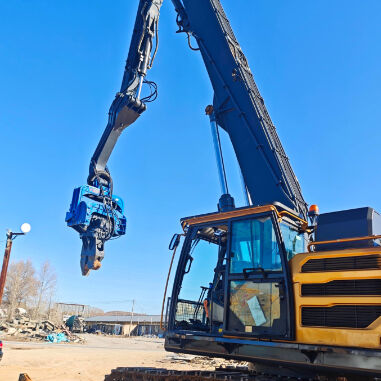

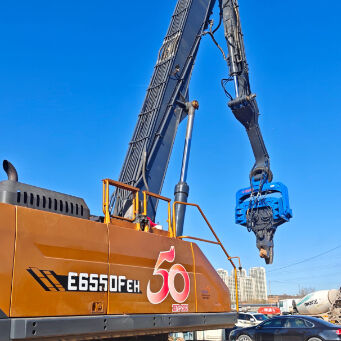

Compact Structure Confined Spaces Hydraulic Pile Driver With Integrated Control Valve Assembly – FV280 Photovoltaic Pile Driver

The FV280 Hydraulic Pile Driver is a specialized attachment engineered for 20–30 ton excavators, delivering exceptional pile driving and extraction performance across diverse foundation applications. As a reliable Hydraulic Pile Driver, this unit is specifically optimized for photovoltaic pile installation while maintaining versatility for steel sheet piles, H-beams, steel pipe piles, and precast concrete piles. Its compact dimensions and high-frequency vibration make it the ideal choice for contractors working in confined job sites, renewable energy projects, and urban infrastructure developments across Southeast Asia, India, and Russia.

The FV280 represents the fourth generation of hydraulic pile driver technology, featuring a more rational mechanical structure with exceptional stability. Whether you are installing solar panel foundations in Thailand, driving retaining walls in Mumbai, or constructing bridge foundations in Siberia, the FV280 delivers consistent, reliable performance that keeps projects moving efficiently.

The FV280 delivers outstanding high frequency vibration output at 3200 rpm, generating 335 kN of centrifugal force to rapidly liquefy surrounding soil and reduce friction resistance during pile driving. This high-frequency vibration, driven by the excavator's hydraulic system, creates a vertical oscillating force that breaks soil structure and allows piles to penetrate with minimal resistance. The result is faster driving times, reduced fuel consumption, and less stress on both the pile and the equipment.

The high frequency vibration output is particularly advantageous when working in challenging geological conditions common across Southeast Asia's marine clays, India's dense alluvial soils, and Russia's moraine deposits. The vibration frequency effectively overcomes soil resistance, allowing the FV280 to drive piles to depths of 12 meters with ease.

The FV280 features a sophisticated dual pump flow merging system that provides two-stage vibration control for optimal performance in varying ground conditions. The first stage delivers standard vibration for normal soil conditions, while the second stage engages the dual pump flow merging system to significantly increase flow and dramatically boost excitation force. This capability is invaluable when encountering unexpected hard layers, gravel lenses, or compacted fill that would stop lesser hammers.

This innovative dual pump flow merging system enables the FV280 to overcome special geological challenges without requiring a larger, heavier, or more expensive machine. The flow merging increases hydraulic efficiency by combining the output of multiple pump sections, delivering more power to the vibration mechanism when it is most needed. This results in 30–40% faster penetration in difficult ground compared to single-flow systems.

The FV280 is equipped with a premium integrated control valve assembly that consolidates all hydraulic control functions into a single, compact unit. This assembly uses imported control valves with independent action control for each function – vibration start/stop, frequency selection, clamp operation, and tilt adjustment. The integrated control valve assembly simplifies maintenance and troubleshooting, as all valve components are centralized and easily accessible.

The independent control design means operators can adjust vibration frequency, clamp pressure, and other parameters independently without affecting other functions. This precision control is essential for delicate operations such as driving precast concrete piles without causing damage, or adjusting grip force for different pile materials. The integrated control valve assembly also enhances safety by providing fail-safe features that prevent accidental operation.

The FV280 features a compact structure confined spaces design that allows operation in tight job sites where conventional pile drivers cannot access. With a hammer weight of only 1900 kg and an arm weight of 500 kg, the total attachment weight is significantly less than equivalent hydraulic impact hammers. This compact structure confined spaces advantage enables the FV280 to work in narrow river channels, between existing building foundations, inside warehouse facilities, and along congested urban streets.

The small footprint and lightweight construction also reduce transportation costs and allow for easier handling on multi-story construction sites where crane access is limited. For photovoltaic farms covering vast areas, the compact structure confined spaces design means excavators can move quickly between pile positions without the need for oversized transport or specialized rigging.

The FV280 utilizes the excavator's existing hydraulic system without requiring an external power source. This direct connection saves fuel costs (no separate diesel engine to operate), reduces transportation requirements, and eliminates the complexity of managing two independent power systems. Any 20–30 ton excavator – regardless of brand – can be equipped with the FV280 with minimal modification, making it a cost-effective upgrade for existing fleets.

The FV280 drives and extracts a wide range of pile types:

• Photovoltaic piles – optimized for solar panel foundations

• Steel sheet piles – U-type and Z-type for retaining walls and cofferdams

• H-beams – for building support structures

• Steel pipe piles – up to 12 meters in length

• Precast concrete piles – for building foundations

• Timber piles – for waterfront and riverbank projects

Southeast Asia: The FV280 excels in photovoltaic farm construction across Thailand, Vietnam, and Indonesia, where thousands of piles must be installed quickly and economically. The compact design and high-frequency vibration efficiently penetrate soft marine clays and alluvial soils. The dual pump flow merging system overcomes occasional hard layers without equipment change.

India: For large-scale infrastructure projects including metro construction, bridge foundations, and renewable energy parks across Gujarat, Rajasthan, and Tamil Nadu, the FV280 offers reliable performance and low operating costs. The integrated control valve assembly with independent action control simplifies maintenance, reducing downtime and keeping projects on schedule.

Russia: The robust design performs reliably in extreme cold conditions down to -20°C. The direct hydraulic connection eliminates diesel cold-start problems, while the high-frequency vibration effectively penetrates frozen ground and permafrost layers common in Siberian and Far East projects.
