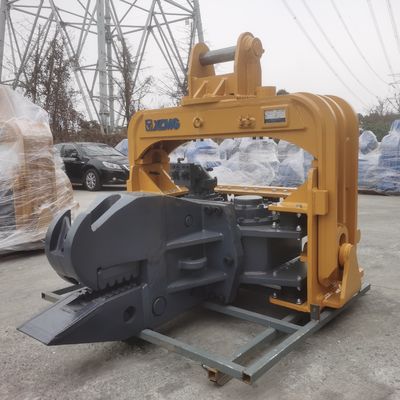

30Mpa Hydraulic Pile Driver For 8 Meter Sheet Piling Work

30Mpa Hydraulic Pile Driver For 8 Meter Sheet Piling Work
30Mpa Hydraulic Pile Driver For 8 Meter Sheet Piling Work

Large Image :  30Mpa Hydraulic Pile Driver For 8 Meter Sheet Piling Work

Product Details:
Place of Origin: Shanghai, China
Brand Name: VIBRA
Certification: ISO 9001:2015
Model Number: FV-150
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 15000 to 25000 USD
Packaging Details: 4 CBM
Delivery Time: 7-35 days
Payment Terms: L/C, T/T, D/P
Supply Ability: 15 Set/Month
Detailed Product Description
Name: Hydraulic Pile Driving Equipment Feature: ISO 9001:2015 Certified
Operation Pressure: 30 Mpa Arm Weight: 260 Kg
Hammer Weight: 1100 Kg Vibration Frequency: 2500 Rpm
Centrifugal Force: 172 Kn Excavator: 12~17 Ton
HS Code: 8430100000 Color: Blue, Any Customized Color Available
Max Piling Depth: 14m For Soft Soil, 8m For Normal Soil Material: Steel, Core Materials Are All Imported
Type: Hydraulic Vibrating Hammer Condition: New And Used Both Available
High Light:

30Mpa Pile Driver Machine

,

8 Meter Sheet Static Pile Driver

,

Hydraulic Vibratory Pile Driver

Description



VIBRA vibrating pile hammer is utilizing its high frequency vibration to vibrate pile body with high-speed increase to pass the vertical vibration of mechanical produce to pile which prompting changes in the soil structure around the pile, strength decline. Soil around the piles become liquefaction to lessen frictional opposition between side of the pile and the soil. Then, at that point, utilizing the excavator down power, vibrating pile hammer and pile body weight to sink pile into the soil. When extricating piles, in the state of vibration to take out the pile by utilizing excavator lift power. Excitation power required by pile driving hardware are extensive controlled by site soil, soil condition, dampness content and sort of pile development.



Features



VIBRA hydraulic vibratory hammer is the vibratory driving piling equipment which is popular among a wide variety of foundation projects.Apart from driving and pulling elements such as sheet piles and pipes, vibratory hammers are also used for soil densifying or vertical drainage, especially suitable for municipal, bridges, cofferdam, building foundation, etc.

With advanced technology, vibratory hammer has advantages of low noise, high efficiency, non-pollution and non-damage to piles,etc.



30Mpa Hydraulic Pile Driver For 8 Meter Sheet Piling Work 0



30Mpa Hydraulic Pile Driver For 8 Meter Sheet Piling Work 1



30Mpa Hydraulic Pile Driver For 8 Meter Sheet Piling Work 2



Technical Parameters



Item FV-150 FV-250 FV-280 FV-300 FV-330
Vibration Frequency (rpm) 2500 2500 2800 3200 3200
Operation Pressure (Mpa) 30 30 32 32 32
Centrifugal Force (KN) 172 265 335 350 372
Max.Pile Length (m) 8 10 12 12 12
Arm Weight (kg) 260 500 500 670 670
Hammer Weight (kg) 1100 1700 1900 2100 2300
Excavator (T) 12~17 20-30 20-30 30-35 33-40





30Mpa Hydraulic Pile Driver For 8 Meter Sheet Piling Work 3

FAQ



Q: How long is the warranty period ?



A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.



Q: What is the MOQ?



A: 1 set is available.



Q: What's the payment method?



A: We accept T/T and D/P payment.



Q: What is the delivery time?



A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.



Q: Can I have our LOGO on the machine?



A: Of course you can.



Q: How is your product quality?



A: Our production unit is ISO 9001:2015 certified. Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".
