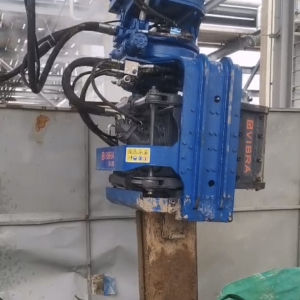

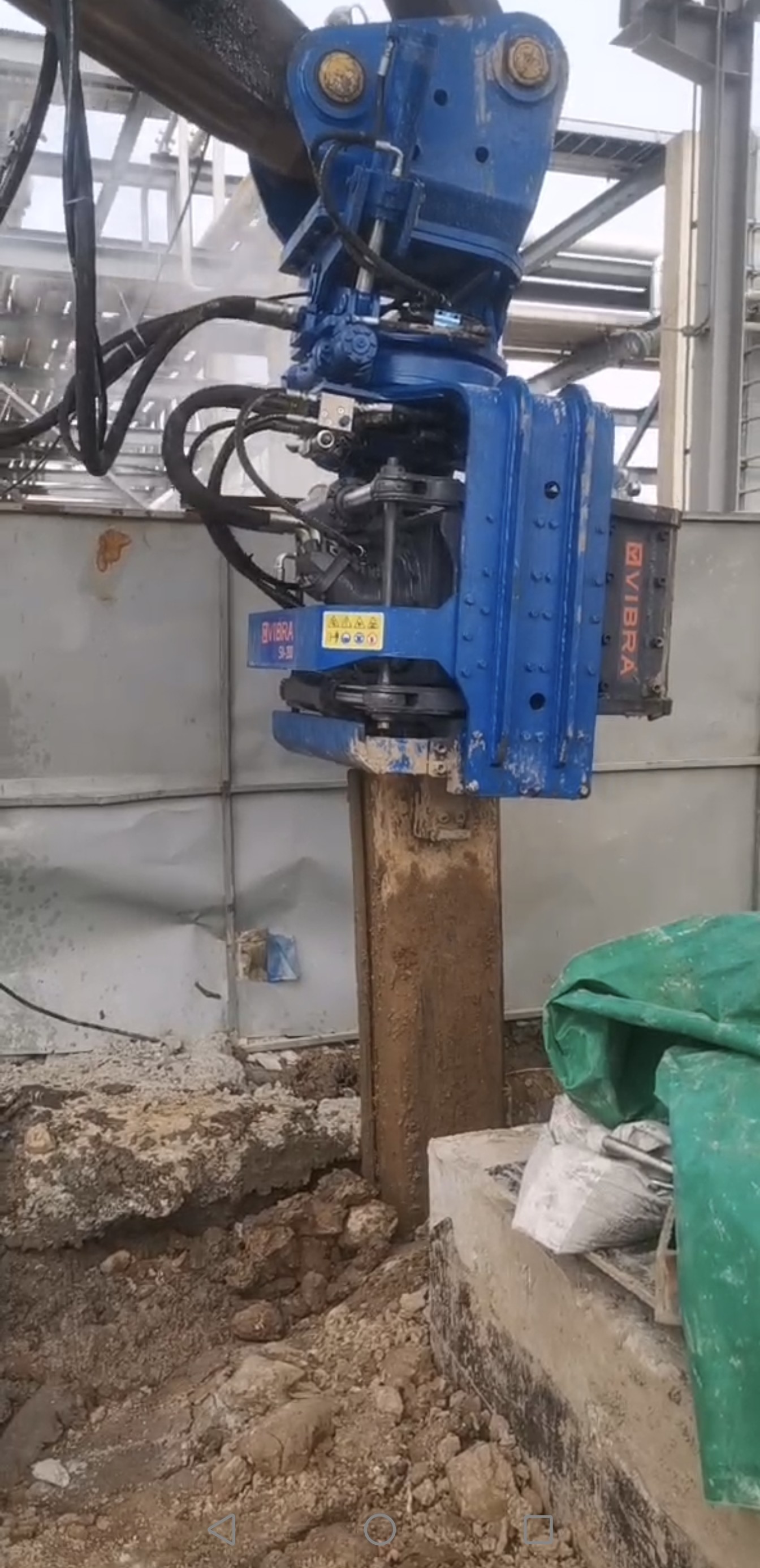

12 Meter Sheet Hydraulic Press Pile Machine For Excavator

12 Meter Sheet Hydraulic Press Pile Machine For Excavator
12 Meter Sheet Hydraulic Press Pile Machine For Excavator

Large Image :  12 Meter Sheet Hydraulic Press Pile Machine For Excavator

Product Details:
Place of Origin: SHANGHAI
Brand Name: VIBRA
Certification: ISO 9001:2015
Model Number: FV-280
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 15000 to 25000 USD
Packaging Details: 5.1 CBM
Delivery Time: 7-35 days
Payment Terms: L/C, T/T, D/P
Supply Ability: 15 set/month
Detailed Product Description
Name: Solar Pile Driver Arm Weight: 500kg
Operation Pressure: 32Mpa Hammer Weight: 1900kg
Vibration Frequency: 2800rpm Centrifugal Force: 335KN
Excavator: 20-30T Maximum Piling Depth: 12 Meter
Material: Steel, Core Materials Are All Imported Color: Blue/Yellow, Customized Color Available
Condition: New And Used Both Available Type: Hydraulic Vibrating Hammer
HS Code: 84301000
High Light:

Sheet Hydraulic Press Pile Machine

,

Hydraulic Press Pile Machine For Excavator

,

12 Meter Sheet Pile Driver Machine



Description

Manufactured to the highest possible standards the Solar Pile Driver comes with a 12 month warranty, making it the best choice for the demands of solar pile driving. Our specialised and experienced team are here to support you from purchase, supply of parts and technical support right throughout the life of the machine.

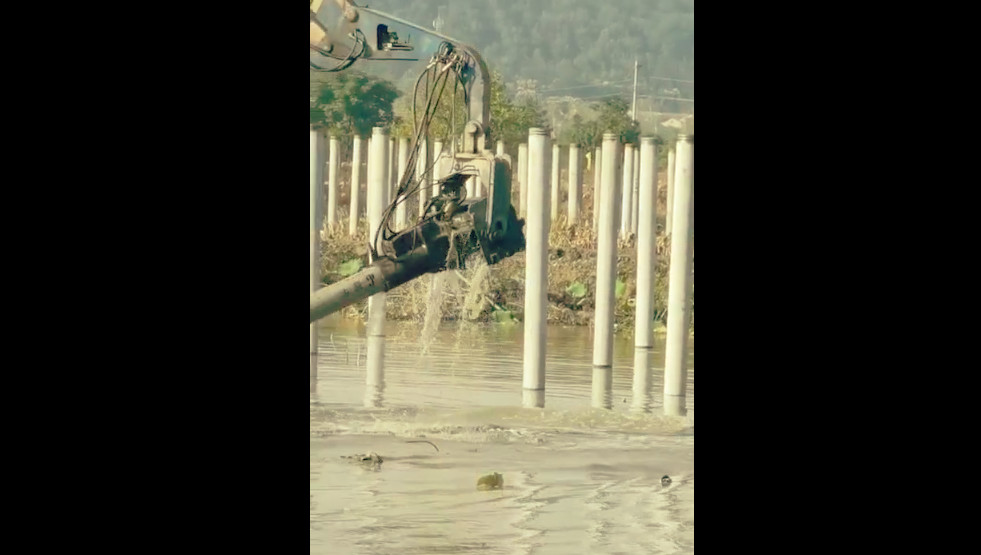

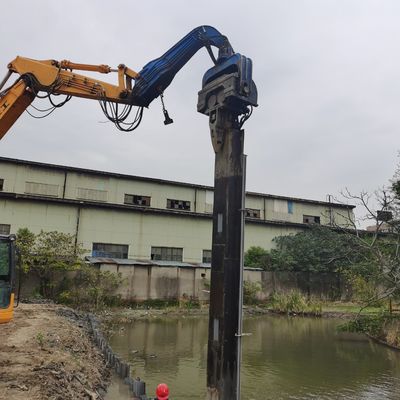

VIBRA vibrating pile hammer is utilizing its high frequency vibration to vibrate pile body with high-speed increase to pass the vertical vibration of mechanical produce to pile which prompting changes in the soil structure around the pile, strength decline. Soil around the piles become liquefaction to lessen frictional opposition between side of the pile and the soil. Then, at that point, utilizing the excavator down power, vibrating pile hammer and pile body weight to sink pile into the soil. When extricating piles, in the state of vibration to take out the pile by utilizing excavator lift power. Excitation power required by pile driving hardware are extensive controlled by site soil, soil condition, dampness content and sort of pile development.

Equipment Advantage

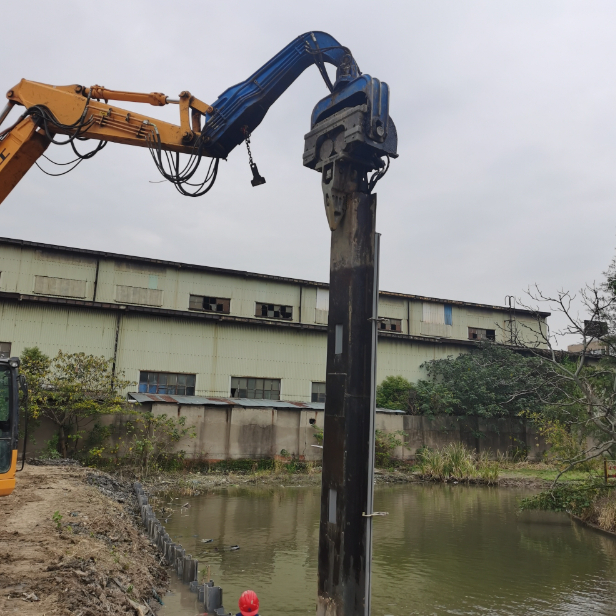

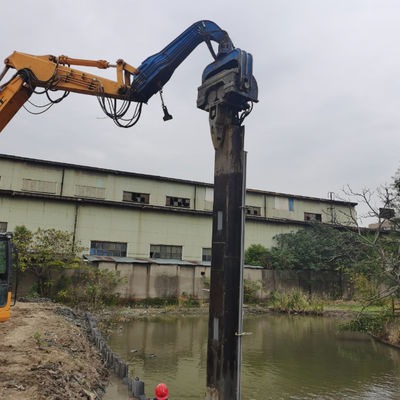

By assisting different clasps, it can sink and pull out heap of wood, solid pile, steel sheet pile, steel pipe pile, H-shaft steel, steel shield, etc

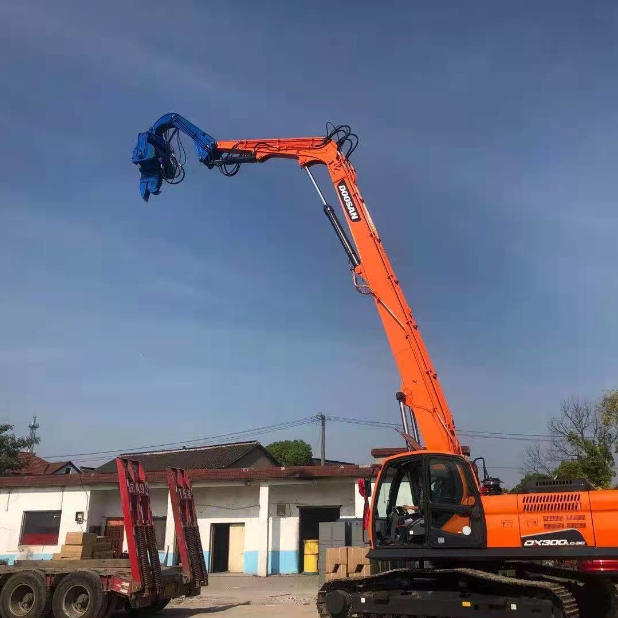

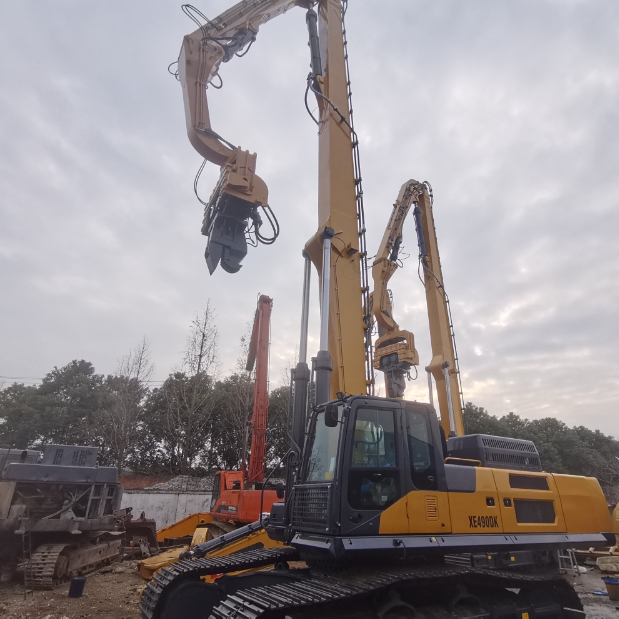

Essentially any 6-60 ton excavator of any brand can be used for piling

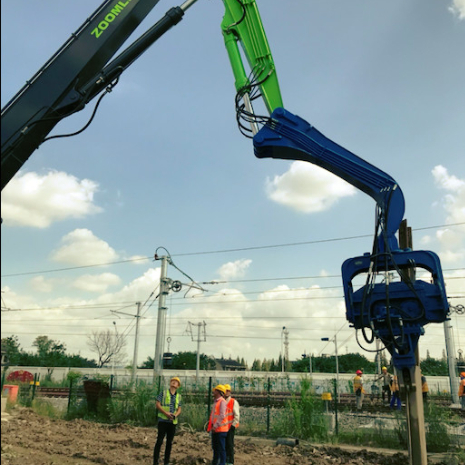

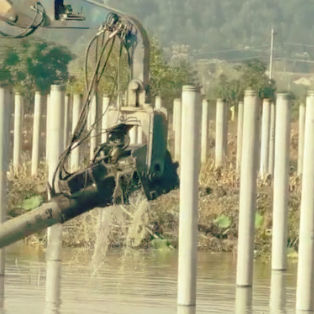

It is for the most part used in stream bank, house foundation, metropolitan association, interface, photovoltaic pile and various foundations advancement fields


Technical Parameter


Item FV-250 FV-280 FV-300 FV-330 FV-350L FV-350 FV-400
Vibration Frequency (rpm) 2500 2800 3200 3200 3200 3200 3200
Operation Pressure (Mpa) 30 32 32 32 32 32 32
Centrifugal Force (KN) 265 335 350 372 435 455 485
Max.Pile Length (m) 10 12 12 12 15 15 18
Arm Weight (kg) 500 500 670 670 670 750 750
Hammer Weight (kg) 1700 1900 2100 2300 2400 2600 2700
Excavator (T) 20-30 20-30 30-35 33-40 35-40 40-45 45-60


About Us

Ye Kun Construction Machinery Co., Ltd. is one specialized is engaged in the vibration sinking pile drawing machine equipment production, sale and service of technology-oriented enterprises, products mainly emerging a high-speed hydraulic pile drawing machine and peripheral accessories, equipment widely used in all kinds of foundation engineering construction.

After a short period of development, the company won the recognition of customers, and the annual sales growth doubled. Marketing the country with the VIBRA brand and export it. The company′s production of mini hydraulic pile driver, vibration hammer and other products quality has reached the advanced level of the industry.

The company has a young and enterprising team cooperation, in order to respect the customer value as self value, to become the most reliable, the most comprehensive, the most professional vibration pile machine equipment and service suppliers and make unremitting efforts.

FAQ

Q: How long is the warranty period ?

A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.

Q: What is the MOQ ?

A: 1 set is available.

Q: What's the payment method ?

A: We accept T/T and D/P payment.

Q: What is the delivery time ?

A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.

Q: Can I have our LOGO on the machine ?

A: Of course you can.

Q: How is your product quality ?

A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".

Q: Can I be your dealer ?

A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!

Q: How To Order?

A:
1. Please tell us the model with quantity and other requirement which you needed.
2. We issue the Proforma Invoice to you after confirmed the price and other details.
3. We arrange the order production upon receipt of confirmed PI and your deposit or original L/C.
4. After the goods is ready to ship, we will inform you the shipment date and other informations by email at the same time.
5. We will help to track your goods until you receive them safely.
