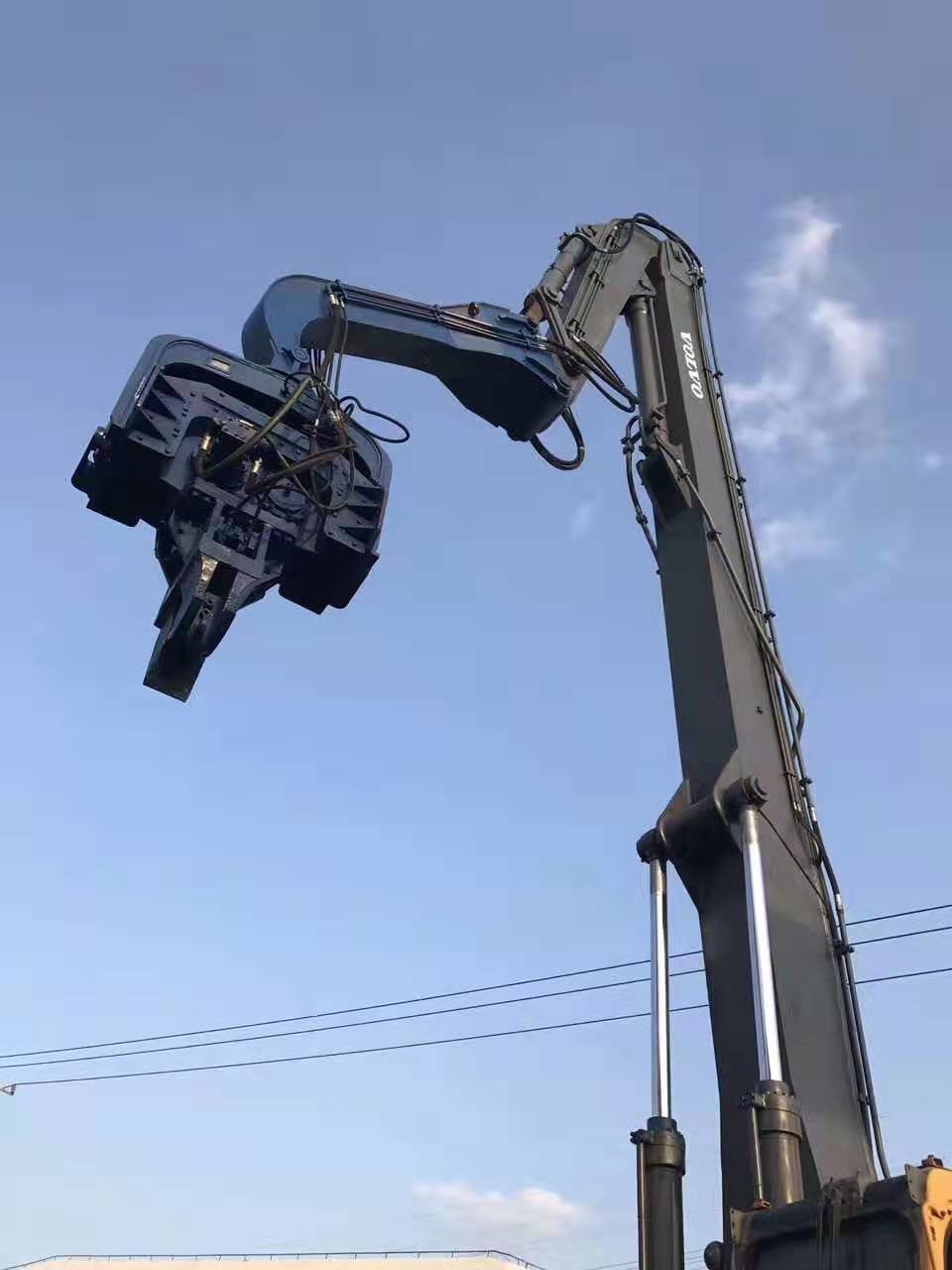

High Speed Sheet Pile Driving Machine , 40-45T Excavator Sheet Pile Driver
|Name||Sheet Pile Driving Machine||Feature||Short Working Period|
|Vibration Frequency||3200rpm||Operation Pressure||32Mpa|
|Arm Weight||750kg||Hammer Weight||2600kg|
sheet pile driving equipment,
sheet pile driver
To ensure the high working efficiency of the whole machine, we use hydraulic systems with big power and great flow, the pile driving mechanism with multi-speed control and being quick in getting ready for operation.
- Driving and pulling steel sheet pile, cement pile, steel rail pile, iron plate, H steel
- Quick converting operation; Applied to various working environments.
- Compared to other systems , less force required for pile pulling
- Not damage the top or bottom of steel pipe pile, steel plate pile and steel rail pile.
- Not damage the building even often work near it
- Adopted Rubber sheath to reduce noise and vibration, the operation is quiet and the working period is short；It is helpful to overcome environmental problems.
- According to the placement direction of sheet pile and site conditions, the sheet pile can be clamped or lowered by positive and negative rotation of 180 °. The vibration frequency can be adjusted by two levels, and the two-level double pumps are combined to greatly increase the excitation force.
- Hydraulic motor has small volume and light weight, but it can output high power and high speed.
- Vibration frequency can be adjusted by variable pump. It can be used in excavator operation of any brand, and can meet different work requirements only after changing chucks.
|Vibration Frequency (rpm)||2500||2800||3200||3200||3200||3200||3200|
|Operation Pressure (Mpa)||30||32||32||32||32||32||32|
|Centrifugal Force (KN)||265||335||350||372||435||455||485|
|Max.Pile Length (m)||10||12||12||12||15||15||18|
|Arm Weight (kg)||500||500||670||670||670||750||750|
|Hammer Weight (kg)||1700||1900||2100||2300||2400||2600||2700|
Shanghai yekun Machinery Co., Ltd was founded in 2014, A professional company involving in hydraulic vibrating pile driver manufacture, sale and service. Our company take the latest high speed hydraulic vibrating pile driver and its components as the main products. Our products vastly apply for infrastructure & construction industries.
We focus on product quality with the latest industrial technology. The mini hydraulic vibrating pile driver lead the industrial trend. The middle and large hydraulic vibrating pile driver also are highly recognized by our clients. At the same time, we actively cooperated with the engineering machinery factory and construction company to jointly develop more functional professional equipment, and we hired foreign professionals as our technical adviser.
Our company is consisting of a young, enthusiasm professional team. Adhere to client as priority, Quality as first concern, Management as foundation. We are working for the direction to become the most professional and comprehensive hydraulic vibrating pile driver manufacture and service supplier.
