High Speed Excavator Mounted Sheet Pile Driver Quick Converting Operation

Certification
China Shanghai Yekun Construction Machinery Co., Ltd. certification
China Shanghai Yekun Construction Machinery Co., Ltd. certification
I'm Online Chat Now

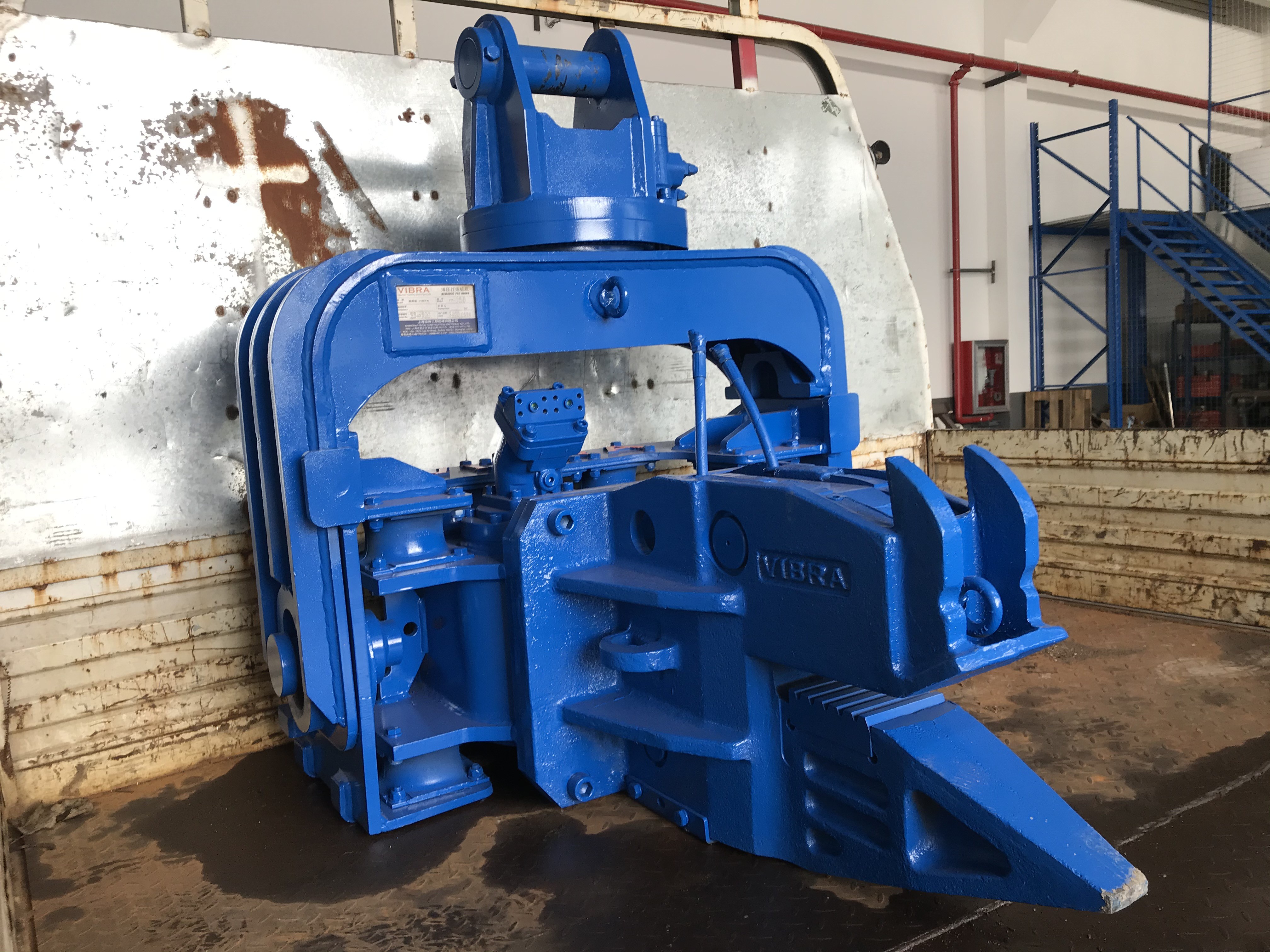

High Speed Excavator Mounted Sheet Pile Driver Quick Converting Operation

China High Speed Excavator Mounted Sheet Pile Driver Quick Converting Operation supplier
High Speed Excavator Mounted Sheet Pile Driver Quick Converting Operation supplier

Large Image :  High Speed Excavator Mounted Sheet Pile Driver Quick Converting Operation

Product Details:

Place of Origin: SHANGHAI
Brand Name: VIBRA
Model Number: FV-350

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Delivery Time: 1-8 days
Payment Terms: L/C, T/T, D/P
Contact Now
Detailed Product Description
Name: Excavator Mounted Sheet Pile Driver Feature: High Speed
Vibration Frequency: 3200rpm Operation Pressure: 32Mpa
Hammer Weight: 2600kg Arm Weight: 750kg
Max.Pile Length: 15m
High Light:

excavator mounted wood pile driver

,

excavator mounted vibro hammer



Convenience in dismantling, transportation and maintenance



Since we have constantly improved our design of pile drivers , every part of the machine is easy to be taken apart, which provides convenience in transportation and maintenance.



Compared with the pile drivers made by other companies, ours are more convenient to be taken apart and shipped as the connection and lay out of the long boat and the short boat are different.



Features



  • Pile driving steel sheet pile, cement pile, steel rail pile, iron plate, H steel
  • Quick converting operation; Applied to various working environments.
  • Compared to other systems , less force required for pile pulling
  • Not damage the top or bottom of steel pipe pile, steel plate pile and steel rail pile.
  • Not damage the building even often work near it.
  • Adopted Rubber sheath to reduce noise and vibration, the operation is quiet and the working period is short;It is helpful to overcome environmental problems.
  • According to the placement direction of sheet pile and site conditions, the sheet pile can be clamped or lowered by positive and negative rotation of 180 °. The vibration frequency can be adjusted by two levels, and the two-level double pumps are combined to greatly increase the excitation force.
  • Hydraulic motor has small volume and light weight, but it can output high power and high speed.
  • Vibration frequency can be adjusted by variable pump. It can be used in excavator operation of any brand, and can meet different work requirements only after changing chucks.



Technical Parameter



Item FV-250 FV-280 FV-300 FV-330 FV-350L FV-350 FV-400
Vibration Frequency (rpm) 2500 2800 3200 3200 3200 3200 3200
Operation Pressure  (Mpa) 30 32 32 32 32 32 32
Centrifugal Force   (KN) 265 335 350 372 435 455 485
Max.Pile Length  (m) 10 12 12 12 15 15 18
Arm Weight  (kg) 500 500 670 670 670 750 750
Hammer Weight  (kg) 1700 1900 2100 2300 2400 2600 2700
Excavator  (T) 20-30 20-30 30-35 33-40 35-40 40-45 45-60



About Us



Shanghai yekun Machinery Co., Ltd was founded in 2014, A professional company involving in hydraulic vibrating pile driver manufacture, sale and service. Our company take the latest high speed hydraulic vibrating pile driver and its components as the main products. Our products vastly apply for infrastructure & construction industries.



We focus on product quality with the latest industrial technology. The mini hydraulic vibrating pile driver lead the industrial trend. The middle and large hydraulic vibrating pile driver also are highly recognized by our clients. At the same time, we actively cooperated with the engineering machinery factory and construction company to jointly develop more functional professional equipment, and we hired foreign professionals as our technical adviser.



Our company is consisting of a young, enthusiasm professional team. Adhere to client as priority, Quality as first concern, Management as foundation. We are working for the direction to become the most professional and comprehensive hydraulic vibrating pile driver manufacture and service supplier.



FAQ



Q: How long is the warranty period ?

A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.



Q: What is the MOQ ?

A: One set is available.



Q: What's the payment method ?

A: We accept L/C, T/T and D/P payment.



Q: What is the delivery time ?

A: The delivery time is generally 1-8 days, and arrive at Shanghai Port. Shipping time should be considered overseas.



Q: Can I have our LOGO on the machine ?

A: Of course you can.



Q: How is your product quality ?

A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".



Q: Can I be your dealer ?

A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!
