Shockproof 2000mm Yellow Vibro Hydraulic Pneumatic Electric Pile Driver

Certification
China Shanghai Yekun Construction Machinery Co., Ltd. certification
China Shanghai Yekun Construction Machinery Co., Ltd. certification
I'm Online Chat Now

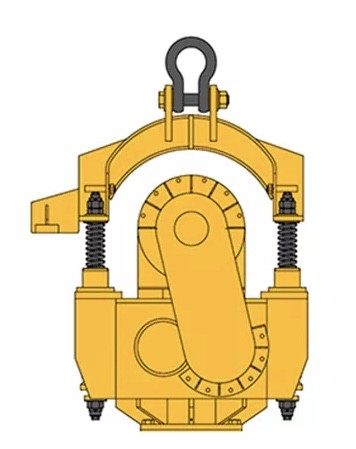

Shockproof 2000mm Yellow Vibro Hydraulic Pneumatic Electric Pile Driver

Shockproof 2000mm Yellow Vibro Hydraulic Pneumatic Electric Pile Driver
Shockproof 2000mm Yellow Vibro Hydraulic Pneumatic Electric Pile Driver Shockproof 2000mm Yellow Vibro Hydraulic Pneumatic Electric Pile Driver Shockproof 2000mm Yellow Vibro Hydraulic Pneumatic Electric Pile Driver Shockproof 2000mm Yellow Vibro Hydraulic Pneumatic Electric Pile Driver

Large Image :  Shockproof 2000mm Yellow Vibro Hydraulic Pneumatic Electric Pile Driver

Product Details:
Place of Origin: Shanghai, China
Brand Name: Electric Vibrating PIle Hammer/Driver
Model Number: DZ-90A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 15 work days
Payment Terms: L/C, T/T
Detailed Product Description
Pile Diameter: φ 500-1200mm, φ 500-2000mm Total Weight: 5670 Kg
Allowable Pulling Force: 240 K N Eccentric Moment: 460 N M
Motor Power: 90kw Crawler Crane Specifications: 50 T
High Light:

2000mm Electric Pile Driver

,

shockproof hydraulic pile driver

,

2000mm pneumatic Pile Driver

Working Principle

The motor for our hammer drives the two groups of eccentric blocks to run in an opposite direction, from which the transverse centrifugal forces produced will be neutralized, while the vertical centrifugal forces will be added. So the eccentric axle runs fast to have the whole system vibrate vertically up and down to sink the piles. It constructions is composed of shock absorber, vibrator and electric system.



DZ90A is currently the most widely used pile foundation construction equipment in China.

1. The equipment is designed for low noise, clean and environmentally friendly

2. The gearbox lubricating oil is a heavy-duty gear oil for German Volkswagen, which does not need to be replaced within one year under normal operation

3. The shock-resistant motor is the top domestic brand

4. High-quality after-sales service, our after-sales engineers will provide you with after-sales and technical related services at any time

Product parameter

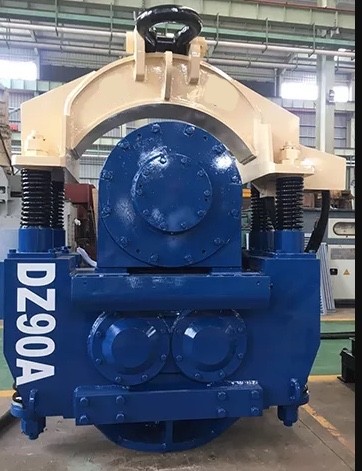

DZ90A
Motor Power 90 k W
Vibration frequency 1050 R/MIN
Eccentric moment 460 N m
Exciting force 570 k N
No-load amplitude 10.3 mm
Allowable pulling force 240 k N
Dimensions (height × length × width) 2.56 m × 1.53 m × 1.1 m
total weight 5670 kg
Can be equipped with fixture Single fixture / steel pipe fixture
Pile diameter φ 500-1200mm, φ 500-2000mm
Generator power 300 kw
Crawler crane specifications 50 t
