12 Meter Hydraulic Piling Vibro Hammer With 385KN Force
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Vibration Frequency | 3500 Rpm | Operation Pressure | 32 Mpa |
|---|---|---|---|
| Centrifugal Force | 385 Kn | Maximum Pile | 12 M |
| Arm Weight | 750 Kg | Hammer Weight | 2750 Kg |
| Excavator | 27~30 T | Material | Steel, Core Materials Are All Imported |
| Type | Hydraulic Vibrating Hammer | Condition | New And Used Both Available |
| HS Code | 8430100000 | Color | Yellow/Blue/Red/White, Customized Color Available |
| High Light | 12 Meter Piling Vibro Hammer,Hydraulic Piling Vibro Hammer,Vibro Hydraulic Sheet Pile Driver |
||
Product Description

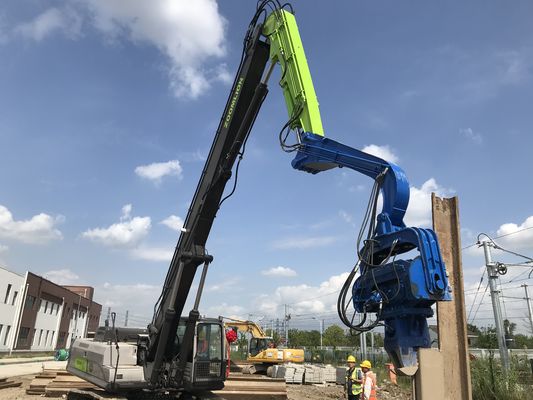

12meter piling with 385KN force vibro hammer suitable for all kind of piling projects
Description
VIBRA vibrating pile hammer is utilizing its high frequency vibration to vibrate pile body with high-speed increase to pass the vertical vibration of mechanical produce to pile which prompting changes in the soil structure around the pile, strength decline. Soil around the piles become liquefaction to lessen frictional opposition between side of the pile and the soil. Then, at that point, utilizing the excavator down power, vibrating pile hammer and pile body weight to sink pile into the soil. When extricating piles, in the state of vibration to take out the pile by utilizing excavator lift power. Excitation power required by pile driving hardware are extensive controlled by site soil, soil condition, dampness content and sort of pile development.
Product Details
This course of activity of machines are standard with clients . The structure of the case body is reliable with that of the standard Taiwan hammer . The extra parts are replaceable. The compartment bearing is broken and simple to be kept up. The made box structure has higher necessities for material quality , welding degree and machining precision . We have extraordinary control in all pieces of storing up to guarantee steady quality. We have suitably fabricated the most noteworthy demonstrate pcf-500, which matches with Cat 365.
| Item Model | PCF-300 | PCF-330 | PCF-350 | PCF-450 | PCF-500 | |
| Frequency | rpm | 3500 | 3300 | 3500 | 3300 | 3200 |
| Pressure | Mpa | 32 | 32 | 32 | 32 | 32 |
| Centrifugal Force | kn | 385 | 420 | 470 | 535 | 585 |
| Max. Pile Length | m | 12 | 12 | 15 | 18 | 21 |
| Arm Weight | kg | 750 | 750 | 750 | 820 | 820 |
| Hammer Weight | kg | 2750 | 2850 | 2950 | 3150 | 3350 |
| Excavator | T | 27~30 | 33~38 | 40~45 | 47~55 | 55~70 |
Features
VIBRA hydraulic vibratory hammer is the vibratory driving piling equipment which is popular among a wide variety of foundation projects.Apart from driving and pulling elements such as sheet piles and pipes, vibratory hammers are also used for soil densifying or vertical drainage, especially suitable for municipal, bridges, cofferdam, building foundation, etc.
With advanced technology, vibratory hammer has advantages of low noise, high efficiency, non-pollution and non-damage to piles,etc.
Equipment Advantage
- The vibration repeat is high , the fortifying drive is tremendous , and the quality of each essential portion is high
- Extremely significant cast steel mechanical assembly , extended oil chamber and meddle bar, high trustworthiness
- The entire machine course of activity is high , and the central focuses of Rexroth vibration engine are imported first-line brands
Application scope
| By assisting different clasps, it can sink and pull out heap of wood, solid pile, steel sheet pile, steel pipe pile, H-shaft steel, steel shield, etc |
| Essentially any 6-60 ton excavator of any brand can be used for piling |
| It is for the most part used in stream bank, house foundation, metropolitan association, interface, photovoltaic pile and various foundations advancement fields |
FAQ
Q: Are you a manufacturer?
A: Yes, we have been in this field for more than 12 years, our factory is in Suzhou and you are welcome to visit our unit anytime during working hour period,
Q: Who is your main customer?
A: Our customers are spreading all over the China with some abroad countries as well namely from New Zealand, Malaysia, Indonesia and many more are joining in the list. Brands like XCMG, SANY, Zoomlion, Caterpillar and Hyundai are our valuable customers.
Q: How long is the warranty period ?
A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.
Q: What is the MOQ ?
A: 1 set is available.
Q: What's the payment method ?
A: We accept T/T and D/P payment.
Q: What is the delivery time ?
A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.
Q: Can I have our LOGO on the machine ?
A: Of course you can.
Q: How is your product quality ?
A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".
Q: Can I be your dealer ?
A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!
Q: How to order?
A:
1. Please tell us the model with quantity and other requirement which you needed.
2. We issue the Proforma Invoice to you after confirmed the price and other details.
3. We arrange the order production upon receipt of confirmed PI and your deposit or original L/C.
4. After the goods is ready to ship, we will inform you the shipment date and other informations by email at the same time.
5. We will help to track your goods until you receive them safely.
