3.15T Excavator Mounted Pile Driver For Environment Friendly Construction

3.15T Excavator Mounted Pile Driver  For Environment Friendly Construction
3.15T Excavator Mounted Pile Driver  For Environment Friendly Construction

Large Image :  3.15T Excavator Mounted Pile Driver For Environment Friendly Construction

Product Details:
Place of Origin: Shanghai, China
Brand Name: VIBRA
Model Number: PCF-450
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 23,000 to 32,000 USD
Delivery Time: 7-35 days
Payment Terms: L/C, T/T
Supply Ability: 10 set/month
Detailed Product Description
Vibration Frequency: 3300 Rpm Operation Pressure: 32 Mpa
Centrifugal Force: 535 Kn Maximum Pile: 18 M
Arm: 820 Kg Hammer: 3150 Kg
Excavator: 47~55 T Color: Blue
High Light:

3.15T Excavator Mounted Pile Driver

,

18M Excavator Mounted Pile Driver

,

3.15T excavator sheet pile driver

Shanghai Yekun Construction Machinery Co., Ltd. is a specialized practical experience in the creation, deals and administration of vibrating pile driver and extractor. Its items are essentially fast water powered pile driver and its encompassing adornments. The gear is generally utilized in different sorts of framework development.

Working Principle

Hydraulic vibrating pile driver take the advantage of high frequency vibration generated by motor and transit the vibration force to the hydraulic vibrating pile driver for the surrounding soil liquefying & break its structure to reduce the friction; then piling or drilling the pile form the soil ground via excavtor. The high frequency vibration is driven by the hydraulic motor of the excavator.

The hydraulic motor drives the two eccentric axes to rotate at high speed in opposite direction. The horizontal force of the eccentric axis cancels each other without vibration. The vertical forces add up to each other, creating a vertical-frequency vibration.

Product Details

This series of machines are popular with clients. The structure of the hammer body is like of the standard Taiwan pile driver. The spare parts are replaceable. The box bearing is broken and easy to be kept up. The structure of the box has higher necessities for material strength, welding process and machining accuracy. We have extreme control in all pieces of manufacturing to ensure stable quality. We have viably manufactured the greatest model pcf-500, which matches with Cat 365.



Item Model PCF-300 PCF-330 PCF-350 PCF-450 PCF-500
Vibration rpm 3500 3300 3500 3300 3200
Operation Pressure Mpa 32 32 32 32 32
Centrifugal Force kn 385 420 470 535 585
Max. Pile Length m 12 12 15 18 twenty one
Arm Weight kg 750 750 750 820 820
Hammer Weight kg 2750 2850 2950 3150 3350
Excavator Operating Weight T 27~30 33~38 40~45 47~55 55~70





Equipment Advantage



  • The vibration frequency is high, the stimulating force is huge, and the strength of each fundamental part is high
  • Extremely profound cast steel mechanical assembly, expanded oil chamber and interfacing bar, high trustworthiness
  • The whole machine configuration is high, and the main parts of Rexroth vibration motor are imported first-line brands

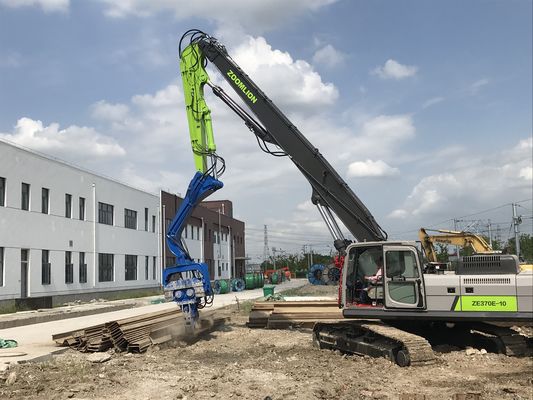

3.15T Excavator Mounted Pile Driver  For Environment Friendly Construction 0



Area of ​​Application



By assisting different clasps, it can sink and pull out heap of wood, solid pile, steel sheet pile, steel pipe pile, H-shaft steel, steel shield, etc.
Applicable for any 6-60 ton excavator of any brand for piling
Used in stream bank, house foundation, metropolitan association, interface, photovoltaic pile and various foundations advancement fields



3.15T Excavator Mounted Pile Driver  For Environment Friendly Construction 1

FAQ



Q: Warranty period?

A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.



Q: MOQ?

A: 1 set.



Q: payment method?

A: L/C, T/T and D/P payment.



Q: delivery time?

A: Generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.



Q: Can I have our LOGO on the machine?

A: Of course you can.



Q: How is your product quality?

A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".



Q: Can I be your dealer?

A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!
