18m Excavator Mounted Pile Driver 60 Ton , Vinyl Sheet Pile Driver

Place of Origin SHANGHAI
Brand Name VIBRA
Certification ISO 9001:2015
Model Number FV-400
Minimum Order Quantity 1 set
Price 26000 to 32000 USD
Packaging Details 7.6 CBM
Delivery Time 7-35 days
Payment Terms L/C, T/T, D/P
Supply Ability 15 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Excavator Mounted Pile Driver Feature Low Noise Easy Operation
Vibration Frequency 3200rpm Operation Pressure 32Mpa
Hammer Weight 2700kg Arm Weight 750kg
Max.Pile Length 18m Centrifugal Force 485 Kn
Excavator 45~60 Ton Material Steel, Core Materials Are All Imported
Type New And Used Both Available Color Blue/Yellow, Customized Color Available
HS Code 8430100000
High Light

18m vinyl sheet pile driver

,

32Mpa vinyl sheet pile driver

,

60 ton Excavator Mounted Pile Driver

Leave a Message
Product Description

Description



VIBRA Vibrating pile hammer is utilizing its high frequency vibration to vibrate pile body with high-speed increase to pass the vertical vibration of mechanical produce to pile which prompting changes in the soil structure around the pile, strength decline. Soil around the piles become liquefaction to lessen frictional opposition between side of the pile and the soil. Then, at that point, utilizing the excavator down power, vibrating pile hammer and pile body weight to sink pile into the soil. When extricating piles, in the state of vibration to take out the pile by utilizing excavator lift power. Excitation power required by pile driving hardware are extensive controlled by site soil, soil condition, dampness content and sort of pile development.



Our Pile Driver is great for Landscaping, Forestry and Building sectors



Piling wooden/cement poles for fences

Pile driving for photovoltaic systems

Piling wooden/cement poles for containment of land

Pile driving for building barriers

Pile driving in agriculture



Features



VIBRA hydraulic vibratory hammer is the vibratory driving piling equipment which is popular among a wide variety of foundation projects.Apart from driving and pulling elements such as sheet piles and pipes, vibratory hammers are also used for soil densifying or vertical drainage, especially suitable for municipal, bridges, cofferdam, building foundation, etc.

With advanced technology, vibratory hammer has advantages of low noise, high efficiency, non-pollution and non-damage to piles,etc.

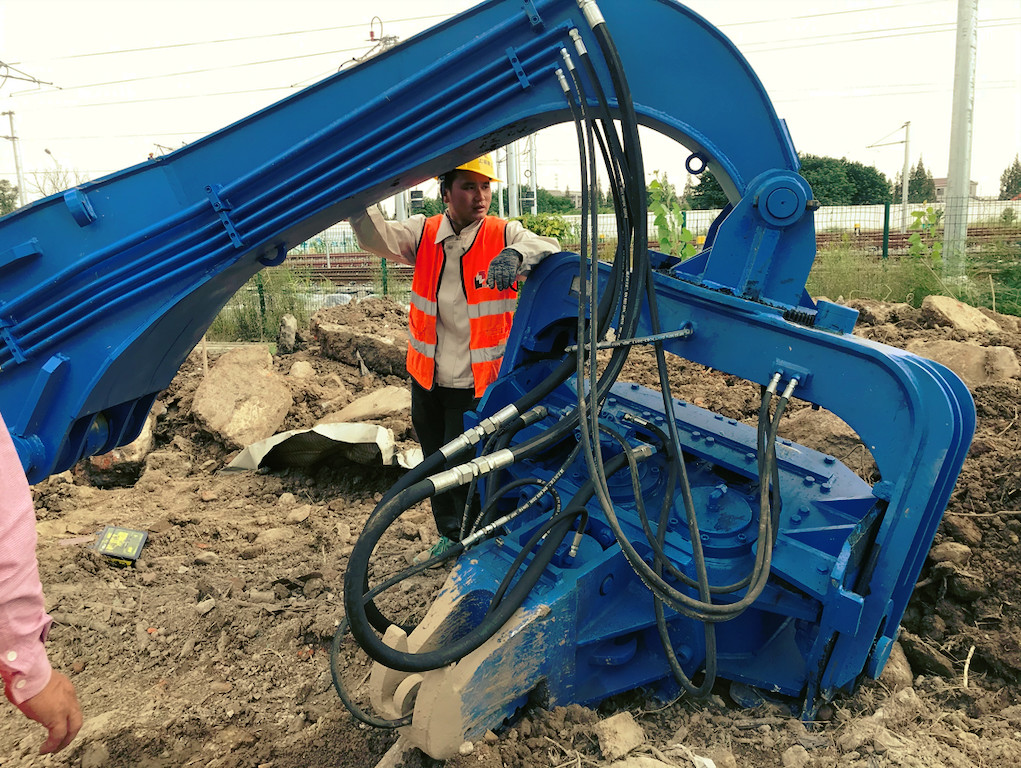

18m Excavator Mounted Pile Driver 60 Ton  , Vinyl Sheet Pile Driver 0



Technical Parameter



Item FV-250 FV-280 FV-300 FV-330 FV-350L FV-350 FV-400
Vibration Frequency (rpm) 2500 2800 3200 3200 3200 3200 3200
Operation Pressure (Mpa) 30 32 32 32 32 32 32
Centrifugal Force (KN) 265 335 350 372 435 455 485
Max.Pile Length (m) 10 12 12 12 15 15 18
Arm Weight (kg) 500 500 670 670 670 750 750
Hammer Weight (kg) 1700 1900 2100 2300 2400 2600 2700
Excavator (T) 20-30 20-30 30-35 33-40 35-40 40-45 45-60



18m Excavator Mounted Pile Driver 60 Ton  , Vinyl Sheet Pile Driver 1



About Us



Shanghai Ye Kun Construction Machinery Co., Ltd. is one specialized is engaged in the vibration sinking pile drawing machine equipment production, sale and service of technology-oriented enterprises, products mainly emerging a high-speed hydraulic pile drawing machine and peripheral accessories, equipment widely used in all kinds of foundation engineering construction.



After a short period of development, the company won the recognition of customers, and the annual sales growth doubled. Marketing the country with the VIBRA brand and export it. The company′s production of mini hydraulic pile driver, vibration hammer and other products quality has reached the advanced level of the industry.



The company has a young and enterprising team cooperation, in order to respect the customer value as self value, to become the most reliable, the most comprehensive, the most professional vibration pile machine equipment and service suppliers and make unremitting efforts.



18m Excavator Mounted Pile Driver 60 Ton  , Vinyl Sheet Pile Driver 2



18m Excavator Mounted Pile Driver 60 Ton  , Vinyl Sheet Pile Driver 3



FAQ



Q: How long is the warranty period ?



A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.



Q: What is the MOQ ?



A: 1 set is available.



Q: What's the payment method ?



A: We accept T/T and D/P payment.



Q: What is the delivery time ?



A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.



Q: Can I have our LOGO on the machine ?



A: Of course you can.



Q: How is your product quality ?



A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".



Q: Can I be your dealer ?



A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!



Q: How To Order?



A:
1. Please tell us the model with quantity and other requirement which you needed.
2. We issue the Proforma Invoice to you after confirmed the price and other details.
3. We arrange the order production upon receipt of confirmed PI and your deposit or original L/C.
4. After the goods is ready to ship, we will inform you the shipment date and other informations by email at the same time.
5. We will help to track your goods until you receive them safely.
