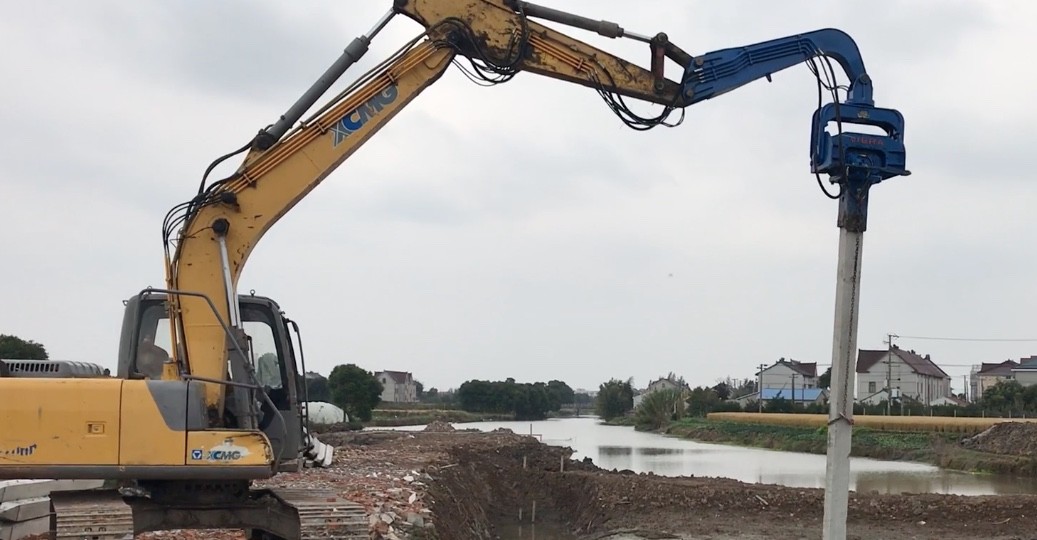

PHC RC Concrete Pile Driving Equipment Multi Speed Control

Place of Origin SHANGHAI
Brand Name VIBRA
Model Number FV-330
Minimum Order Quantity 1 set
Price 23,000 to 32,000 USD
Packaging Details 5.824 CBM
Delivery Time 7-35 days
Payment Terms T/T, D/P, Western Union, MoneyGram
Supply Ability 15 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name RC Pile Driver Feature Up To 300 Sheet Pile Drive Per Day
Vibration 3200 Rpm Pressure 32 Mpa
Centrifugal Force 372 KN Max.Pile 12 M
Arm 670 Kg Hammer 2300 Kg
Color Blue, Customized Color Available
High Light

RC Concrete Pile Driving Equipment

,

PHC Concrete Pile Driving Equipment

,

PHC concrete pile driver

Leave a Message
Product Description



Description



Our pile drivers can work with a variety of piles, square piles or round piles or other shape of steel piles.To ensure the high working efficiency of the whole machine, we use hydraulic systems with big power and great flow, the pile driving mechanism with multi-speed control and being quick in getting ready for operation.



Features



  • High construction speed, vast range of working geology, and widely used in many fields of engineering construction at home and abroad.
  • Environmental friendly: low vibration and noise during construction, not disturbing the residents.
  • Novel design, small volume and convenient transportation.
  • Applied to various types of steel sheet piles, steel casing piles, vibro driven cast-in-place piles, surface compaction, deep compaction and cast-in-place thin-walled pile construction; also be used as PHC pile , steel sheet pile and steel casing.
  • Widely used in municipal, water conservancy, construction, bridge, wharf, marine engineering and other pile foundation construction.
  • Steel sheet pile engineering, road and bridge engineering construction, vibration compaction construction, rotary pile driver construction, sinking pipe cast-in-place pile foundation construction, concrete sheet pile construction, offshore pile construction, pile foundation construction in sensitive areas, etc.
  • Wharf, water conservancy dike revetment, retaining wall, retaining wall, breakwater, diversion dike, dock, gate; offshore pile foundation construction, road and bridge engineering, civil construction, municipal engineering, water conservancy engineering, etc.
  • Mountain sealing, temporary bank expansion, cut-off, bridge and cofferdam construction, earth retaining, water retaining and sand retaining for excavation of temporary ditches for large-scale pipeline laying; it can also be used for flood control, collapse prevention and quicksand prevention.



Technical Parameter



Item FV-250 FV-280 FV-300 FV-330 FV-350L FV-350 FV-400
Vibration Frequency (rpm) 2500 2800 3200 3200 3200 3200 3200
Operation Pressure (Mpa) 30 32 32 32 32 32 32
Centrifugal Force (KN) 265 335 350 372 435 455 485
Max.Pile (m) 10 12 12 12 15 15 18
Arm (kg) 500 500 670 670 670 750 750
Hammer  (kg) 1700 1900 2100 2300 2400 2600 2700
Excavator (T) 20-30 20-30 30-35 33-40 35-40 40-45 45-60
