Construction Crane Mounted Vibro Pile Driver Hammer For Excavator

Place of Origin Shanghai, China
Brand Name Electric Vibrating PIle Hammer/Driver
Model Number DZ-90A
Minimum Order Quantity 1
Price Negotiable
Delivery Time 15 work days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model DZ-90A Type Crane Mounted
Product Name Vibro Pile Driver Hammer Vibration Frequency 1050R/MIN
No-load Amplitude 10.3 Mm Total Weight 5670 Kg
High Light

construction vibro pile hammer

,

1050RPM vibro pile driver

,

1050RPM excavator vibro hammer

Leave a Message

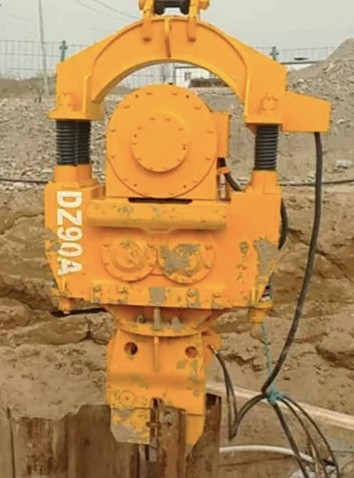

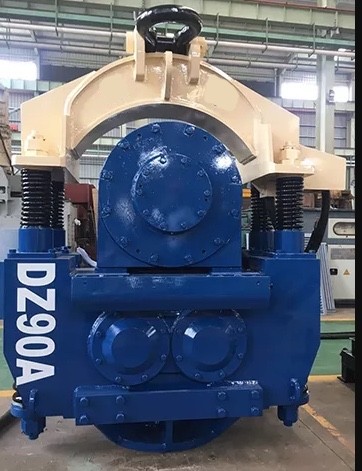

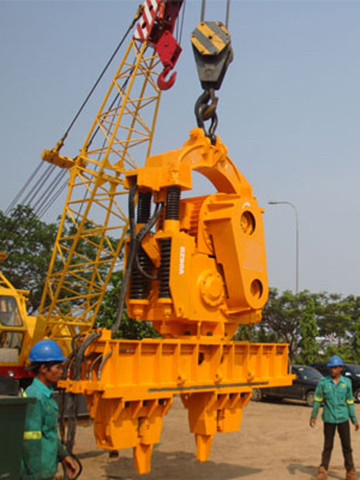

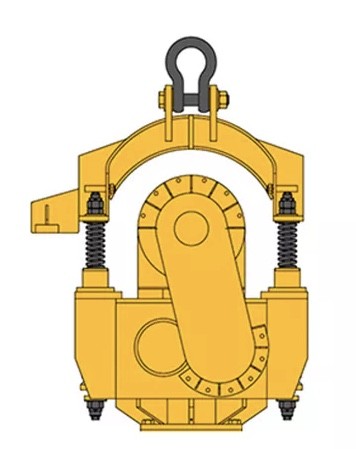

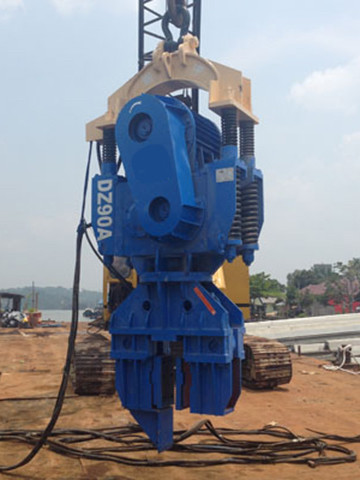

Product Description

Hydraulic vibratory hammers can be used for pile driving and pile pulling, suitable for steel sheet piles, steel pipes, H-shaped piles, precast piles, etc. It is particularly advantageous for offshore projects, where piles can be driven to a predetermined depth and can also be operated underwater.



There are also many options for hydraulic clamps, which can be used to clamp steel sheet piles, steel pipes, H-shaped piles, prefabricated piles and other shapes of piles. The sturdy structure and high-performance hydraulic cylinder make clamping safe and stable. Check valve is equipped to keep the cylinder pressurized in case of hose damage. The hydraulic vibratory hammer can be applied to various geological conditions, and is widely used in the construction of docks, bridges, highways and other foundation constructions.

DZ90A is currently the most widely used pile foundation construction equipment in China.

1. The equipment is designed for low noise, clean and environmentally friendly

2. The gearbox lubricating oil is a heavy-duty gear oil for German Volkswagen, which does not need to be replaced within one year under normal operation

3. The shock-resistant motor is the top domestic brand

4. High-quality after-sales service, our after-sales engineers will provide you with after-sales and technical related services at any time

Product parameter

DZ90A
Motor Power 90 k W
Vibration frequency 1050 R/MIN
Eccentric moment 460 N m
Exciting force 570 k N
No-load amplitude 10.3 mm
Allowable pulling force 240 k N
Dimensions (height × length × width) 2.56 m × 1.53 m × 1.1 m
total weight 5670 kg
Can be equipped with fixture Single fixture / steel pipe fixture
Pile diameter φ 500-1200mm, φ 500-2000mm
Generator power 300 kw
Crawler crane specifications 50 t
