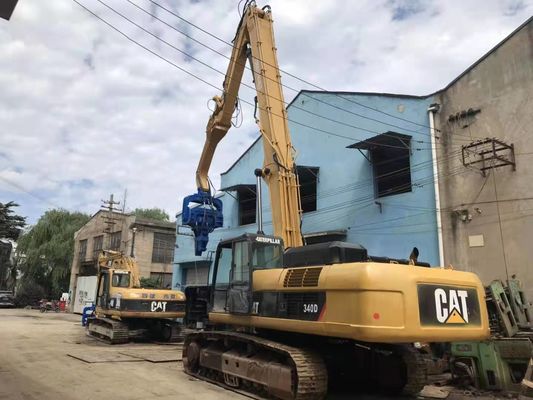

Yellow Color Sheet Pile Driving Machine

Yellow Color Sheet Pile Driving Machine
Yellow Color Sheet Pile Driving Machine

Large Image :  Yellow Color Sheet Pile Driving Machine

Product Details:
Place of Origin: SHANGHAI
Brand Name: VIBRA
Model Number: FV-280
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 17000 to 25000 USD
Packaging Details: 5.09 CBM
Delivery Time: 7-35 days
Payment Terms: L/C, T/T, D/P
Supply Ability: 15 set/month
Detailed Product Description
Name: Hydraulic Sheet Pile Driver Feature: Yellow Color
Vibration Frequency: 3200rpm Operation Pressure: 32Mpa
Arm Weight: 500kg Hammer Weight: 1900kg
Centrifugal Force: 335KN Excavator: 20-30T
Max Pile Length: 12m
High Light:

sheet pile driving equipment


sheet pile installation machine




Our products have bigger capacity of side piling and corner piling than those of other companies.

Our pile drivers can work with a variety of piles, square piles or round piles or other shape of steel piles, no matter thin-walled round concrete piles or thick-walled ones.



  • Driving and pulling steel sheet pile, cement pile, steel rail pile, iron plate, H steel
  • Quick converting operation; Applied to various working environments.
  • Compared to other systems , less force required for pile pulling
  • Not damage the top or bottom of steel pipe pile, steel plate pile and steel rail pile.
  • Not damage the building even often work near it
  • Adopted Rubber sheath to reduce noise and vibration, the operation is quiet and the working period is short;It is helpful to overcome environmental problems.
  • According to the placement direction of sheet pile and site conditions, the sheet pile can be clamped or lowered by positive and negative rotation of 180 °. The vibration frequency can be adjusted by two levels, and the two-level double pumps are combined to greatly increase the excitation force.
  • Hydraulic motor has small volume and light weight, but it can output high power and high speed.
  • Vibration frequency can be adjusted by variable pump. It can be used in excavator operation of any brand, and can meet different work requirements only after changing chucks.

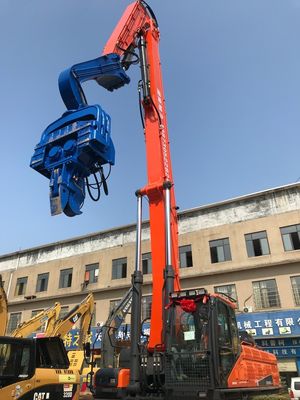

Yellow Color Sheet Pile Driving Machine 0


Technical Parameter


Item FV-250 FV-280 FV-300 FV-330 FV-350L FV-350 FV-400
Vibration Frequency (rpm) 2500 2800 3200 3200 3200 3200 3200
Operation Pressure (Mpa) 30 32 32 32 32 32 32
Centrifugal Force (KN) 265 335 350 372 435 455 485
Max.Pile Length (m) 10 12 12 12 15 15 18
Arm Weight (kg) 500 500 670 670 670 750 750
Hammer Weight (kg) 1700 1900 2100 2300 2400 2600 2700
Excavator (T) 20-30 20-30 30-35 33-40 35-40 40-45 45-60


About Us


Shanghai yekun Machinery Co., Ltd was founded in 2014, A professional company involving in hydraulic vibrating pile driver manufacture, sale and service. Our company take the latest high speed hydraulic vibrating pile driver and its components as the main products. Our products vastly apply for infrastructure & construction industries.


We focus on product quality with the latest industrial technology. The mini hydraulic vibrating pile driver lead the industrial trend. The middle and large hydraulic vibrating pile driver also are highly recognized by our clients. At the same time, we actively cooperated with the engineering machinery factory and construction company to jointly develop more functional professional equipment, and we hired foreign professionals as our technical adviser.


Our company is consisting of a young, enthusiasm professional team. Adhere to client as priority, Quality as first concern, Management as foundation. We are working for the direction to become the most professional and comprehensive hydraulic vibrating pile driver manufacture and service supplier.

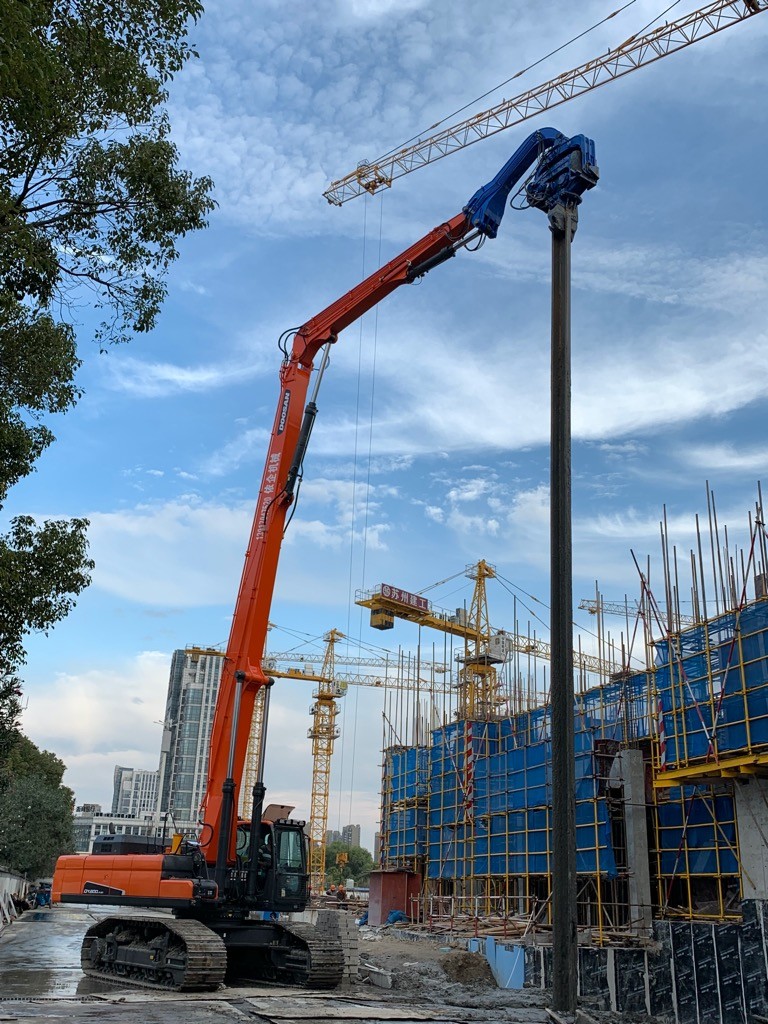

Yellow Color Sheet Pile Driving Machine 1
